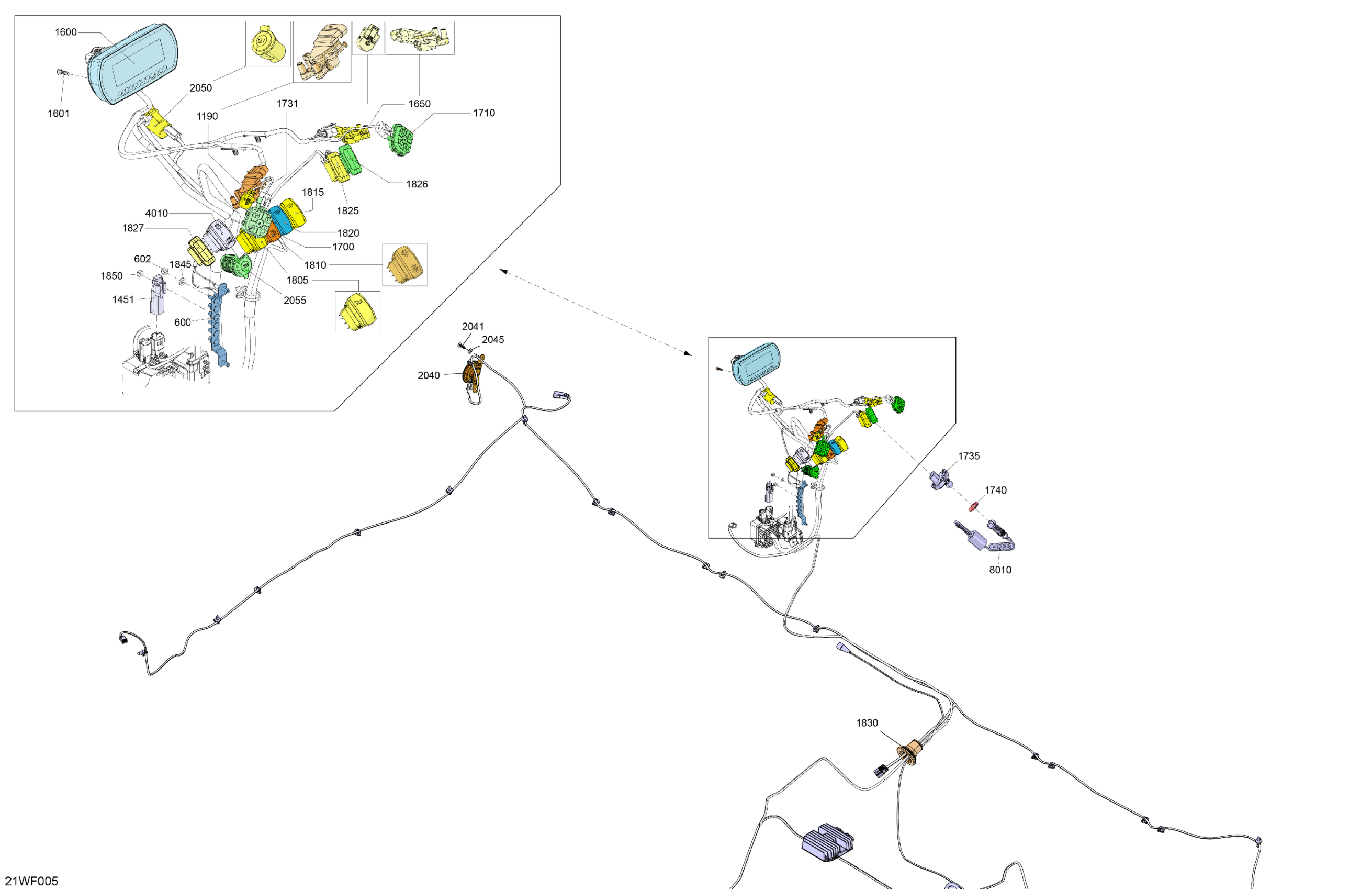

Sea-doo SPORT Compact - 170 - 47TA - Neo Mint - Trailer paint - CAT-NA - 2026 ELECTRIC - Electric Upper Section Diagram

Description

Price

600

Busbar Ass'y

281000234

$32.81

602

Elastic Stop Nut M6, Brass

232561200

$4.03

1190

LH Throttle Sensor

278002284

$108.18

1451

Connector Plug

278003897

$14.42

1601

Hex. Flange Screw K50 X 20

241152060

$1.81

1600

Multifunction Mono Compact Gauge

278003430

$532.06

1650

Throttle Position Sensor

278002283

$104.99

1700

Switch

278003821

$116.39

1710

RH Switch Keypad

278003474

$116.39

1731

Switch Start/Stop This part replaces 278002676.

278002676

Unavailable

1735

Terminal DESS CAN | CARB Vehicle

710008832

$69.37

1740

Specialized Nut

278004274

$3.12

1805

Horn Switch

278003690

$49.22

1810

Nav & Anchor Light Switch

278003691

$35.49

1815

Pump Switch

278003692

$51.46

1820

Vent Switch

278003693

$42.51

1825

Plug

278004279

Unavailable

1826

Plug

278004279

Unavailable

1827

Plug

278004279

Unavailable

1830

Cable Boot

293720134

Unavailable

1845

Stainless Flat Washer M6

234061600

$0.28

1850

Elastic Stop Nut M6, Brass

232561200

$4.03

2040

Horn

278003906

Unavailable

2041

Plastite Torx Screw Cone HD.M6.81X2

250001171

$5.04

2045

Stainless, Flat Washer 8 mm

234081600

$0.52

2050

12V Power Outlet

710005374

$31.31

2055

USB Outlet

219400510

$43.99

4010

Courtesy Light Switch

278003822

Unavailable

8010

Safety Lanyard Ass'y, RFID

278003400

$67.13

8030

Cord Cut Off Switch Tether | Not Shown

278004223

$29.82
