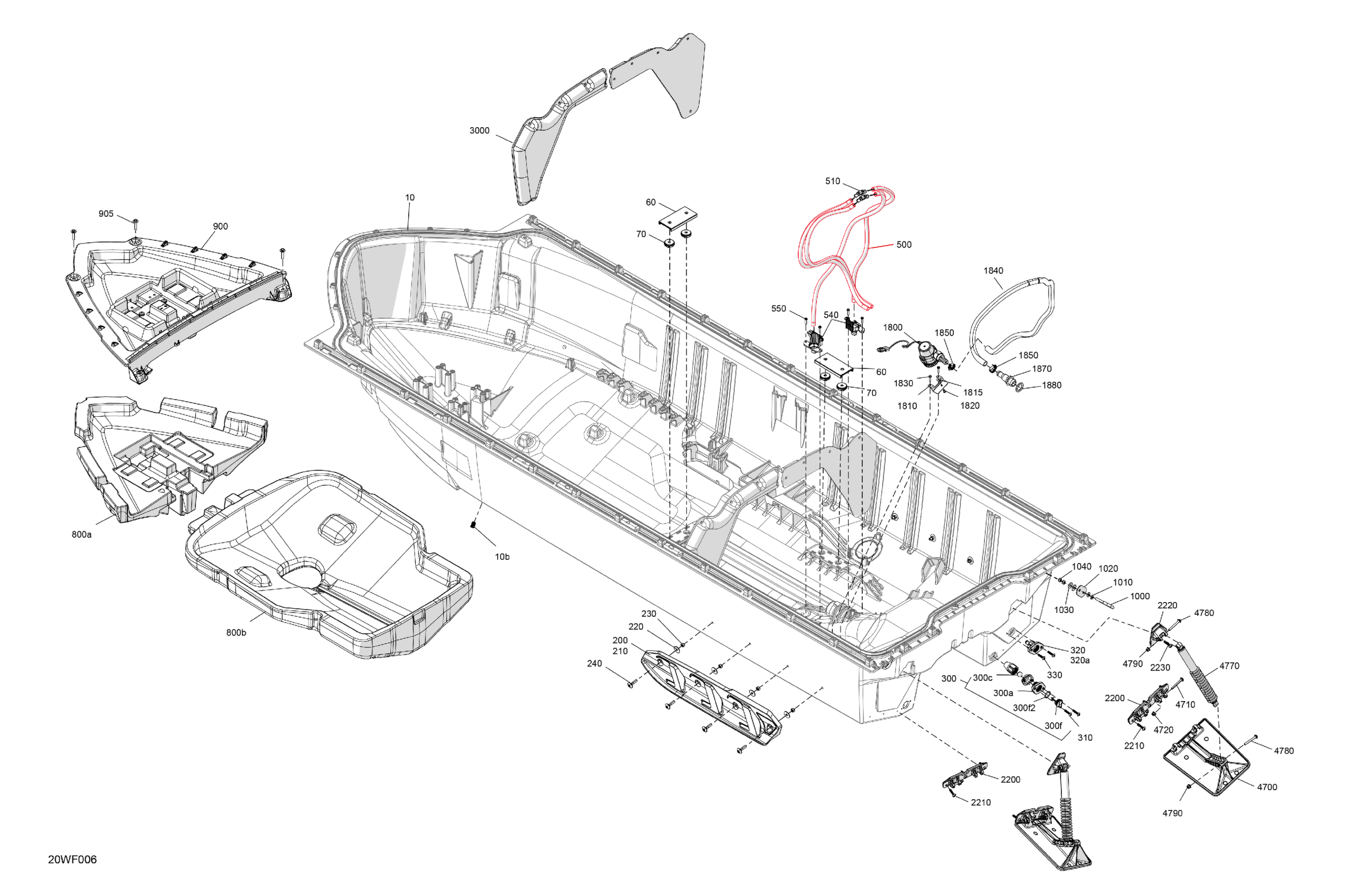

Sea-doo SPORT Compact - 170 - 47TA - Neo Mint - Trailer paint - CAT-NA - 2026 HULL - Hull System Diagram

#

Description
Price

10

Hull Ass'y | Includes 10 to 10b

292002974

$2.00

10b

Brass Insert M6X1

292002565

$6.13

60

Anchorage Support

292002403

$17.49

70

Formed Slot Nut

292002521

$9.80

200

LH Sponson

292001954

$65.99

210

RH Sponson

292001953

$54.99

220

Flat Washer 8 mm, Stainless

250200175

$3.06

230

Hex. Elastic Nut M8 Brass

232581200

$2.22

240

Torx-Head Screw M8 X 35

250001276

$5.92

300

Through Hull Fitting Ass'y | Includes 300 to 300f2

292002766

$15.49

300a

Through Hull Fitting

292002765

$7.79

300c

Floating Ball

293830080

$7.19

300f

Plug Ass'y | Includes 300f to 300f2

292002022

$14.49

300f2

O-Ring

293300067

$1.04

310

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.11

320

Through Hull Fitting Ass'y | Includes 320 to 320a

292002768

$14.49

320a

Through Hull Fitting

292002765

$7.79

330

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.11

500

Hose 11,6 Mm Id X 800

292002962

$10.99

510

Fitting Elbow 90°

293710152

$18.49

540

Pump Support

269800956

$3.39

550

Hex. Screw 10-14 X 7/8”

211000023

$3.59

800a

Lower Front Float

292002336

$219.99

800b

Fuel Tank Float

292002337

$219.99

900

Luggage Compartment Bottom

292002414

$38.99

905

Hexagonal Cap Screw M6 X35

250000399

$4.44

1000

U-Clamp

292000933

$59.49

1010

Flat Washer M8.5 x 18

293050001

$3.07

1020

Retaining Plate

292002612

$7.89

1030

Flat Washer

279000336

$11.57

1040

Hex. Elastic Nut M8 Brass

232581200

$2.22

1800

Bilge Pump

278004010

$98.49

1810

Bilge Pump Support

269801210

$16.49

1815

Flat Washer 5 mm, Stainless

234052600

$0.77

1820

Pop Rivet 3/16"

293150043

$2.09

1830

Hex. Screw 10-14 X 7/8”

211000023

$3.59

1840

Hose 19 Mm Id X 1630

292003274

Unavailable

1850

Tridon Gear Clamp

293650019

$5.82

1870

Fitting

293710162

$13.49

1880

Gasket

292001486

$6.60

2200

Trim Tab Anchor

292002406

$21.99

2210

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.11

2220

Shock Absorber Anchorage

292002389

$13.99

2230

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.11

3000

Acoustic Insulation Panel

292002611

$16.49

4700

Tab Trim

292002388

$18.49

4710

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$4.44

4720

Nut Flange Elastic M6

233261200

$0.99

4770

Shock Absorber Ass'y

269502530

$39.99

4780

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$4.44

4790

Nut Flange Elastic M6

233261200

$0.99
