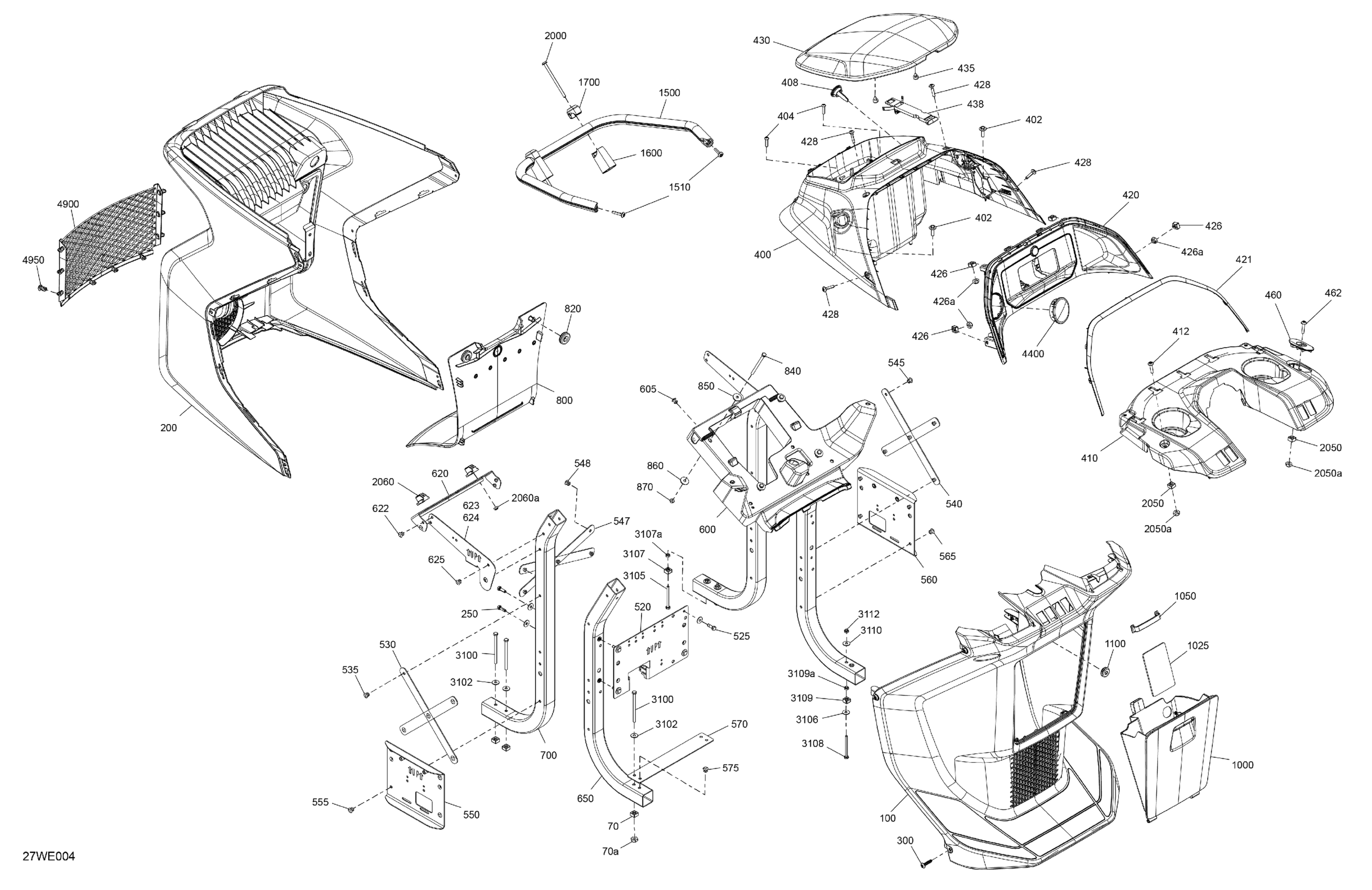

Sea-doo SPORT Compact - 170 - 47SA - Dusty Navy - Trailer Paint - NO CAT - 2025 BODY - Console Diagram

#

Description
Price

70

Nut Housing M6 | Includes 555 to 555b

269502544

$5.07

70a

Elastic Stop Nut M6, Brass

232561200

$4.03

100

Rear Console Panel

281000001

$181.31

200

Front Console Panel

281000002

$181.31

250

Hex Screw M6 X 20

250000965

$2.00

300

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.00

400

Upper Front Console Panel

281000145

Unavailable

402

Hexagonal Cap Screw M6 X 25

250000978

$4.15

404

Torx Screw M6 X 25, Scotch Grip

250000328

$1.67

408

USB Plug

269502324

$2.75

410

Upper Rear Console Panel

281000150

Unavailable

412

Screw-Torx Truss Cone Head M6X25

250001116

$3.90

420

Gauge Support

281000152

Unavailable

421

Console Trim

281000153

Unavailable

426

Nut Housing M6 | Includes 555 to 555b

269502544

$5.07

426a

Elastic Stop Nut M6, Brass

232561200

$4.03

428

Truss Cone Torx Screw M6 X 30

250000924

$7.06

430

Box Cover

281000147

Unavailable

435

Rubber Bumper

293830005

$6.12

438

Lid Latch

281000169

Unavailable

460

Cap

281000158

Unavailable

462

Screw-Torx Truss Cone Head M6X25

250001116

$3.90

520

Rear Reinforcement

281000211

$31.31

525

Hex Screw M6 X 20

250000965

$2.00

530

Lateral Reinforcement

281000058

$5.58

535

Ornit Rivet 6,4 X 15.6

293150284

$4.07

540

Lateral Reinforcement

281000058

$5.58

545

Ornit Rivet 6,4 X 15.6

293150284

$4.07

547

Lateral Reinforcement

281000058

$5.58

548

Ornit Rivet 6,4 X 15.6

293150284

$4.07

550

Amplifier Support Ass'y

281000123

$38.03

555

Ornit Rivet 6,4 X 15.6

293150284

$4.07

560

Amplifier Support Ass'y

281000123

$38.03

565

Ornit Rivet 6,4 X 15.6

293150284

$4.07

570

Rear Lower Reinforcement

281000081

$5.70

575

Ornit Rivet 6,4 X 15.6

293150284

$4.07

600

Steering Colum Reinforcement

281000060

$46.24

605

Ornit Rivet 6,4 X 15.6

293150284

$4.07

620

Hand Rail Reinforcement

281000191

Unavailable

622

Ornit Rivet 6,4 X 15.6

293150284

$4.07

623

LH Reinforcement Ass'y

281000198

Unavailable

624

RH Reinforcement Ass'y

281000199

Unavailable

625

Ornit Rivet 6,4 X 15.6

293150284

$4.07

650

Rear Tube Support Ass'y

281000200

$46.99

700

Front Tube Support Ass'y

281000201

$46.99

800

Access Panel

281000000

$221.61

820

Grommet

517303756

$3.61

840

Hex. Screw M6 X 90

207169060

$4.13

850

Flat Washer M6.6 X 22

250200022

$2.15

860

Flat Washer M6.6 X 22

250200022

$2.15

870

Elastic Stop Nut M6, Brass

232561200

$4.03

1000

Storage Box Service Kit

295101093

Unavailable

1025

Self Adhesive Protective Foam

281000110

$2.69

1050

Elastic Strip

281000155

$11.81

1100

Grommet

517307161

$2.55

1500

Console Hand Rail

281000149

Unavailable

1510

Cone Torx Truss Screw HD.M6 X 30

250001146

$3.66

1600

Front Lower Hand Rail Anchorage

281000195

Unavailable

1700

Front Upper Hand Rail Anchorage

281000048

$5.90

2000

Cone Torx Truss Screw HD.M6 X 100

250001163

$3.66

2050

Nut Housing M6 | Includes 555 to 555b

269502544

$5.07

2050a

Elastic Stop Nut M6, Brass

232561200

$4.03

2060

Nut Housing M6 | Includes 2060 to 2060a

281000178

Unavailable

2060a

Elastic Stop Nut M6, Brass

232561200

$4.03

3100

Hex. Screw M6 X 90

207169060

$4.13

3102

Flat Washer M6, Stainless

234062600

$0.73

3105

Hex. Screw M6 X 65

207166560

$2.63

3106

Flat Washer M6, Stainless

234062600

$0.73

3107

Nut Housing M6 | Includes 555 to 555b

269502544

$5.07

3107a

Elastic Stop Nut M6, Brass

232561200

$4.03

3108

Hex. Screw M6 X 65

207166560

$2.63

3109

Nut Housing M6 | Includes 555 to 555b

269502544

$5.07

3109a

Elastic Stop Nut M6, Brass

232561200

$4.03

3110

Flat Washer M6, Stainless

234062600

$0.73

3112

Elastic Stop Nut M6, Brass

232561200

$4.03

4400

Cap

281000216

Unavailable

4900

Net Ass'y

281000156

$89.52

4950

Tuflok Plastic Rivet

293150230

$1.39
