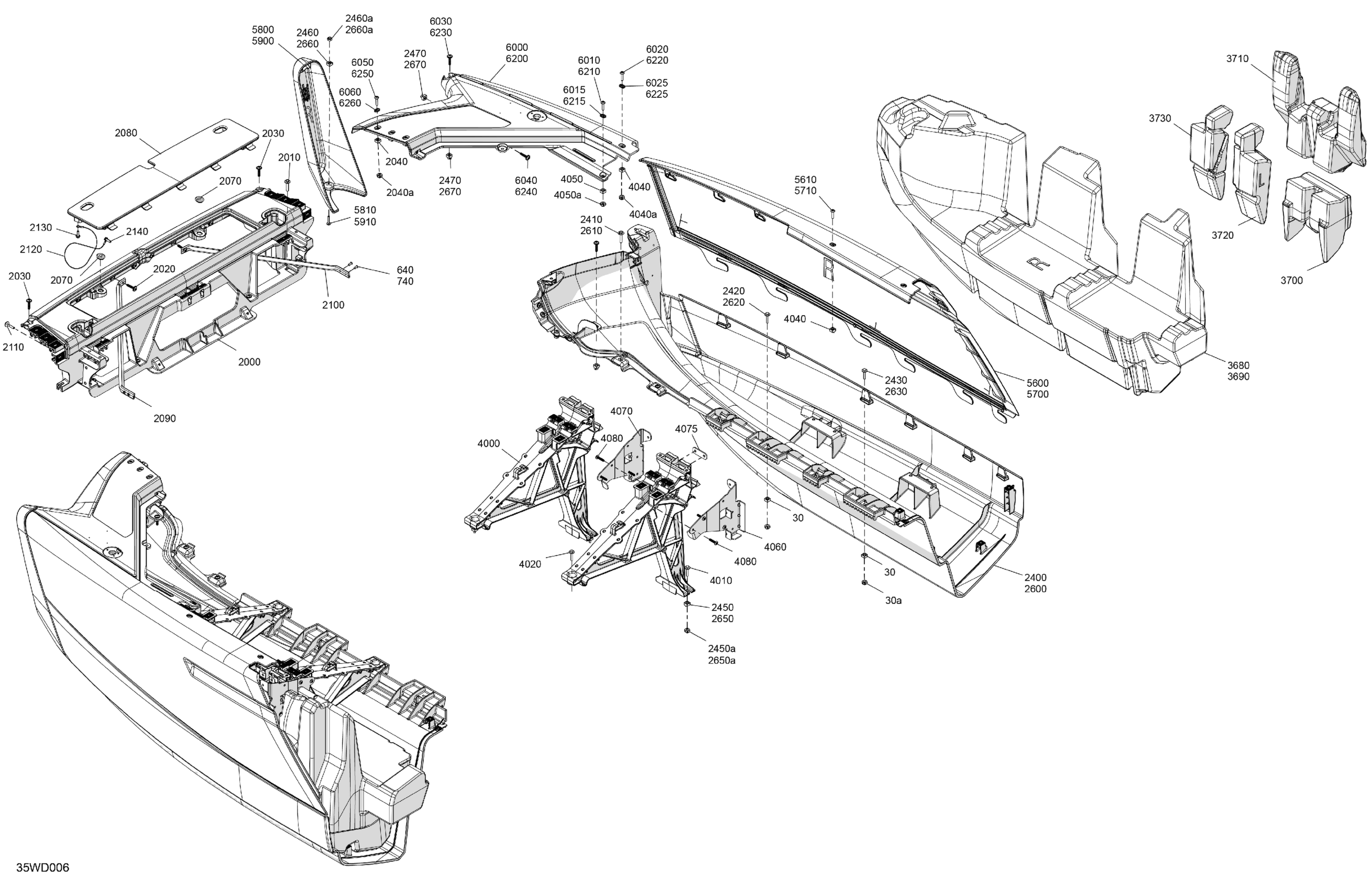

Sea-doo SPORT Compact - 170 - 47RA - Blue - Trailer Paint - NO CAT, 2024 HULL - Front Deflector Float and Front Bumper Diagram

#

Description
Price

30

Nut Housing M6 | Includes 555 to 555b

269502544

$5.07

30a

Elastic Stop Nut M6, Brass

232561200

$4.03

640

Pop Rivet 3/16"

293150039

$1.31

740

Pop Rivet 3/16"

293150039

$1.31

2000

Deflector Trim

291006267

Unavailable

2010

Hexagonal Cap Screw M6 X35

250000399

$4.15

2020

Sems Plastite Torx Screw M6.81X35

250001152

$4.45

2030

Sems Plastite Torx Screw M6.81X35

250001152

$4.45

2040

Nut Housing M6 | Includes 555 to 555b

269502544

$5.07

2040a

Elastic Stop Nut M6, Brass

232561200

$4.03

2070

Oval Washer

705000321

$5.33

2080

Access Cover

291005403

Unavailable

2090

LH Trim Reinforcement

291005632

Unavailable

2100

RH Trim Reinforcement

291005640

Unavailable

2110

Hex SEMS Screw M6X30

250001164

Unavailable

2120

Retaining Cable

291005711

Unavailable

2130

Hex. Flange Screw M6.81 x 20

243162060

$3.79

2140

Hex. Flange Screw M6.81 x 20

243162060

$3.79

2400

LH Front Deflector Float

291004839

Unavailable

2410

Hexagonal Cap Screw M6 X35

250000399

$4.15

2420

Hex Screw SEMS M6X35, SS

250000969

$2.00

2430

Hex Screw SEMS M6X35, SS

250000969

$2.00

2450

Nut Housing M6 | Includes 555 to 555b

269502544

$5.07

2450a

Elastic Stop Nut M6, Brass

232561200

$4.03

2460

Nut Housing M6 | Includes 555 to 555b

269502544

$5.07

2460a

Elastic Stop Nut M6, Brass

232561200

$4.03

2470

Platite Insert 6.81

291005889

Unavailable

2600

RH Float Deflector

291006413

$992.51

2610

Hexagonal Cap Screw M6 X35

250000399

$4.15

2620

Hex Screw SEMS M6X35, SS

250000969

$2.00

2630

Hex Screw SEMS M6X35, SS

250000969

$2.00

2650

Nut Housing M6 | Includes 555 to 555b

269502544

$5.07

2650a

Elastic Stop Nut M6, Brass

232561200

$4.03

2660

Nut Housing M6 | Includes 555 to 555b

269502544

$5.07

2660a

Elastic Stop Nut M6, Brass

232561200

$4.03

2670

Platite Insert 6.81

291005889

Unavailable

3680

LH Front Float

292002789

$295.49

3690

RH Front Float

292002790

$295.49

3700

Lower Float Support

291005639

Unavailable

3710

Upper Float Support

291005845

Unavailable

3720

LH Float Support

291005637

Unavailable

3730

RH Float Support

291005636

Unavailable

4000

Interlocking Tile Support

291004895

Unavailable

4010

Hex Screw SEMS M6X35, SS

250000969

$2.00

4020

Hex Screw SEMS M6X35, SS

250000969

$2.00

4040

Nut Housing M6 | Includes 555 to 555b

269502544

$5.07

4040a

Elastic Stop Nut M6, Brass

232561200

$4.03

4050

Nut Housing M6 | Includes 555 to 555b

269502544

$5.07

4050a

Elastic Stop Nut M6, Brass

232561200

$4.03

4060

Reinforcement Support

291006168

$67.88

4070

Reinforcement Support

291006169

$67.88

4075

Connecting Plate

291005950

Unavailable

4080

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.00

5600

Dusty Navy, LH Front Panel

291006173

Unavailable

5610

Screw-Torx Truss Cone Head M6X25

250001116

$3.90

5700

Dusty Navy, RH Front Panel

291006174

Unavailable

5710

Screw-Torx Truss Cone Head M6X25

250001116

$3.90

5800

LH Front Bumper

291005101

Unavailable

5810

Hex. Flange Screw M6 X 60

207666044

$1.40

5900

RH Front Bumper

291005102

Unavailable

5910

Hex. Flange Screw M6 X 60

207666044

$1.40

6000

Dusty Navy, LH Front Panel Trim

291006175

Unavailable

6010

Screw-Torx Truss Cone Head M6X25

250001116

$3.90

6015

Oval Washer

291003880

$1.36

6020

Screw-Torx Truss Cone Head M6X25

250001116

$3.90

6025

Oval Washer

291003880

$1.36

6030

Sems Plastite Torx Screw M6.81X35

250001152

$4.45

6040

Sems Plastite Torx Screw M6.81X35

250001152

$4.45

6050

Screw-Torx Truss Cone Head M6X25

250001116

$3.90

6060

Oval Washer

291003880

$1.36

6200

Dusty Navy, RH Front Panel Trim

291006176

Unavailable

6210

Screw-Torx Truss Cone Head M6X25

250001116

$3.90

6215

Oval Washer

291003880

$1.36

6220

Screw-Torx Truss Cone Head M6X25

250001116

$3.90

6225

Oval Washer

291003880

$1.36

6230

Sems Plastite Torx Screw M6.81X35

250001152

$4.45

6240

Sems Plastite Torx Screw M6.81X35

250001152

$4.45

6250

Screw-Torx Truss Cone Head M6X25

250001116

$3.90

6260

Oval Washer

291003880

$1.36
