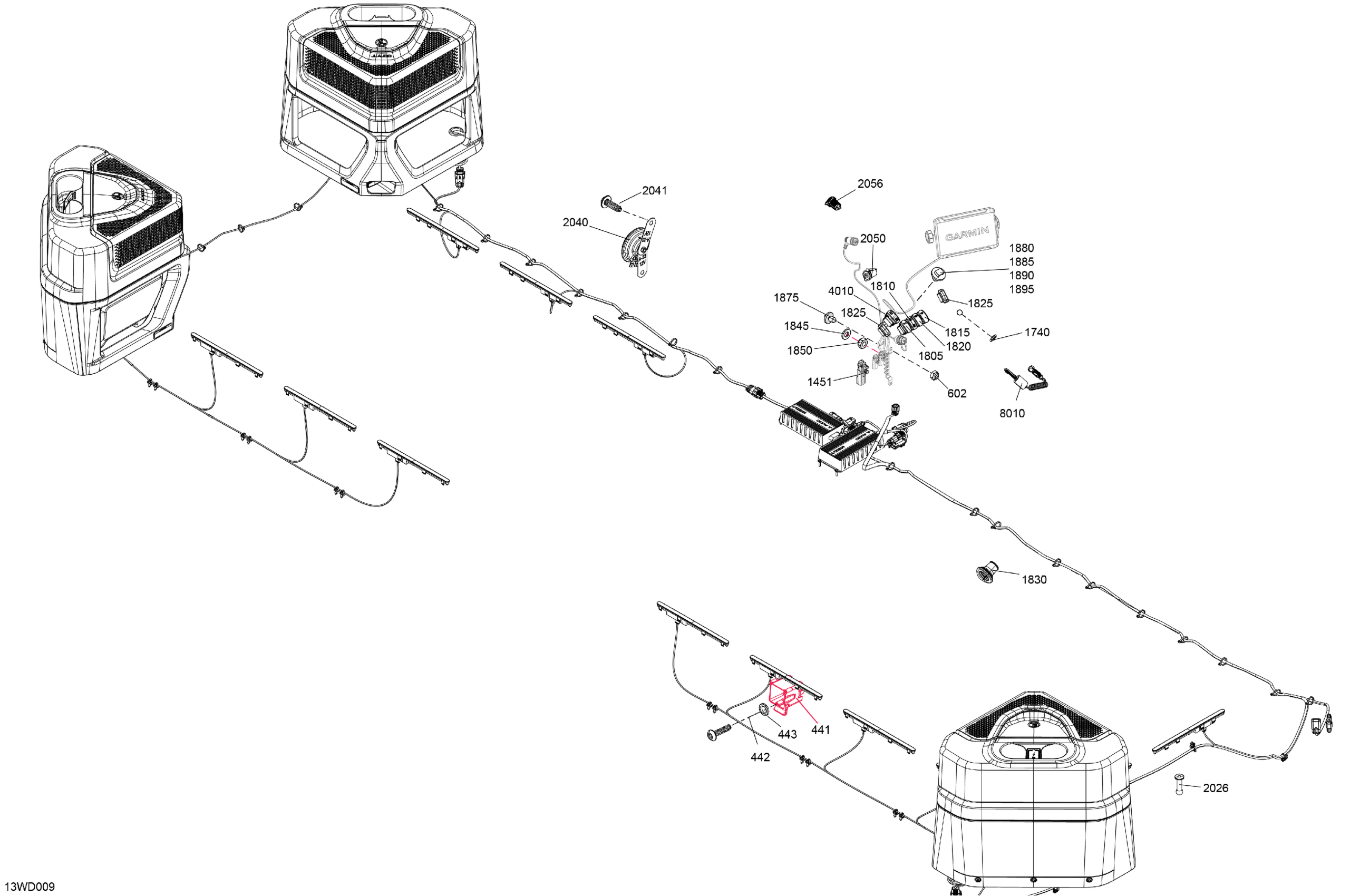

Sea-doo SPORT Compact - 170 - 47RA - Blue - Trailer Paint - NO CAT, 2024 MECHANICS - Electric - Upper Section Diagram

Description

Price

441

Switch Support

278004308

$14.27

442

Plastite Screw Torx Cone HD.M6.81X3

250001138

$1.61

443

Sealing Washer

250200114

$3.61

602

Elastic Stop Nut M6, Brass

232561200

$3.51

1451

Connector Plug

278003897

$15.35

1601

Hex. Flange Screw K50 X 20

241152060

$1.57

1740

Specialized Nut

278004274

$2.72

1805

Horn Switch

278003690

$50.74

1810

Nav & Anchor Light Switch

278003691

$32.28

1815

Pump Switch

278003692

$55.35

1820

Vent Switch

278003693

$46.12

1825

Plug

278004279

Unavailable

1830

Cable Boot

293720134

Unavailable

1845

Stainless Flat Washer M6

234061600

$0.25

1850

Elastic Stop Nut M6, Brass

232561200

$3.51

1875

Mount Dart

710008294

$1.02

1880

Mount Dart

710008294

$1.02

1885

Mount Dart

710008294

$1.02

1890

Mount Dart

710008294

$1.02

1895

Mount Dart

710008294

$1.02

2001

Anchorage Tie Wrap

293750103

$4.60

2026

Pop Rivet 3/16"

293150005

$0.40

2040

Horn

278003906

Unavailable

2041

Plastite Torx Screw Cone HD.M6.81X2

250001171

$4.39

2045

Stainless, Flat Washer 8 mm

234081600

$0.46

2050

12V Power Outlet

710005374

$27.27

2056

USB Outlet

219400510

$40.92

4010

Courtesy Light Switch

278003822

Unavailable

8010

Safety Lanyard Ass'y, RFID

278003400

$58.47

8030

Cord Cut Off Switch Tether | Not Shown

278004223

$25.97
