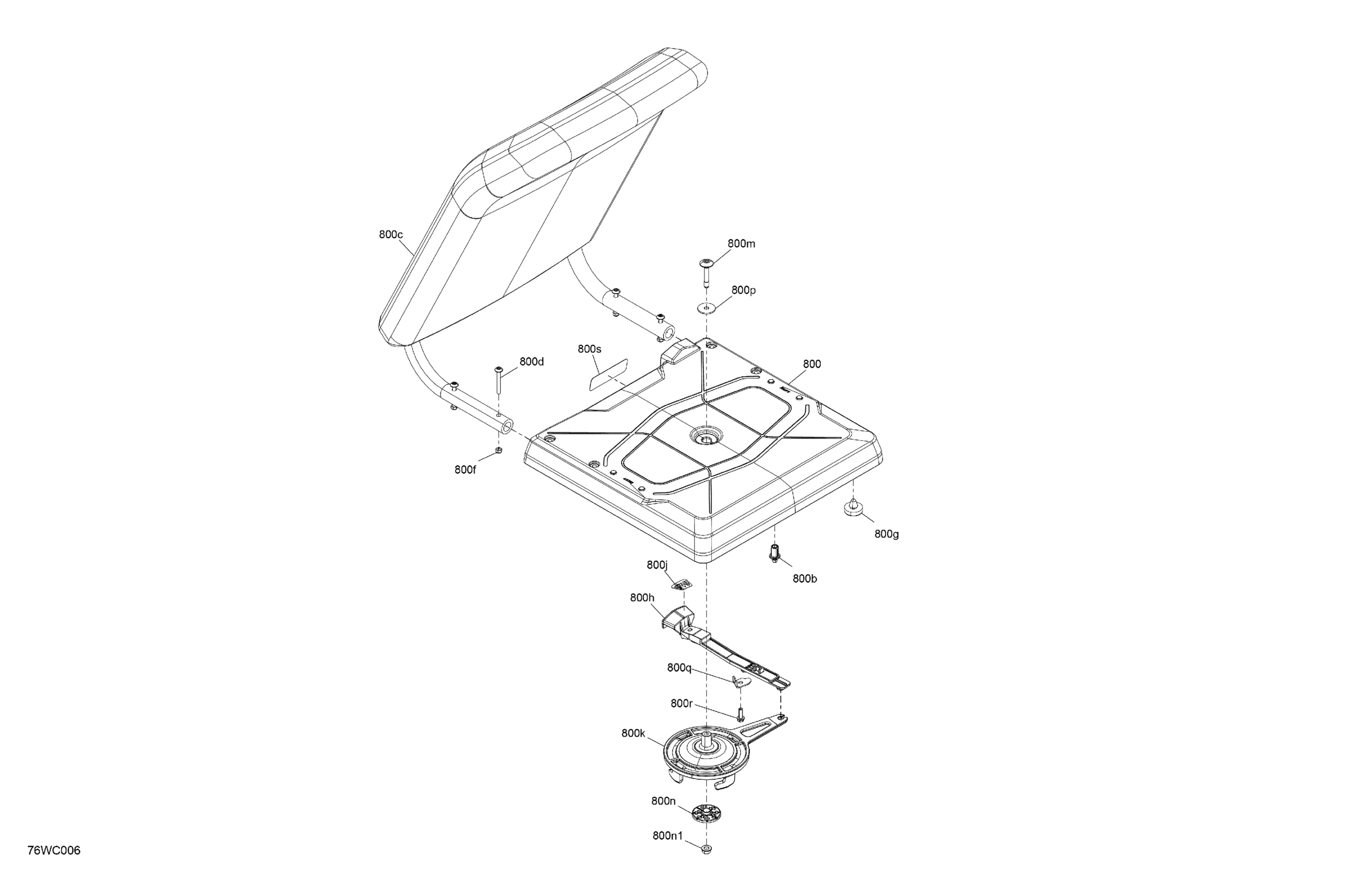

Sea-doo SPORT Compact - 170 - 47PA - Blue - Trailer Paint - NO CAT, 2023 HELM - Inclined Backrest Diagram

Description

Price

800

Seat Back Support Service Kit

295101130

Unavailable

800b

Locator Rod

269003492

$5.40

800c

Backrest Ass'y

269003693

$608.18

800d

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$3.82

800f

Hex. Elastic Stop Nut M6

232561600

$1.06

800g

Rubber Stopper

269003502

$6.18

800h

Lever Latch Service Kit

295101126

Unavailable

800j

Lever Decal

219905993

Unavailable

800k

Seat Anchorage

269003311

$16.39

800m

Torx Head M8 X 50 S.GRIP

250001154

$10.10

800n

Housing Nut M8 | Includes 400a1m to 400a1m1

293450387

$6.58

800n1

Hex. Flange Nut M8

233181600

$0.99

800p

Flat Washer 8 mm

250200130

$3.00

800q

Guide

269003887

$9.70

800r

Hex. Flange Screw M6.81 x 20

243162060

$3.79

800s

Seat Anchorage Warning Label

219905883

Unavailable
