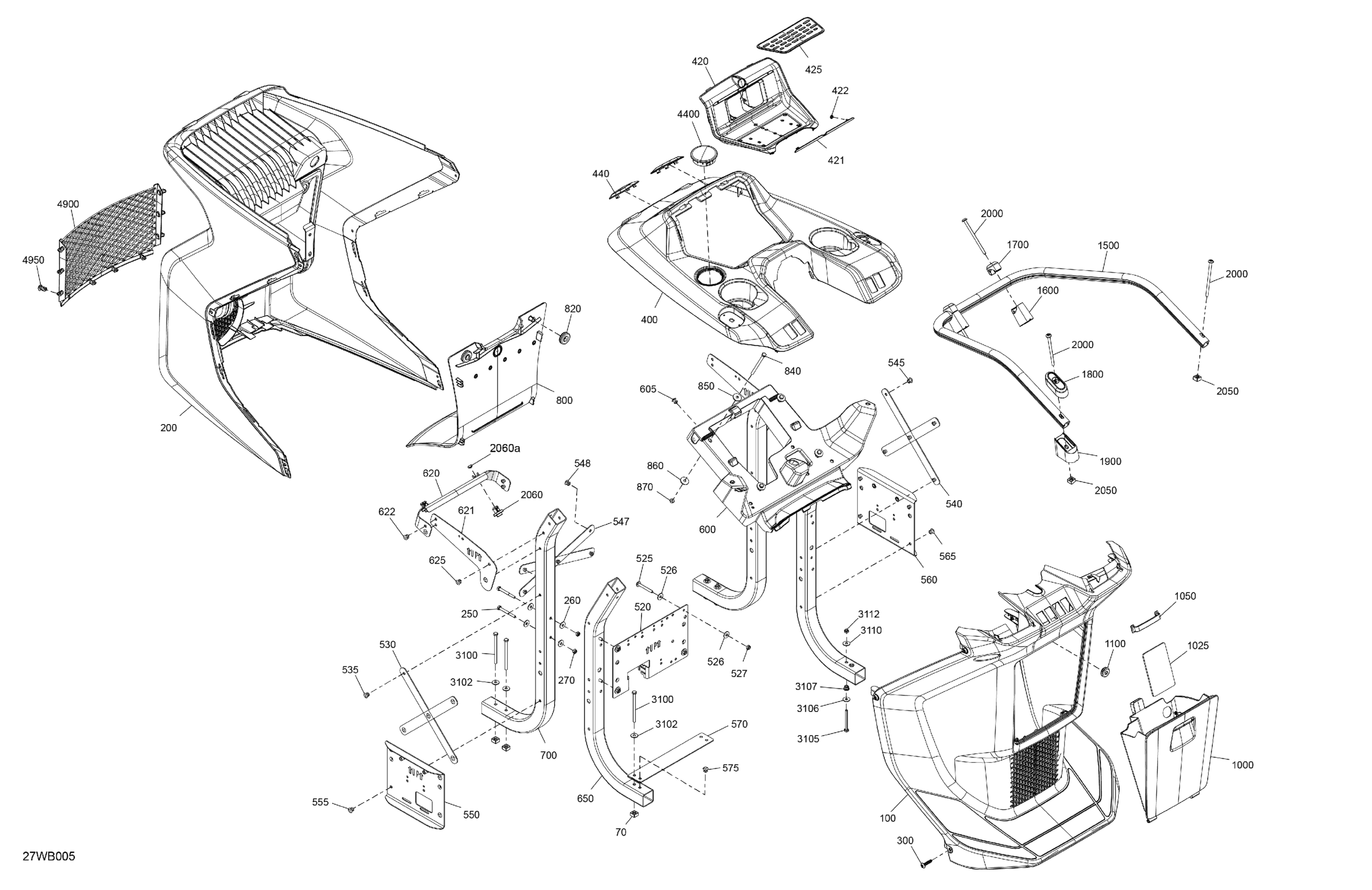

Sea-doo SPORT Compact - 170 - 45NA - Blue - CAT 2A, 2022 HELM - Console Diagram

#

Description
Price

70

Nut Housing M6 | Includes 555 to 555b

269502544

$5.07

100

Rear Console Panel

281000001

$181.31

200

Front Console Panel

281000002

$181.31

250

Hex. Screw M6 x 55

207065560

$0.96

260

Flat Washer M6, Stainless

234062600

$0.73

270

Elastic Stop Nut M6, Brass

232561200

$4.03

300

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.00

400

Upper Console Panel

281000004

$54.45

420

Gauge Support

281000037

$38.78

421

Iceland Grey, Upper Gauge Trim

281000127

$5.51

422

Push Nut

250100206

$0.96

425

Soft Gauge Trim

281000146

$17.13

440

Windshield Trim

281000082

$32.06

520

Rear Reinforcement

281000211

$31.31

525

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$3.82

526

Flat Washer M6, Stainless

234062600

$0.73

527

Elastic Stop Nut M6, Brass

232561200

$4.03

530

Lateral Reinforcement

281000058

$5.58

535

Ornit Rivet 6,4 X 15.6

293150284

$4.07

540

Lateral Reinforcement

281000058

$5.58

545

Ornit Rivet 6,4 X 15.6

293150284

$4.07

547

Lateral Reinforcement

281000058

$5.58

548

Ornit Rivet 6,4 X 15.6

293150284

$4.07

550

Amplifier Support Ass'y

281000123

$38.03

555

Ornit Rivet 6,4 X 15.6

293150284

$4.07

560

Amplifier Support Ass'y

281000123

$38.03

565

Ornit Rivet 6,4 X 15.6

293150284

$4.07

570

Rear Lower Reinforcement

281000081

$5.70

575

Ornit Rivet 6,4 X 15.6

293150284

$4.07

600

Steering Colum Reinforcement

281000060

$46.24

605

Ornit Rivet 6,4 X 15.6

293150284

$4.07

620

Hand Rail Reinforcement

281000103

$31.31

621

Lateral Reinforcement

281000125

$12.18

622

Ornit Rivet 6,4 X 15.6

293150284

$4.07

625

Ornit Rivet 6,4 X 15.6

293150284

$4.07

650

Rear Tube Support Ass'y

281000200

$46.99

700

Front Tube Support Ass'y

281000201

$46.99

800

Access Panel

281000000

$221.61

820

Grommet

517303756

$3.61

840

Hex. Screw M6 X 90

207169060

$4.13

850

Flat Washer M6.6 X 22

250200022

$2.15

860

Flat Washer M6.6 X 22

250200022

$2.15

870

Elastic Stop Nut M6, Brass

232561200

$4.03

1000

Storage Box Service Kit

295101093

Unavailable

1025

Self Adhesive Protective Foam

281000110

$2.69

1050

Elastic Strip

281000155

$11.81

1100

Grommet

517307161

$2.55

1500

Console Hand Rail

281000024

$216.39

1600

Front Lower Hand Rail Anchorage

281000047

$5.90

1700

Front Upper Hand Rail Anchorage

281000048

$5.90

1800

Rear Upper Hand Rail Anchorage

281000049

$5.90

1900

Rear Lower Hand Rail Anchorage

281000112

$13.28

2000

Cone Torx Truss Screw HD.M6 X 100

250001163

$3.66

2050

Nut Housing M6 | Includes 555 to 555b

269502544

$5.07

2060

Housing Nut Overmolded | Includes 2060 to 2060a

291004662

$1.85

2060a

Elastic Stop Nut M6, Brass

232561200

$4.03

3100

Hex. Screw M6 X 90

207169060

$4.13

3102

Flat Washer M6, Stainless

234062600

$0.73

3105

Hex. Cap Screw

207166060

$3.58

3106

Flat Washer M6, Stainless

234062600

$0.73

3107

Nut Flange Elastic M6

233261200

$0.94

3110

Flat Washer M6, Stainless

234062600

$0.73

3112

Elastic Stop Nut M6, Brass

232561200

$4.03

4400

Cap

281000077

$16.39

4900

Net Ass'y

281000156

$89.52

4950

Tuflok Plastic Rivet

293150230

$1.39
