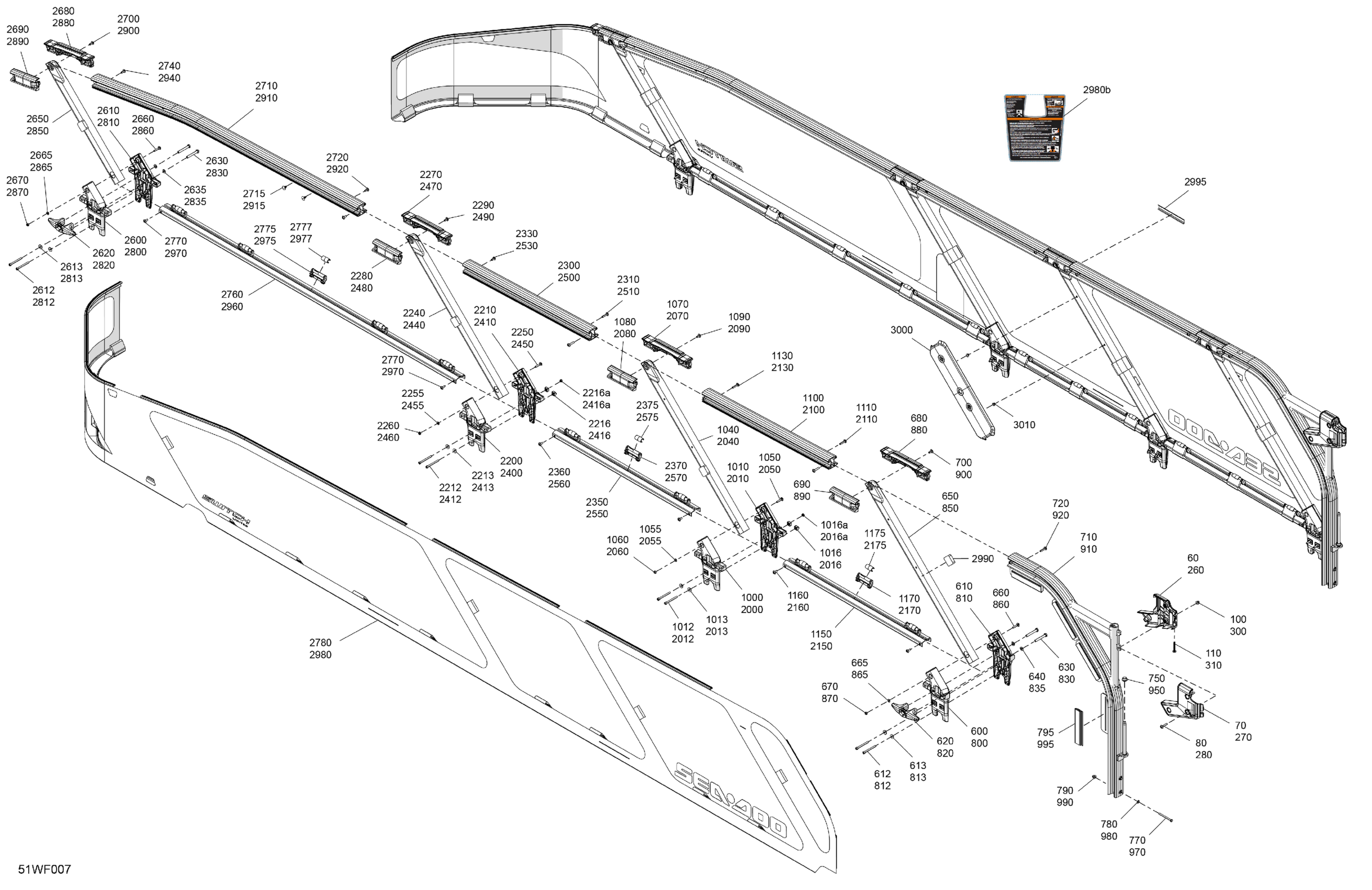

Sea-doo SPORT 21 - 300 - 49TC - Neo Mint - Trailer Galv - CAT-1-30-101 - 2026 GUARD RAILS - System Assembly Diagram

#

Description
Price

60

Lava Gray, RH Rear Door Hinge

281300327

$28.99

70

Lava Gray, LH Rear Door Hinge

281300228

$28.99

80

Truss Cone Torx Screw M6 X 30

250000924

$7.51

100

Nut Flange Elastic M6

233261200

$0.99

110

Plastite Torx Screw Cone HD. M6.81X4

250001191

$4.61

260

Lava Gray, RH Rear Door Hinge

281300327

$28.99

270

Lava Gray, LH Rear Door Hinge

281300228

$28.99

280

Truss Cone Torx Screw M6 X 30

250000924

$7.51

300

Nut Flange Elastic M6

233261200

$0.99

310

Plastite Torx Screw Cone HD. M6.81X4

250001191

$4.61

600

LH Rear Rail Support

281300439

$39.99

610

RH Rear Rail Support

281300441

$39.99

612

Socket Head Screw M6 X 65

205066560

$1.90

613

Flat Washer M6, Stainless

234062600

$0.77

620

Cleat

291005668

$26.99

630

Hex. Screw M8 X 60, Scotch Grip

250000187

$4.44

640

Stainless, Flat Washer 8 mm

234081600

$0.55

650

Rear Profiled Tube

281300172

$104.99

660

Truss Cone Torx Screw M6 X 30

250000924

$7.51

665

Stainless Flat Washer M6

234061600

$0.33

670

Elastic Stop Nut M6, Brass

232561200

$4.23

680

Interior End Piece

281300244

$30.99

690

Exterior Cover

281300247

$25.99

700

Cone Torx Truss Screw HD.M6 X 15

250001147

$3.70

710

LH Rear Guard Rail

281300171

$219.99

720

Cone Torx Truss Screw HD.M6 X 30

250001146

$3.91

750

Venturi Bushing

293900007

$5.45

770

Hex. Screw M6 X 70

207067060

$5.61

780

Stainless Flat Washer M6

234061600

$0.33

790

Nut Flange Elastic M6

233261200

$0.99

795

Balustrade Support

281300707

$9.79

800

LH Rear Rail Support

281300439

$39.99

810

RH Rear Rail Support

281300441

$39.99

812

Socket Head Screw M6 X 65

205066560

$1.90

813

Flat Washer M6, Stainless

234062600

$0.77

820

Cleat

291005668

$26.99

830

Hex. Screw M8 X 60, Scotch Grip

250000187

$4.44

835

Stainless, Flat Washer 8 mm

234081600

$0.55

850

Rear Profiled Tube

281300172

$104.99

860

Truss Cone Torx Screw M6 X 30

250000924

$7.51

865

Stainless Flat Washer M6

234061600

$0.33

870

Elastic Stop Nut M6, Brass

232561200

$4.23

880

Interior End Piece

281300244

$30.99

890

Exterior Cover

281300247

$25.99

900

Cone Torx Truss Screw HD.M6 X 15

250001147

$3.70

910

RH Rear Guard Rail

281300740

$224.99

920

Cone Torx Truss Screw HD.M6 X 30

250001146

$3.91

950

Venturi Bushing

293900007

$5.45

970

Hex. Screw M6 X 70

207067060

$5.61

980

Stainless Flat Washer M6

234061600

$0.33

990

Nut Flange Elastic M6

233261200

$0.99

995

Balustrade Support

281300707

$9.79

1000

LH Rail Support

281300241

$39.99

1010

RH Rail Support

281300237

$39.99

1012

Socket Head Screw M6 X 65

205066560

$1.90

1013

Flat Washer M6, Stainless

234062600

$0.77

1016

Nut Housing M6 | Includes 555 to 555b

269502544

$6.53

1016a

Elastic Stop Nut M6, Brass

232561200

$4.23

1040

Central Profiled Tube

281300180

$39.99

1050

Truss Cone Torx Screw M6 X 30

250000924

$7.51

1055

Stainless Flat Washer M6

234061600

$0.33

1060

Elastic Stop Nut M6, Brass

232561200

$4.23

1070

Interior End Piece

281300244

$30.99

1080

Exterior Cover

281300247

$25.99

1090

Cone Torx Truss Screw HD.M6 X 15

250001147

$3.70

1100

Lateral Hand Rail

281300190

$224.99

1110

Cone Torx Truss Screw HD.M6 X 30

250001146

$3.91

1130

Cone Torx Truss Screw HD.M6 X 30

250001146

$3.91

1150

Lower Rear Profile Tube

281300176

$104.99

1160

Cone Torx Truss Screw HD.M6 X 15

250001147

$3.70

1170

Balustrade Anchor

281300589

$7.59

1175

Balustrade Fastener

281300597

$3.59

2000

LH Rail Support

281300241

$39.99

2010

RH Rail Support

281300237

$39.99

2012

Socket Head Screw M6 X 65

205066560

$1.90

2013

Flat Washer M6, Stainless

234062600

$0.77

2016

Nut Housing M6 | Includes 555 to 555b

269502544

$6.53

2016a

Elastic Stop Nut M6, Brass

232561200

$4.23

2040

Central Profiled Tube

281300180

$39.99

2050

Truss Cone Torx Screw M6 X 30

250000924

$7.51

2055

Stainless Flat Washer M6

234061600

$0.33

2060

Elastic Stop Nut M6, Brass

232561200

$4.23

2070

Interior End Piece

281300244

$30.99

2080

Exterior Cover

281300247

$25.99

2090

Cone Torx Truss Screw HD.M6 X 15

250001147

$3.70

2100

Lateral Hand Rail

281300190

$224.99

2110

Cone Torx Truss Screw HD.M6 X 30

250001146

$3.91

2130

Cone Torx Truss Screw HD.M6 X 30

250001146

$3.91

2150

Lower Rear Profile Tube

281300176

$104.99

2160

Cone Torx Truss Screw HD.M6 X 15

250001147

$3.70

2170

Balustrade Anchor

281300589

$7.59

2175

Balustrade Fastener

281300597

$3.59

2200

LH Rail Support

281300241

$39.99

2210

RH Rail Support

281300237

$39.99

2212

Socket Head Screw M6 X 65

205066560

$1.90

2213

Flat Washer M6, Stainless

234062600

$0.77

2216

Nut Housing M6 | Includes 555 to 555b

269502544

$6.53

2216a

Elastic Stop Nut M6, Brass

232561200

$4.23

2240

Central Profiled Tube

281300307

$39.99

2250

Truss Cone Torx Screw M6 X 30

250000924

$7.51

2255

Stainless Flat Washer M6

234061600

$0.33

2260

Elastic Stop Nut M6, Brass

232561200

$4.23

2270

Interior End Piece

281300244

$30.99

2280

Exterior Cover

281300247

$25.99

2290

Cone Torx Truss Screw HD.M6 X 15

250001147

$3.70

2300

Lateral Hand Rail

281300190

$224.99

2310

Cone Torx Truss Screw HD.M6 X 30

250001146

$3.91

2330

Cone Torx Truss Screw HD.M6 X 15

250001147

$3.70

2350

Lower Rear Profile Tube

281300176

$104.99

2360

Cone Torx Truss Screw HD.M6 X 15

250001147

$3.70

2370

Balustrade Anchor

281300589

$7.59

2375

Balustrade Fastener

281300597

$3.59

2400

LH Rail Support

281300241

$39.99

2410

RH Rail Support

281300237

$39.99

2412

Socket Head Screw M6 X 65

205066560

$1.90

2413

Flat Washer M6, Stainless

234062600

$0.77

2416

Nut Housing M6 | Includes 555 to 555b

269502544

$6.53

2416a

Elastic Stop Nut M6, Brass

232561200

$4.23

2440

Central Profiled Tube

281300307

$39.99

2450

Truss Cone Torx Screw M6 X 30

250000924

$7.51

2455

Stainless Flat Washer M6

234061600

$0.33

2460

Elastic Stop Nut M6, Brass

232561200

$4.23

2470

Interior End Piece

281300244

$30.99

2480

Exterior Cover

281300247

$25.99

2490

Cone Torx Truss Screw HD.M6 X 15

250001147

$3.70

2500

Lateral Hand Rail

281300190

$224.99

2510

Cone Torx Truss Screw HD.M6 X 30

250001146

$3.91

2530

Cone Torx Truss Screw HD.M6 X 15

250001147

$3.70

2550

Lower Rear Profile Tube

281300176

$104.99

2560

Cone Torx Truss Screw HD.M6 X 15

250001147

$3.70

2570

Balustrade Anchor

281300589

$7.59

2575

Balustrade Fastener

281300597

$3.59

2600

LH Rail Support

281300241

$39.99

2610

RH Rail Support

281300237

$39.99

2612

Socket Head Screw M6 X 65

205066560

$1.90

2613

Flat Washer M6, Stainless

234062600

$0.77

2620

Cleat

291005668

$26.99

2630

Hex. Screw M8 X 60, Scotch Grip

250000187

$4.44

2635

Stainless, Flat Washer 8 mm

234081600

$0.55

2650

Front Profiled Tube

281300182

$39.99

2660

Truss Cone Torx Screw M6 X 30

250000924

$7.51

2665

Stainless Flat Washer M6

234061600

$0.33

2670

Elastic Stop Nut M6, Brass

232561200

$4.23

2680

Interior End Piece

281300244

$30.99

2690

Exterior Cover

281300247

$25.99

2700

Cone Torx Truss Screw HD.M6 X 15

250001147

$3.70

2710

LH Front Side Hand Rail

281300797

$229.99

2715

Black, Dart

414644300

$0.98

2720

Cone Torx Truss Screw HD.M6 X 15

250001147

$3.70

2740

Cone Torx Truss Screw HD.M6 X 15

250001147

$3.70

2760

Lower Profile Tube

281300178

$89.99

2770

Cone Torx Truss Screw HD.M6 X 15

250001147

$3.70

2775

Balustrade Anchor

281300589

$7.59

2777

Balustrade Fastener

281300597

$3.59

2780

LH Lateral Ballustrade Ass'y

281300698

$539.99

2800

LH Rail Support

281300241

$39.99

2810

RH Rail Support

281300237

$39.99

2812

Socket Head Screw M6 X 65

205066560

$1.90

2813

Flat Washer M6, Stainless

234062600

$0.77

2820

Cleat

291005668

$26.99

2830

Hex. Screw M8 X 60, Scotch Grip

250000187

$4.44

2835

Stainless, Flat Washer 8 mm

234081600

$0.55

2850

Front Profiled Tube

281300182

$39.99

2860

Truss Cone Torx Screw M6 X 30

250000924

$7.51

2865

Stainless Flat Washer M6

234061600

$0.33

2870

Elastic Stop Nut M6, Brass

232561200

$4.23

2880

Interior End Piece

281300244

$30.99

2890

Exterior Cover

281300247

$25.99

2900

Cone Torx Truss Screw HD.M6 X 15

250001147

$3.70

2910

RH Front Side Hand Rail

281300793

$229.99

2915

Black, Dart

414644300

$0.98

2920

Cone Torx Truss Screw HD.M6 X 15

250001147

$3.70

2940

Cone Torx Truss Screw HD.M6 X 15

250001147

$3.70

2960

Lower Profile Tube

281300178

$89.99

2970

Cone Torx Truss Screw HD.M6 X 15

250001147

$3.70

2975

Balustrade Anchor

281300589

$7.59

2977

Balustrade Fastener

281300597

$3.59

2980

RH Side Balustrade Ass'y | Includes 2980 to 2980b

281300722

Unavailable

2980b

Gasoline Warning Label

219906264

$0.01

2990

Balustrade Support

281300506

$7.59

2995

Velcro Strip 150MM

293740076

$12.49

3000

Support Label

281300852

$42.99

3010

Ornit Rivet 6,4 X 15.6

293150284

$4.44
