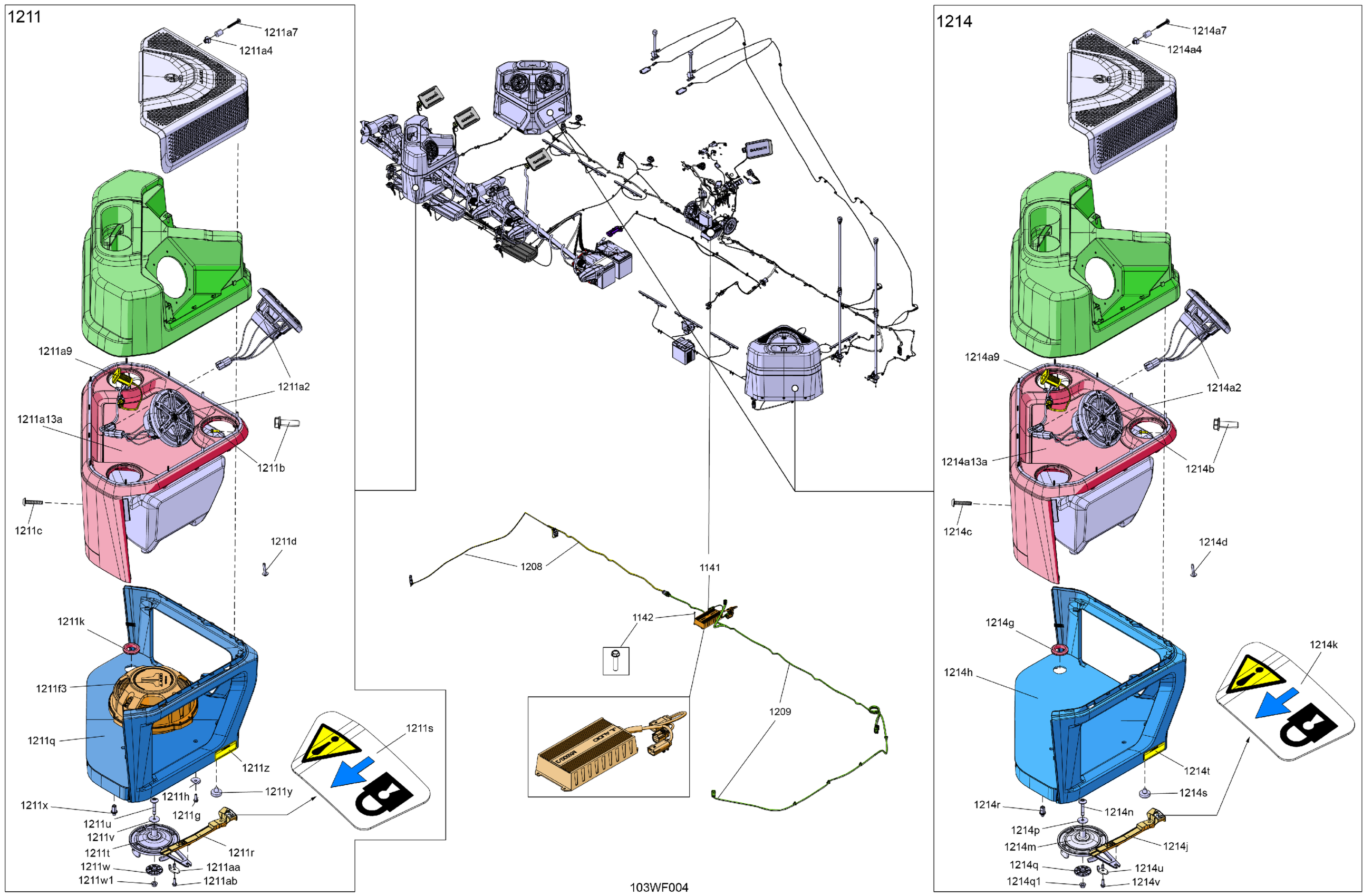

Sea-doo SPORT 18 - 300 - 49TB - Neo Mint - Trailer Galv - CAT-1-30-101 - Audio4 - 2026 ELECTRIC - Audio System Diagram

#

Description
Price

1141

Audio Amplifier

278004685

$849.99

1142

Hex. Screw 10-14 X 7/8”

211000023

$3.59

1208

Audio Device Wiring Harness

278004527

Unavailable

1209

Audio Device Wiring Harness

278004528

Unavailable

1211

Audio System Switch Kit | Includes 1211 to 1211ab

295101214

$2.00

1211a2

Loudspeaker

278003939

$339.99

1211a4

Insert

291003793

$3.56

1211a7

Plastite Torx Screw Cone HD. M6.81X4

250001191

$4.61

1211a9

Usb Port

278004003

$74.99

1211a13a

Top Corner Table

269003533

$419.99

1211a14

Torx Truss Screw K40 X 12

250000577

$2.11

1211b

Hex. Flange Screw M6.81 x 20

243162060

$3.72

1211c

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.11

1211d

Hexagonal Cap Screw M6 X35

250000399

$4.44

1211f3

Bass Loudspeaker

278003964

$609.99

1211g

Hex. Flange Screw M6.81 x 20

243162060

$3.72

1211h

Flat Washer

279000326

$4.19

1211j

Torx Truss Screw K40 X 12

250000577

$2.11

1211k

Grommet 1-5/16"

293720118

$16.33

1211q

Corner Table Base

269003315

$419.99

1211r

Lever Latch Service Kit

295101126

$24.99

1211s

Lever Decal

219905993

Unavailable

1211t

Seat Anchorage

269003311

$19.99

1211u

Torx Head M8 X 50 S.GRIP

250001154

$12.11

1211v

Flat Washer 8 mm

250200130

$3.17

1211w

Housing Nut M8 | Includes 400a1m to 400a1m1

293450387

$7.09

1211w1

Hex. Flange Nut M8

233181600

$1.05

1211x

Locator Rod

269003492

$6.09

1211y

Rubber Stopper

269003502

$6.89

1211z

Seat Anchorage Warning Label

219905883

Unavailable

1211aa

Guide

269004160

$10.99

1211ab

Hex. Flange Screw M6.81 x 20

243162060

$3.72

1214

Speaker Enclosure Ass'y | Includes 1214 to 1214v

278004232

$1.00

1214a2

Loudspeaker

278003939

$339.99

1214a4

Insert

291003793

$3.56

1214a7

Plastite Torx Screw Cone HD. M6.81X4

250001191

$4.61

1214a9

Usb Port

278004003

$74.99

1214a13a

Top Corner Table

269003533

$419.99

1214a14

Torx Truss Screw K40 X 12

250000577

$2.11

1214b

Hex. Flange Screw M6.81 x 20

243162060

$3.72

1214c

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.11

1214d

Hexagonal Cap Screw M6 X35

250000399

$4.44

1214f

Torx Truss Screw K40 X 12

250000577

$2.11

1214g

Grommet 1-5/16"

293720118

$16.33

1214h

Corner Table Base

269003315

$419.99

1214j

Lever Latch Service Kit

295101126

$24.99

1214k

Lever Decal

219905993

Unavailable

1214m

Seat Anchorage

269003311

$19.99

1214n

Torx Head M8 X 50 S.GRIP

250001154

$12.11

1214p

Flat Washer 8 mm

250200130

$3.17

1214q

Housing Nut M8 | Includes 400a1m to 400a1m1

293450387

$7.09

1214q1

Hex. Flange Nut M8

233181600

$1.05

1214r

Locator Rod

269003492

$6.09

1214s

Rubber Stopper

269003502

$6.89

1214t

Seat Anchorage Warning Label

219905883

Unavailable

1214u

Guide

269004160

$10.99

1214v

Hex. Flange Screw M6.81 x 20

243162060

$3.72
