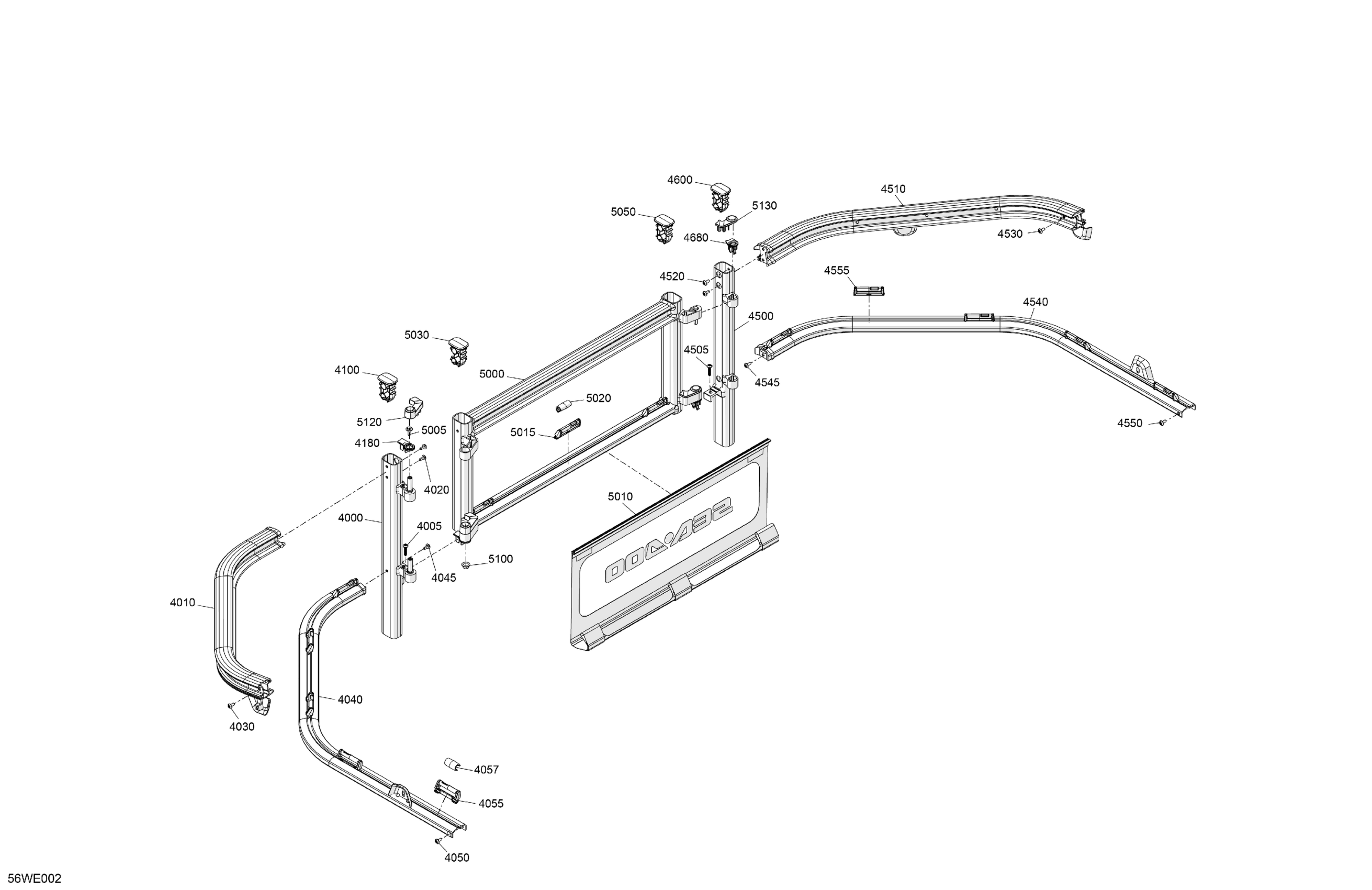

Sea-doo SPORT 18 - 230 - 48SA - Dusty Navy - Trailer Paint - CAT2B - 2025 GUARD RAILS - Front Diagram

Description

Price

4000

LH Front Profiled Tube

281300714

Unavailable

4005

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.00

4010

LH Front Hand Rail

281300350

Unavailable

4020

Cone Torx Truss Screw HD.M6 X 15

250001147

$3.45

4030

Cone Torx Truss Screw HD.M6 X 15

250001147

$3.45

4040

LH Lower Profile Tube

281300349

Unavailable

4045

Cone Torx Truss Screw HD.M6 X 51

250001185

$3.66

4050

Cone Torx Truss Screw HD.M6 X 15

250001147

$3.45

4055

Balustrade Anchor

281300589

Unavailable

4057

Balustrade Fastener

281300597

$3.24

4100

Oblong Plug

281300278

Unavailable

4180

LH Lower Cap

281300311

Unavailable

4500

RLH Front Profiled Tube

281300715

Unavailable

4505

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.00

4510

RH Front Hand Rail

281300355

Unavailable

4520

Cone Torx Truss Screw HD.M6 X 15

250001147

$3.45

4530

Cone Torx Truss Screw HD.M6 X 15

250001147

$3.45

4540

Rear Lower Profiled Tube

281300356

Unavailable

4545

Cone Torx Truss Screw HD.M6 X 51

250001185

$3.66

4550

Cone Torx Truss Screw HD.M6 X 15

250001147

$3.45

4555

Balustrade Anchor

281300589

Unavailable

4600

Oblong Plug

281300278

Unavailable

4680

RH Lower Cap

281300312

Unavailable

5000

Front Door Service Kit

295101112

Unavailable

5005

Hex Screw M6 X 20

250000965

$2.00

5010

Front Balustrade Ass'y

281300692

Unavailable

5015

Balustrade Anchor

281300589

Unavailable

5020

Balustrade Fastener

281300597

$3.24

5030

Oblong Plug

281300278

Unavailable

5050

Oblong Plug

281300278

Unavailable

5100

Venturi Bushing

293900007

$4.25

5120

LH Upper Cap

281300309

Unavailable

5130

RH Upper Cap

281300310

Unavailable
