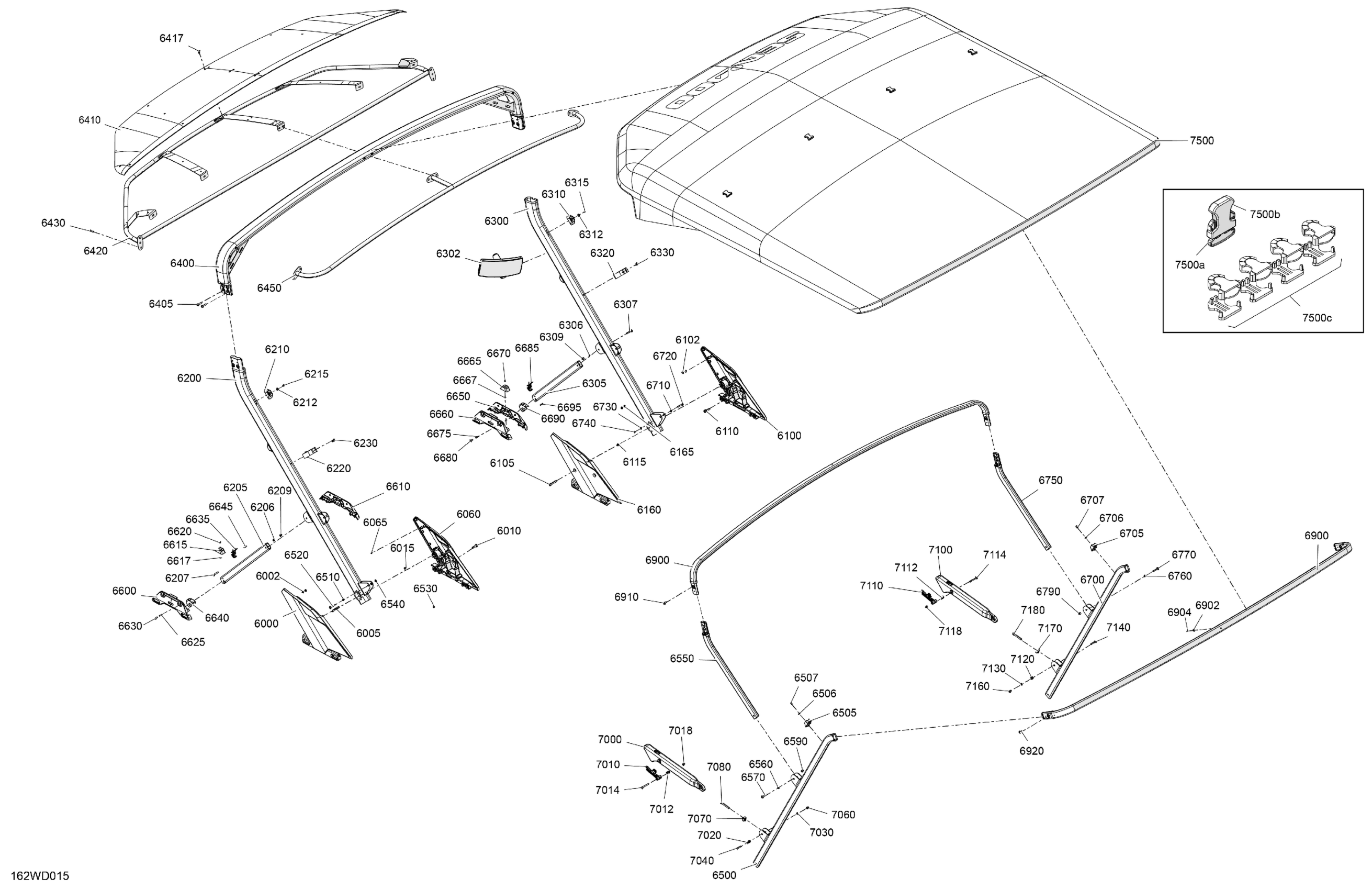

Sea-doo SPORT 18 - 230 - 48RA - Blue - Trailer Paint - CAT2B, 2024 CANVAS - Double Bimini Top Diagram

#

Description
Price

6000

LH Outer Bimini Anchorage

281300518

$48.49

6002

Black Dart 5 mm

293730053

$4.55

6005

Socket Head Screw M8 X 45, S. GRIP

205584560

$3.38

6010

Socket Head Screw M8 X 30, Scotch Grip

205583060

$3.79

6015

Stainless, Flat Washer 8 mm

234081600

$0.55

6060

LH Inner Bimini Anchorage

281300520

$48.49

6065

Black Dart 5 mm

293730053

$4.55

6100

RH Outer Bimini Anchorage

281300522

$48.49

6102

Black Dart 5 mm

293730053

$4.55

6105

Socket Head Screw M8 X 45, S. GRIP

205584560

$3.38

6110

Socket Head Screw M8 X 30, Scotch Grip

205583060

$3.79

6115

Stainless, Flat Washer 8 mm

234081600

$0.55

6160

RH Inner Bimini Anchorage

281300524

$48.49

6165

Black Dart 5 mm

293730053

$4.55

6200

Profiled Tube

281300735

$185.49

6205

Profiled Tube

281300390

$15.36

6206

Bushing

293900086

$2.79

6207

Cone Torx Truss Screw HD.M6 X 35

250001217

$3.91

6209

Hexagonal Jam Nut M6

232161600

$12.12

6210

Rubber Stopper

281300607

$4.23

6212

Stainless Flat Washer M6

234061600

$0.33

6215

Pop Rivet 3/16"

293150008

$0.50

6220

Retaining Strap

281300590

$17.08

6230

Pop Rivet 3/16"

293150123

$4.29

6300

Profiled Tube

281300735

$185.49

6302

Rearview Mirror Ass'y

281300577

$153.49

6305

Profiled Tube

281300390

$15.36

6306

Bushing

293900086

$2.79

6307

Cone Torx Truss Screw HD.M6 X 35

250001217

$3.91

6309

Hexagonal Jam Nut M6

232161600

$12.12

6310

Rubber Stopper

281300607

$4.23

6312

Stainless Flat Washer M6

234061600

$0.33

6315

Pop Rivet 3/16"

293150008

$0.50

6320

Retaining Strap

281300590

$17.08

6330

Pop Rivet 3/16"

293150123

$4.29

6400

Front Harness Service Kit

295101118

$211.99

6405

Cone Torx Truss Screw HD.M6 X 30

250001146

$3.91

6410

Roof Reinforcement

281300705

$54.99

6417

Black, Dart

414644300

$0.98

6420

Soft Roof Visor

281300736

$179.99

6430

Cone Torx Truss Screw HD.M6 X 15

250001147

$3.70

6450

Rear Soft Roof Visor

281300456

$97.99

6500

Profiled Tube

281300385

$81.49

6505

Rubber Stopper

281300607

$4.23

6506

Stainless Flat Washer M6

234061600

$0.33

6507

Pop Rivet 3/16"

293150008

$0.50

6510

Bushing

293900086

$2.79

6520

Cone Torx Truss Screw HD.M6 X 35

250001217

$3.91

6530

Stainless Flat Washer M6

234061600

$0.33

6540

Elastic Stop Nut M6, Brass

232561200

$4.23

6550

Profiled Tube

281300534

$35.99

6560

Bushing

293900086

$2.79

6570

Cone Torx Truss Screw HD.M6 X 35

250001217

$3.91

6590

Hexagonal Jam Nut M6

232161600

$12.12

6600

Outer Anchorage Support

281300422

$25.99

6610

Inner Anchorage Support

281300429

$25.99

6615

Rubber Stopper

281300607

$4.23

6617

Stainless Flat Washer M6

234061600

$0.33

6620

Pop Rivet 3/16"

293150008

$0.50

6625

Rod Latch

281300566

$12.23

6630

Cone Torx Truss Screw HD.M6 X 15

250001147

$3.70

6635

Lever Latch

281300567

$7.09

6640

Latch Trim

281300573

$4.44

6645

Spring Pin 3/16 X 3/4

250400100

$2.29

6650

Outer Anchorage Support

281300422

$25.99

6660

Inner Anchorage Support

281300429

$25.99

6665

Rubber Stopper

281300607

$4.23

6667

Stainless Flat Washer M6

234061600

$0.33

6670

Pop Rivet 3/16"

293150008

$0.50

6675

Rod Latch

281300566

$12.23

6680

Cone Torx Truss Screw HD.M6 X 15

250001147

$3.70

6685

Lever Latch

281300567

$7.09

6690

Latch Trim

281300573

$4.44

6695

Spring Pin 3/16 X 3/4

250400100

$2.29

6700

Profiled Tube

281300385

$81.49

6705

Rubber Stopper

281300607

$4.23

6706

Stainless Flat Washer M6

234061600

$0.33

6707

Pop Rivet 3/16"

293150008

$0.50

6710

Bushing

293900086

$2.79

6720

Cone Torx Truss Screw HD.M6 X 35

250001217

$3.91

6730

Stainless Flat Washer M6

234061600

$0.33

6740

Elastic Stop Nut M6, Brass

232561200

$4.23

6750

Profiled Tube

281300534

$35.99

6760

Bushing

293900086

$2.79

6770

Cone Torx Truss Screw HD.M6 X 35

250001217

$3.91

6790

Hexagonal Jam Nut M6

232161600

$12.12

6900

Rear Hoop

281300395

$110.99

6902

Fastener Snap

293730102

$4.79

6904

Pop RIvet 1/8 X ,375

293150285

$0.33

6910

Cone Torx Truss Screw HD.M6 X 15

250001147

$3.70

6920

Cone Torx Truss Screw HD.M6 X 15

250001147

$3.70

7000

Lock Lever

281300552

$74.99

7010

LH Tensioner

281300575

$8.04

7012

Cut Bushing

281300554

$4.29

7014

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$4.44

7018

Hexagonal Jam Nut M6

232161600

$12.12

7020

Cut Bushing

281300554

$4.29

7030

Bushing

293900086

$2.79

7040

Cone Torx Truss Screw HD.M6 X 35

250001217

$3.91

7060

Hexagonal Jam Nut M6

232161600

$12.12

7070

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$6.67

7080

Socket Head Screw M8 X 55

250001226

$4.76

7100

Lock Lever

281300552

$74.99

7110

RH Tensioner

281300553

$8.04

7112

Cut Bushing

281300554

$4.29

7114

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$4.44

7118

Hexagonal Jam Nut M6

232161600

$12.12

7120

Cut Bushing

281300554

$4.29

7130

Bushing

293900086

$2.79

7140

Cone Torx Truss Screw HD.M6 X 35

250001217

$3.91

7160

Hexagonal Jam Nut M6

232161600

$12.12

7170

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$6.67

7180

Socket Head Screw M8 X 55

250001226

$4.76

7500

Bimini Soft Top | Includes 7500 to 7500c

281300691

$379.99

7500a

Male Buckle

296000462

Unavailable

7500b

Female Buckle

296000463

Unavailable

7500c

Buckle Kit

295101472

$65.49
