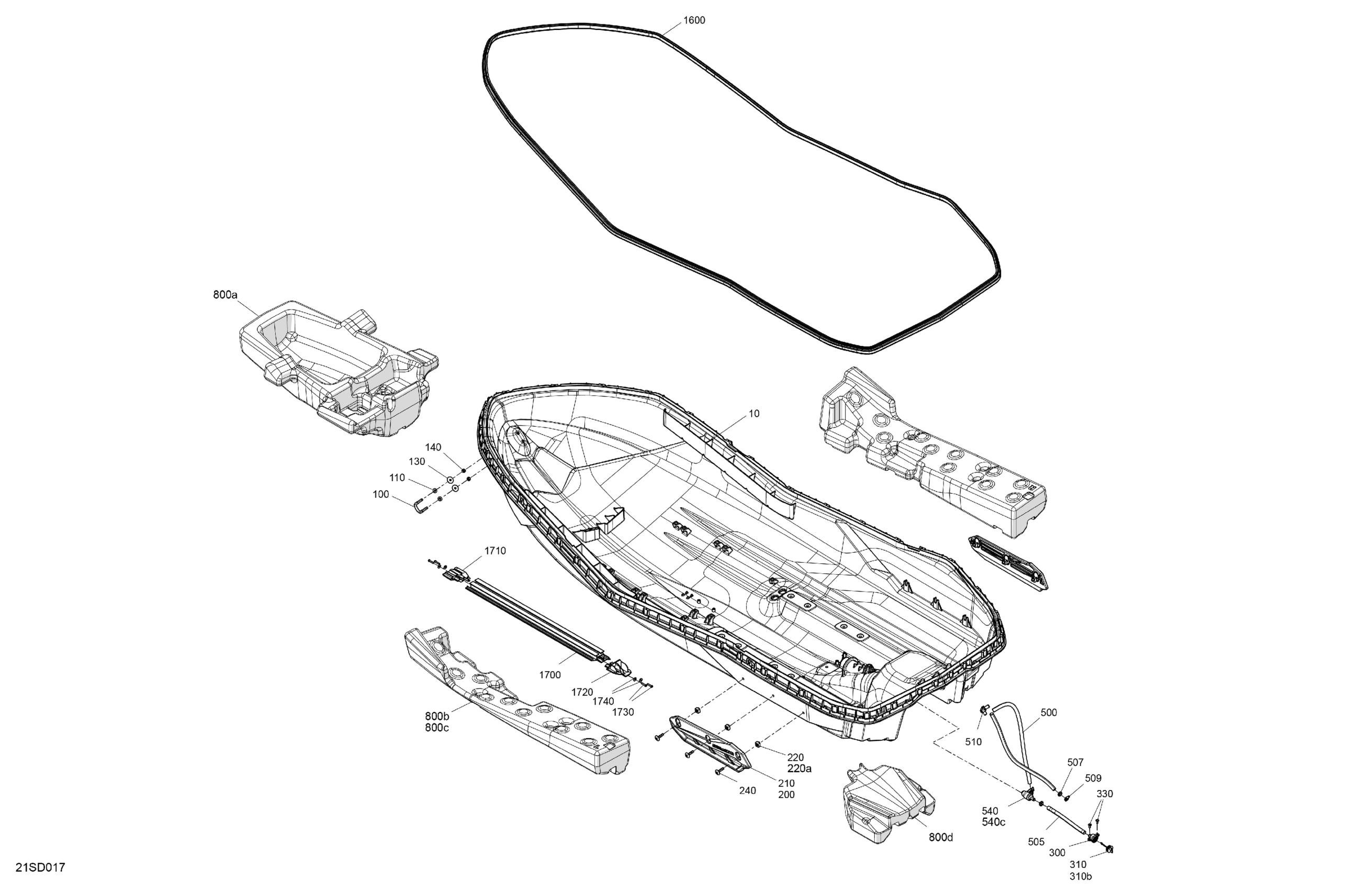

Sea-doo North America - SPARK 900 ACE - 61RA - Base package - Sunrise Orange - 2UP,2024 07- Body - Hull Diagram

Description

Price

Hull | Includes 10 to 10a

292002590

$1.00

10a

Hull Insert Kit | Includes 10a to 10a3

295501139

$43.99

10a1

Hull Insert Kit | Includes 10a to 10a3

295501139

$43.99

10a2

Torx Screw M6 X 20

250000711

$1.90

10a3

Drill Bite N Size

529036505

Unavailable

100

U-Clamp

292000933

$59.49

110

Flat Washer M8.5 x 18

293050001

$3.07

130

Flat Washer 8 mm, Stainless

250200175

$3.06

140

Hex. Elastic Nut M8 Brass

232581200

$2.22

200

RH Sponson

292002009

$82.99

210

LH Sponson

292002008

$82.99

220

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$6.67

220a

Hex. Elastic Nut M8 Brass

232581200

$2.22

240

Torx-Head Screw M8 X 35

250001276

$5.92

300

Neck Drain

292001552

$14.49

310

Plug Drain Ass'y | Includes 310 to 310b

292002024

$13.49

310b

O-Ring

293300067

$1.04

330

Torx Screw M6 X 14

250000384

$7.51

500

Polyurethane Hose 1000Mm Long | Not Shown

219704393

$7.20

505

Polyurethane Hose 1000Mm Long | Not Shown

219704393

$7.20

507

Rubber Washer

293830063

$1.90

509

Clamp Gear

293650285

$3.27

510

Fitting Elbow 90°

293710152

$18.49

540

Bailer Pick-up Ass'y | Includes 540 to 540c

292001636

$25.99

540c

Floating Ball

293830080

$7.19

800a

Front Hull Float

292002593

$92.99

800b

LH Hull Float

292002594

$92.99

800c

RH Hull Float

292002595

$92.99

800d

Rear Hull Float

292002596

$27.99

1600

Seal Joint

293250338

$64.99

1700

Hull Reinforcement

292001549

$92.99

1710

Front End Piece Reinforcement

292001550

$12.99

1720

Rear End Piece Reinforcement

292001551

$12.99

1730

Hex. Flange Screw K50 X 25

250000680

$1.89

1740

Flat Washer 5 mm, Stainless

234052600

$0.77
