03- Mechanic - Steering

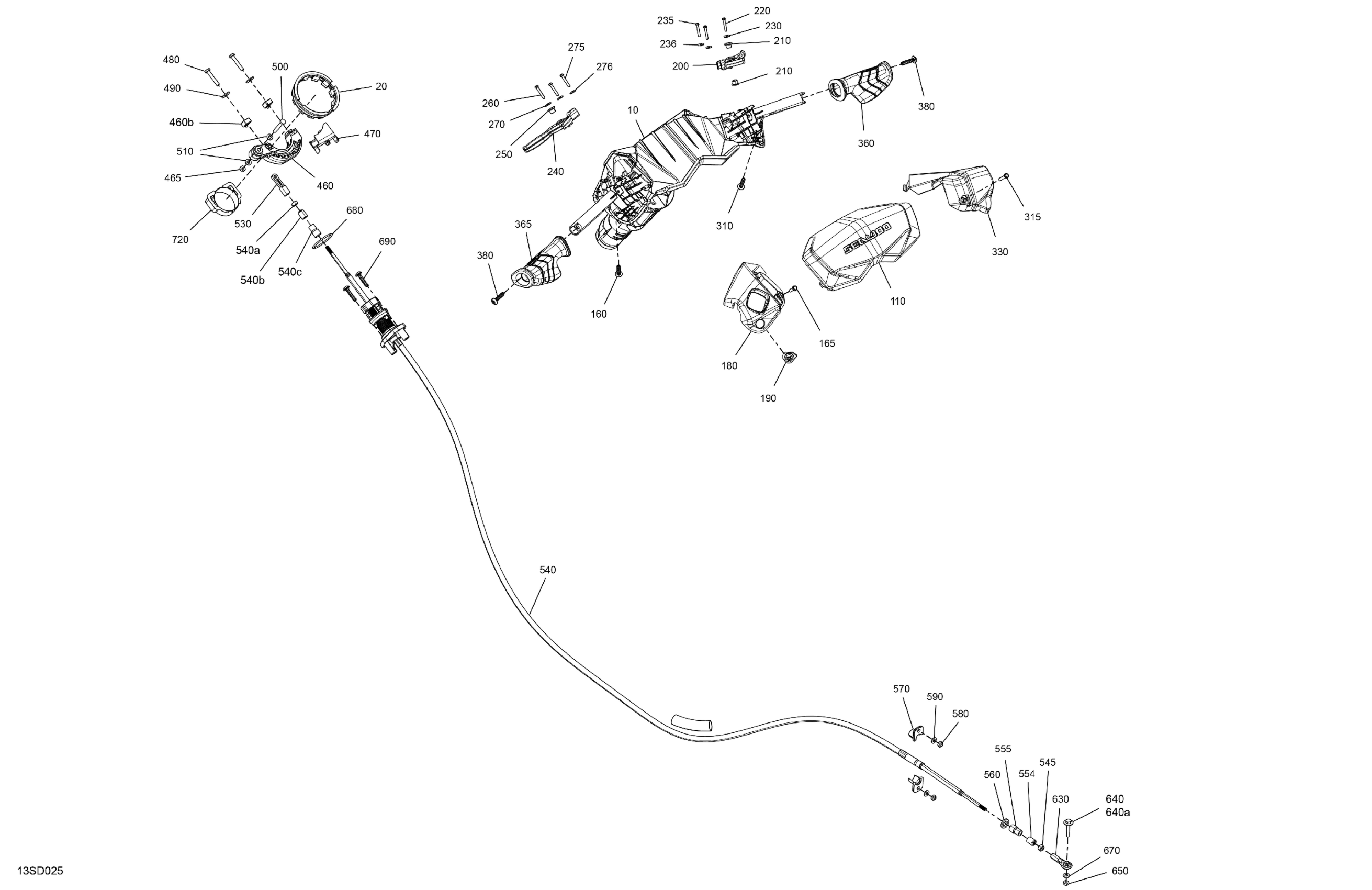

Sea-doo North America - SPARK 900 ACE - 61RA - Base package - Sunrise Orange - 2UP,2024 03- Mechanic - Steering Diagram
#
10
Steering Column
277002291
$229.99
20
Wear Ring
277001874
$12.17
110
Bright White, Handlebar Trim
277002258
$20.99
160
Plastite Screw Torx Cone HD.M6.81X3
250001138
$2.30
165
Hex. Screw 10-14 X 7/8”
211000023
$3.59
180
LH Cover
277002260
$19.49
190
Red Button Switch
277002327
$9.21
200
Hand Lever Accelerator
277002138
$38.99
210
Bushing
293900091
$4.52
220
Hex. Flange Screw K40 X 25
241142560
$2.64
230
Flat Washer 4 mm, Stainless
234042600
$1.15
235
Hex. Flange Screw K40 X 25
241142560
$2.64
236
Flat Washer 4 mm, Stainless
234042600
$1.15
240
Reverse Handle
277001945
$43.99
250
Bushing
293900091
$4.52
260
Hex. Flange Screw K40 X 25
241142560
$2.64
270
Flat Washer 4 mm, Stainless
234042600
$1.15
275
Hex. Flange Screw K40 X 25
241142560
$2.64
276
Flat Washer 4 mm, Stainless
234042600
$1.15
310
Plastite Screw Torx Cone HD.M6.81X3
250001138
$2.30
315
Hex. Screw 10-14 X 7/8”
211000023
$3.59
330
RH Cover
277002261
$19.49
360
Deep Black, RH Handle Grip
277001946
$20.99
365
Deep Black, LH Handle Grip
277001958
$20.99
380
Plastite Screw Torx Cone HD.M6.81X3
250001138
$2.30
460
Support Ass'y | Includes 460 to 460b
277002179
$22.49
460b
Nut Housing M6 | Includes 555 to 555b
269502544
$6.53
465
Nut Flange Elastic M6
233261200
$0.99
470
Spacer
277001654
$15.99
480
Hex. Screw M6 X 35
207163560
$1.49
490
Flat Washer M6, Stainless
234062600
$0.77
500
Hex. Screw M6 X 40
207064060
$1.69
510
Stainless Flat Washer M6
234061600
$0.33
530
Ball Joint
277001180
$35.99
540
Steering Cable | Includes 540 to 540c
277002065
$259.49
540a
Hex. Nut 1/4"-28
211100056
$0.69
540b
Wiper Rod
277001582
$11.11
540c
End Piece
277001583
$14.49
545
Hex. Nut 1/4"-28
211100056
$0.69
554
Wiper Rod
277001582
$11.11
555
End Piece
277001583
$14.49
560
Rubber Washer
293830063
$1.90
570
Ring Halves
277001856
$12.99
580
Elastic Stop Nut M6, Brass
232561200
$4.23
590
Stainless Flat Washer M6
234061600
$0.33
630
Ball Joint
277000775
$51.99
640
Hex Sems Screw M6X35
250000970
$2.11
640a
Hex Screw SEMS M6X35, SS
250000969
$2.11
650
Elastic Stop Nut M6, Brass
232561200
$4.23
670
Stainless Flat Washer M6
234061600
$0.33
680
O-Ring
293300176
$1.36
690
Plastite Torx Screw M6.81X30 | Not Shown
250000879
$2.11
720
Wear Ring
277002318
$15.99
