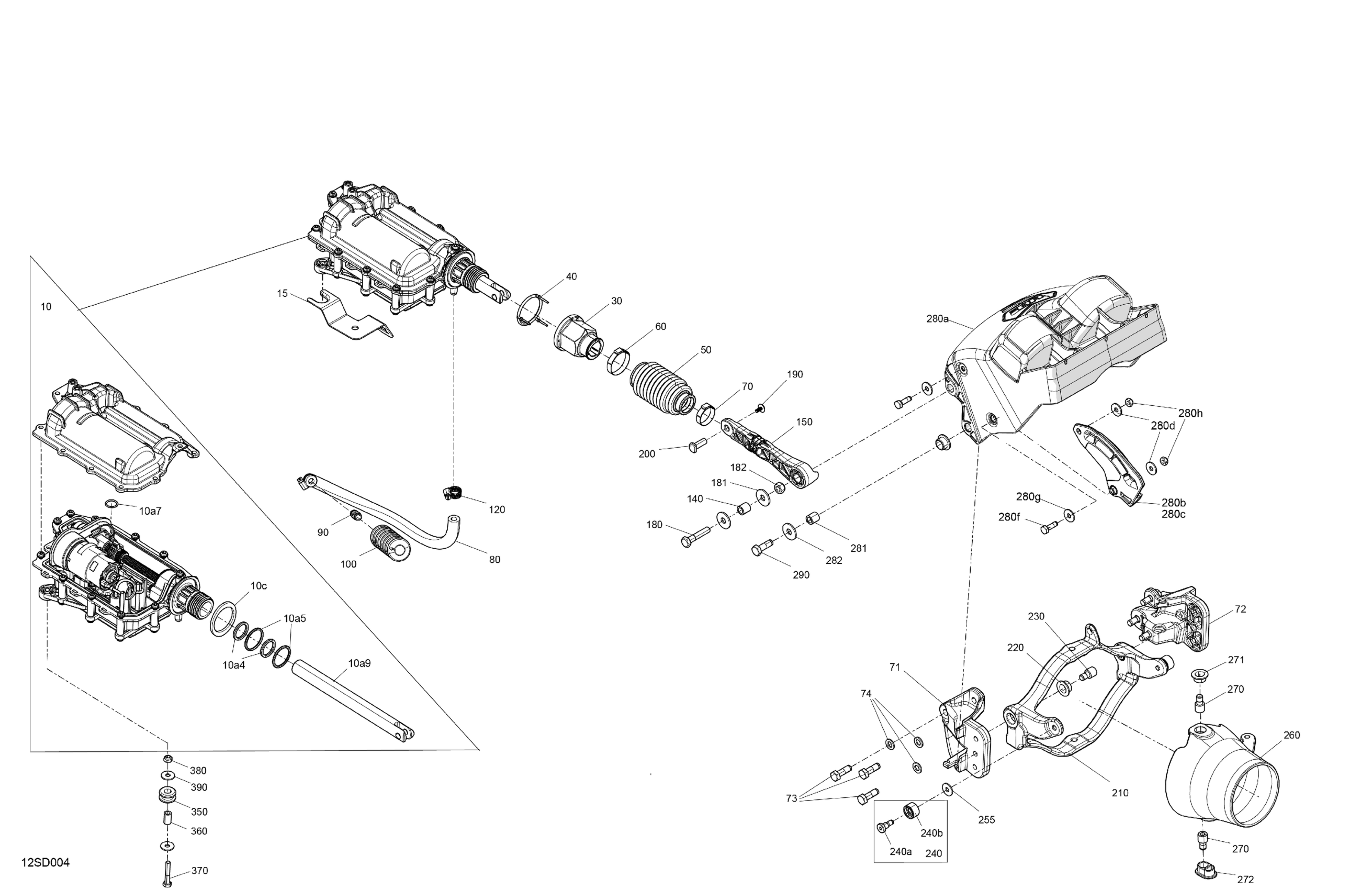

Sea-doo SPARK 900 ACE - 61RA - Base package - Sunrise Orange - 2UP,2024 Mechanic - Reverse Diagram

#

Description
Price

10

Actuator Reverse Ass'y | Includes 10 to 10c

278004394

$738.78

10a4

O-Ring

279000108

$5.61

10a5

O-Ring

293300107

$0.96

10a7

O-Ring

293300187

$3.67

10a9

Output Shaft

278003027

$50.72

10c

Gasket

268000208

$14.37

15

Actuator Support

268000210

$17.13

30

IBR Nut

268000308

$9.84

40

Rubber Gasket

277001977

$2.01

50

Boot

268000186

$4.12

60

Oetiker Gear Clamp, 36.5-706R

509000529

$9.42

70

Crimp Clamp

293650099

$4.07

71

LH Reverse Support

268000163

$24.60

72

RH Reverse Support

268000166

$28.33

73

Hex. Screw M8 X 25, Scotch Grip

207382560

$2.27

74

Flat Washer M8, Stainless

234080600

$1.43

80

Was 509000407 Hose 8 mm

219704420

$46.24

90

Fitting-Straig

293710157

$6.15

100

Inner Boot This part replaces 268000345.

268000211

$9.34

120

Clamp Gear

293650285

$3.07

140

Spacer

271001039

$13.52

150

Reverse Rod

268000187

$26.09

180

Hex. Screw M8 X 45

207084560

$3.18

181

Flat Washer 8 mm, Stainless

234082600

$2.27

182

Hex. Elastic Nut M8 Brass

232581200

$1.48

190

Hexalob Screw M4 X 10

250000565

$2.00

200

Shoulder Pin

268000309

$17.13

210

Trimming Ring

268000179

$85.79

220

Venturi Bushing

293900007

$4.25

230

Socket Head Screw M8 X 13

268000141

$7.85

240

Roller Bushing Kit | Includes 240 to 240b

295501160

$3.79

240a

Screw-Socket Shoulder M8X8

250000775

$7.54

240b

Roller Bushing Kit | Includes 240 to 240b

295501160

$3.79

250

Screw-Socket Shoulder M8X8

250000775

$7.54

255

Flat Washer M6, Stainless

234062600

$0.73

260

Nozzle

267000705

$69.37

270

Socket Head Screw M8 X 13

268000141

$7.85

271

Venturi Bushing

293900007

$4.25

272

Plastic Bushing

293900010

$8.21

280a

Reverse Gate

268000325

$170.12

280b

LH Ramp Trim

266000031

$4.03

280c

RH Ramp Trim

266000032

$4.03

280d

Flat Washer M6, Stainless

234062600

$0.73

280f

Hex. Screw M6 X 20, Scotch Grip

207362060

$1.40

280g

Flat Washer M6, Stainless

234062600

$0.73

280h

Elastic Stop Nut M6, Brass

232561200

$4.03

281

Spacer

271001039

$13.52

282

Flat Washer 8 mm, Stainless

234082600

$2.27

290

Hex. Screw M8 X 25, Scotch Grip

207382560

$2.27

350

Grommet

293720104

$4.76

360

Spacer

271001020

$10.60

370

Hex. Screw M6 X 35

207063560

$2.12

380

Elastic Stop Nut M6, Brass

232561200

$4.03

390

Flat Washer M6, Stainless

234062600

$0.73
