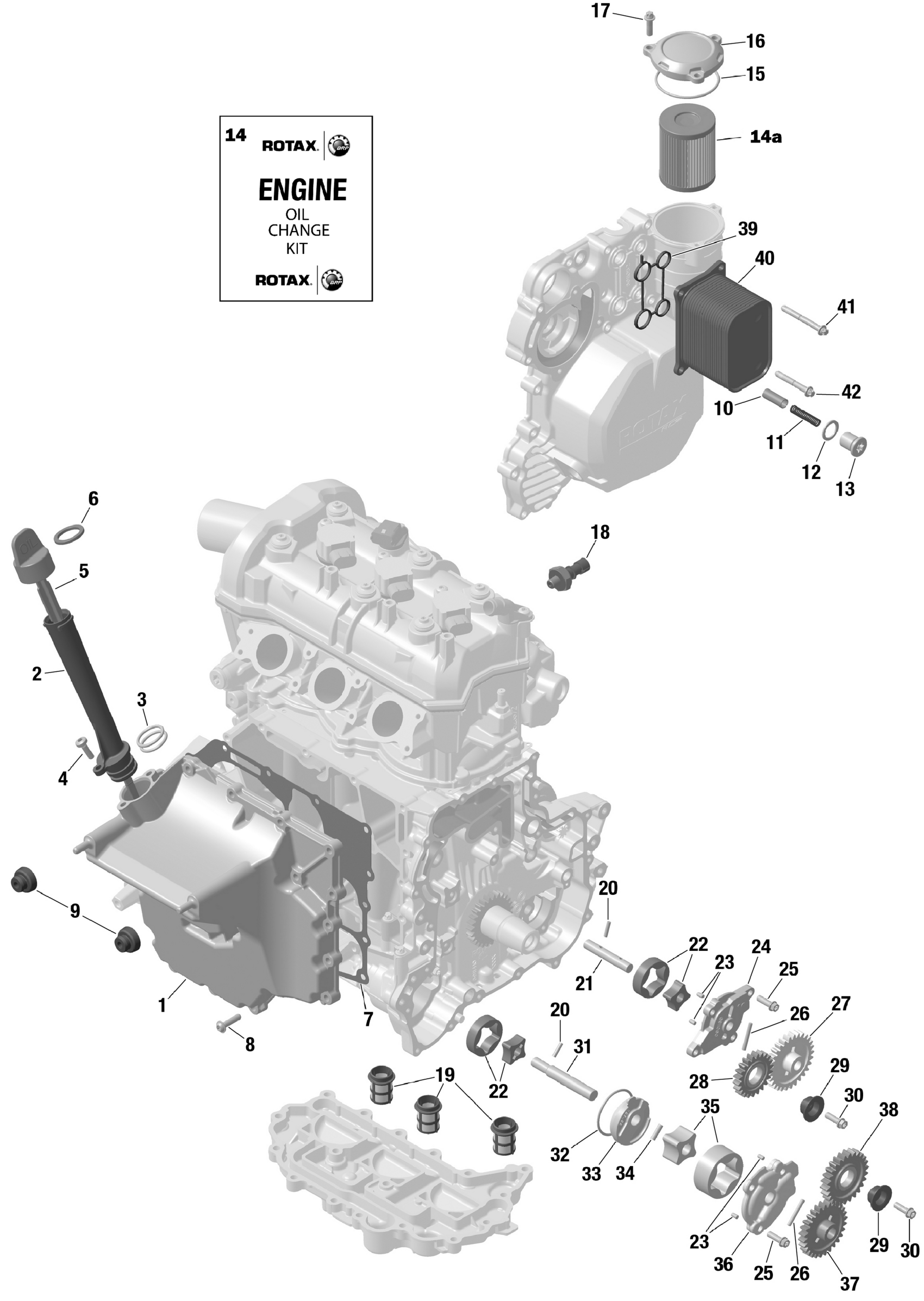

Sea-doo SPARK 900 ACE - 61RA - Base package - Sunrise Orange - 2UP,2024 ROTAX - Engine Lubrication Diagram

#

Description
Price

1

Oil Sump Cover

420656708

$104.45

2

Oil Filler Tube

420656900

$6.19

3

O-Ring

420430440

$3.49

4

Torx Flange Screw M6 X 20

420441383

$5.04

5

Oil Lever Tube | Includes no. 5-6

420856667

$11.18

6

Gasket Ring

420431790

$8.09

7

Oil Sump Cover Gasket | Included in gasket kit

420431848

Unavailable

8

Torx Flange Screw M6 X 25

420841548

$5.04

9

Rubber Grommet

420860150

$5.06

10

Pressure Regulating Piston

420256591

$12.15

11

Spring

420239445

$12.15

12

Gasket Ring

420430624

$1.73

13

Plug Screw

420441373

$12.64

14

Oil Change Kit 5W40 900Ace

9779250

$51.46

14a

Oil Filter

420956123

$12.79

15

O-Ring

420230923

$2.97

16

Oil Filter Cover

420612139

$31.99

17

Torx Flange Screw M6 X 20

420441693

$5.57

18

Oil Pressure Switch

420856536

$55.94

19

Oil Sieve

420656680

$10.01

20

Needle Pin

420232731

$1.79

21

Oil Pump Shaft

420820120

$11.18

22

Oil Pump Rotor

420256348

$70.87

23

Needle Pin

420929075

$2.00

24

Oil Pump Cover

420911080

$26.84

25

Torx Flange Screw M6 X 20

420440207

$2.91

26

Needle Pin

420232432

$4.21

27

Oil Pump Gear, 29 Teeth

420834882

$10.21

28

Gear 22 Teeths

420835400

$18.63

29

Spacer

420947394

$23.85

30

Torx Flange Screw M6 X 20

420440207

$2.91

31

Oil Pump Shaft

420837916

$23.85

32

O-Ring

420631830

$2.00

33

Oil Pump Cover

420611955

$11.72

34

Needle Pin

420632221

$4.15

35

Oil Pump Rotor

420256836

$69.37

36

Oil Pump Cover

420611980

$32.06

37

Oil Pump Gear, 28 Teeth

420834887

$10.21

38

Idle Gear, 26 Teeth

420835321

$23.85

39

Gasket

420431871

$10.13

40

Oil Cooler

420656000

$147.73

41

Torx Flange Screw M6 X 55

420840673

$5.42

42

Torx Flange Screw M6 X 45

420641198

$3.88
