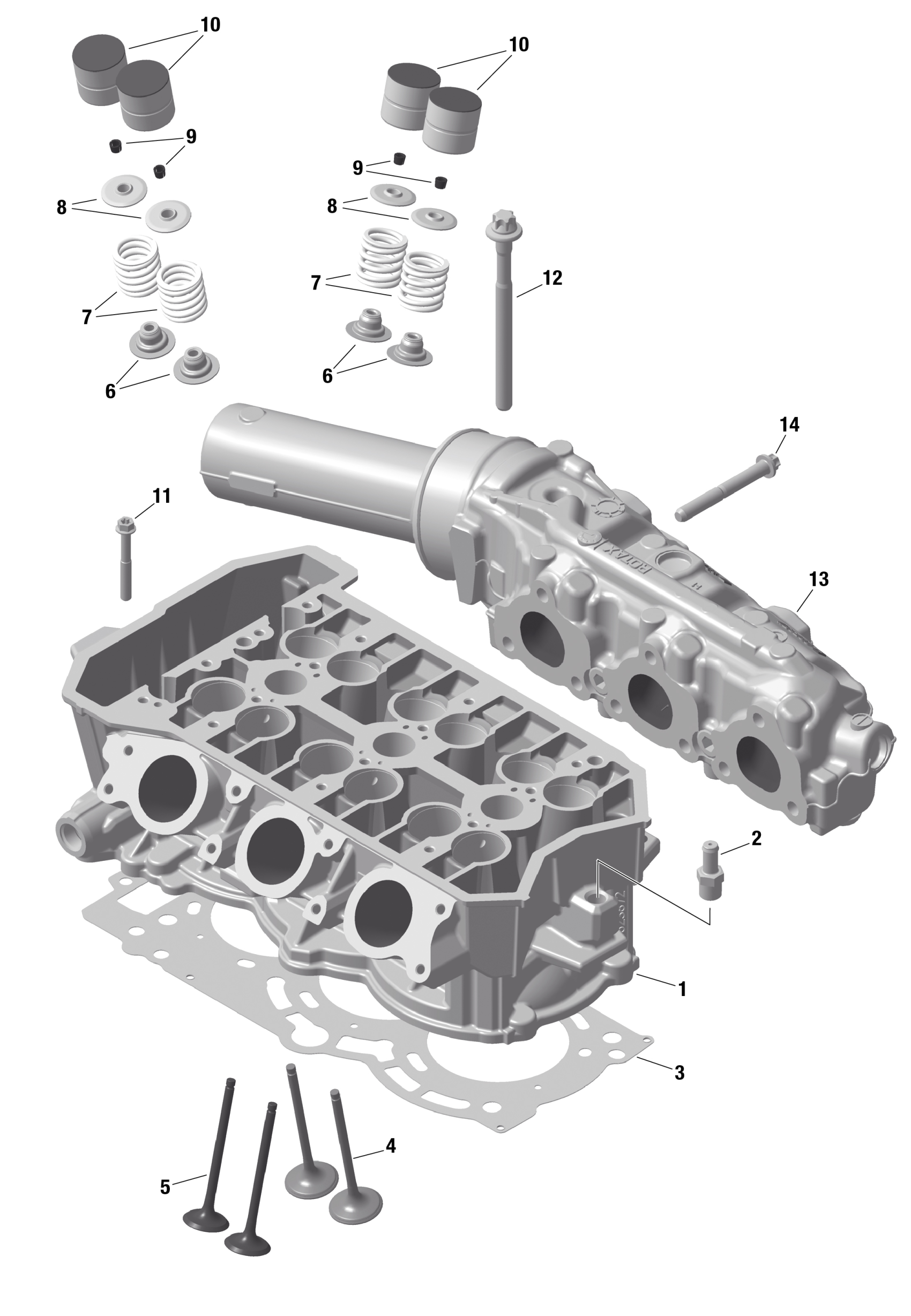

Sea-doo SPARK 900 ACE - 61RA - Base package - Sunrise Orange - 2UP,2024 ROTAX - Cylinder Head Diagram

#

Description
Price

1

Cylinder Head Ass'y

420213265

$848.48

2

Hose Nipple

420441420

$12.15

3

Cylinder Head Gasket

420431813

$42.51

4

Intake Valve 29MM

420855131

$23.10

5

Exhaust Valve 25 MM This part replaces 420855148.

420855146

Unavailable

6

Valve Stem Seal

420431671

$5.06

7

Valve Spring

420939540

$7.09

8

Valve Spring Retainer

420855150

$4.15

9

Cotter Valve

420254630

$0.96

10

Valve Lifter Bucket

420855165

$44.00

11

Torx Flange Screw M6 X 45

420440324

$0.93

12

Torx Flange Screw M9 X 113

420940945

$11.96

13

Exhaust Manifold

420673511

$394.00

14

Torx Flange Screw M8 x 65

420640333

$5.04
