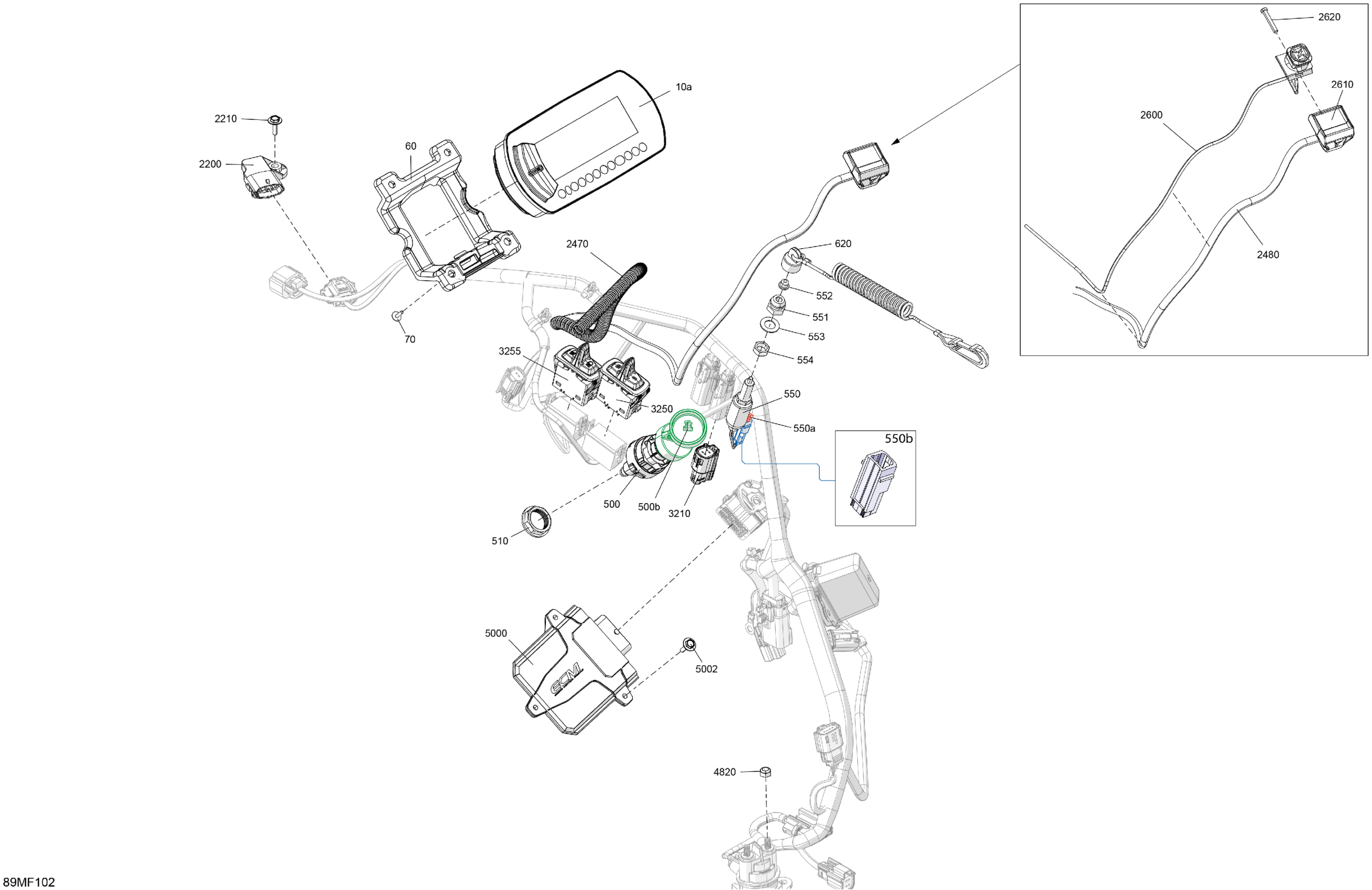

Ski-Doo North America - SKANDIC - SPORT - 600 EFI - AJTA - Neo Yellow - 20X154X1.25WT Track, 2026 08- Electric - Upper Section Diagram

Description

Price

10a

2 Button Multifunction Gauge Full Size Color

515178226

$599.99

Housing

515178450

$6.39

Screw M4 X 16

250000725

$3.49

500

Ignition Switch | Includes 210 to 210b

710007324

$64.49

500b

Blank Ignition Key

715900934

$19.99

510

Specialized Nut

710007923

$2.11

550

Brake Switch

515175653

$19.49

550a

Male Terminal

515175232

$1.58

550b

Male Terminal Housing, 2 Circuits

515175654

$9.12

551

Switch Nut

515145900

$12.12

552

Plunger Cap

570151100

$9.85

553

Flat Washer

250200084

$3.38

554

RH Threaded Hex. Jam Nut M10

732610010

$0.74

620

Cap Ass'y

515178283

$38.99

2200

Pressure And Temperature Sensor

707000995

$88.99

2210

Screw M4 X 16

250000725

$3.49

2470

Sheath Corrugated 9 MM ID

515178885

$1.47

2480

Braided Sleeve

415130141

$55.99

2600

Emergency Stop Switch

515179472

$78.49

2610

Clamp

515179182

$9.19

2620

Screw PT. Socket T10 K30 X 16

250001201

$3.39

3210

4 Circuits Female Housing

515178177

$12.18

3250

Switch Rocker Hand Warmer

515178462

$20.49

3255

Switch Rocker Headlignt

515178463

$20.49

4820

Elastic Stop Nut M6

232561414

$0.55

5000

ECM Module

515179453

$299.99

5002

Screw M4 X 16

250000725

$3.49
