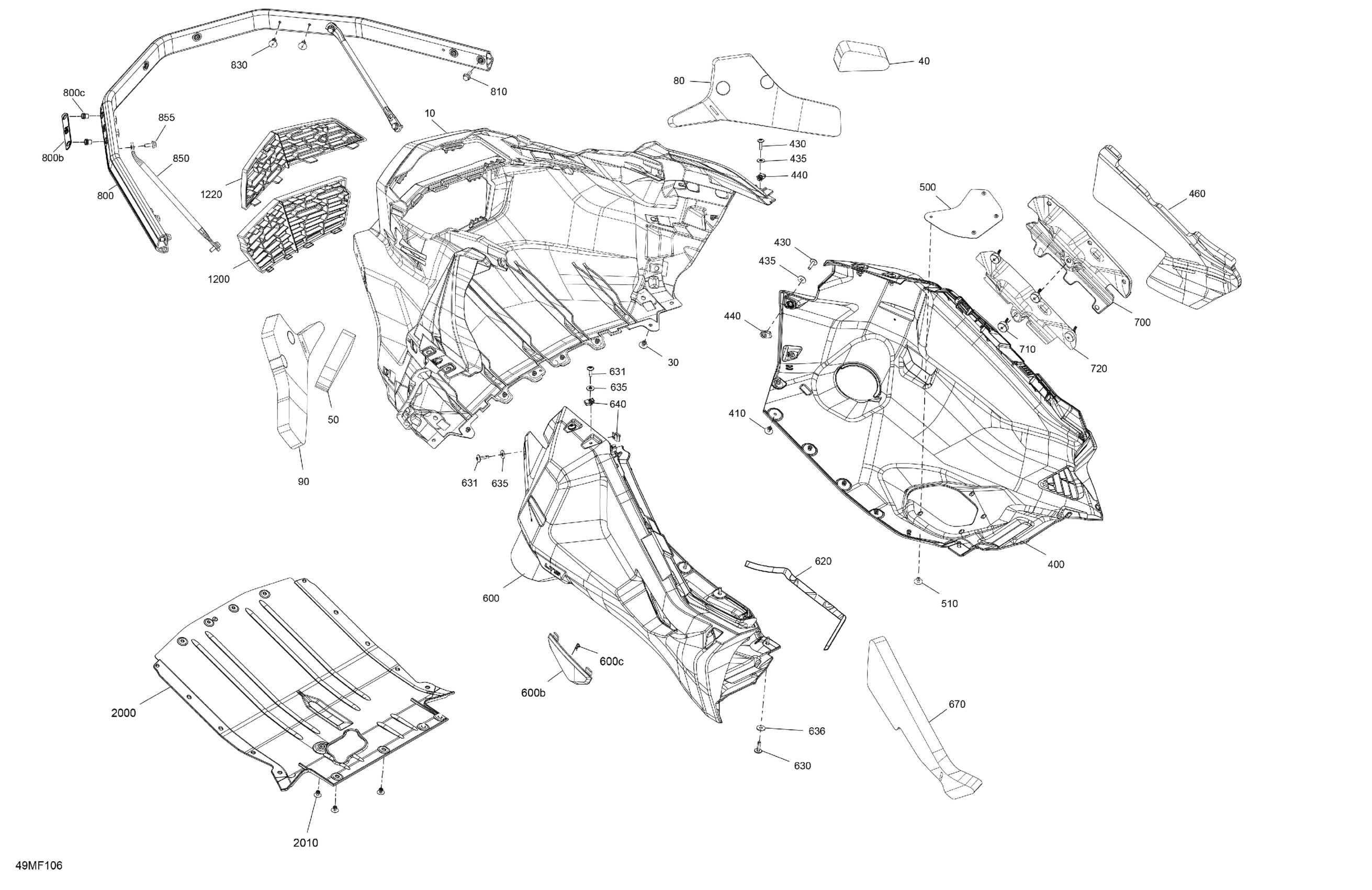

Ski-Doo SKANDIC - SE - 900 ACE - ANTH - Catalyst Gray - 24X154X1.5CST Track, 2026 Body - Bottom Pan Diagram

Description

Price

Deep Black, Front Bottom Pan

502007725

$109.99

Black, Pop Rivet 3/16 X ,550

293150292

$1.05

RH Upper Front Bottom Pan Foam

502007937

$2.29

LH Upper Front Bottom Pan Foam

502007938

$2.29

RH Front Lower Bottom Pan Foam

502007941

$4.69

LH Front Lower Bottom Pan Foam

502007942

$4.69

400

Black Rh Bottom Pan

502008103

$92.99

410

Black, Pop Rivet 3/16 X ,550

293150292

$1.05

430

Torx Truss M5 X 20

250000586

$4.44

435

Washer

517307442

$1.48

440

Panel Nut M5 X 0.8

250000958

$4.23

460

Foam

502008161

$14.49

500

Plate

502007868

$2.19

510

Black, Pop Rivet 3/16 X ,425

293150291

$0.56

600

LH Bottom Pan | Includes 600 to 600c

502008067

$93.99

600b

Bottom Pan Door

502007676

$38.99

600c

Hairpin Cotter

269800431

$1.29

620

Neoprene Seal (1PAC=3M)

219704364

$27.49

630

Screw Torx M5 X 20

250001232

$1.37

631

Torx Truss M5 X 20

250000586

$4.44

635

Washer

517307442

$1.48

636

Washer M5

250200025

$0.74

640

Panel Nut M5 X 0.8

250000958

$4.23

670

LH Rear Bottom Pan Foam

502007946

$14.49

700

Heat Shield

502008087

$7.09

710

Stopper

502008752

$2.09

720

Reflective Sheet

502008156

$4.79

800

Orange Crush, Front Bumper Ass'y | Includes 800 to 800c

502008797

$280.99

800b

Bumper Trim

502007880

$29.99

800c

Insert

293450398

$4.99

810

Hex. Flange Screw M6 X 16

207661644

$0.74

830

Black, Pop Rivet 3/16 X ,550

293150292

$1.05

850

Bumper Reinforcement

502007913

$6.49

855

Hex. Flange Screw M6 X 16

207661644

$0.74

1200

Lower Prefilter Grille

502007979

$26.99

1220

Upper Prefilter Grille

502007980

$22.99

2000

Under Skid Plate

502007906

$111.49

2010

Black, Pop Rivet 3/16 X ,550

293150292

$1.05
