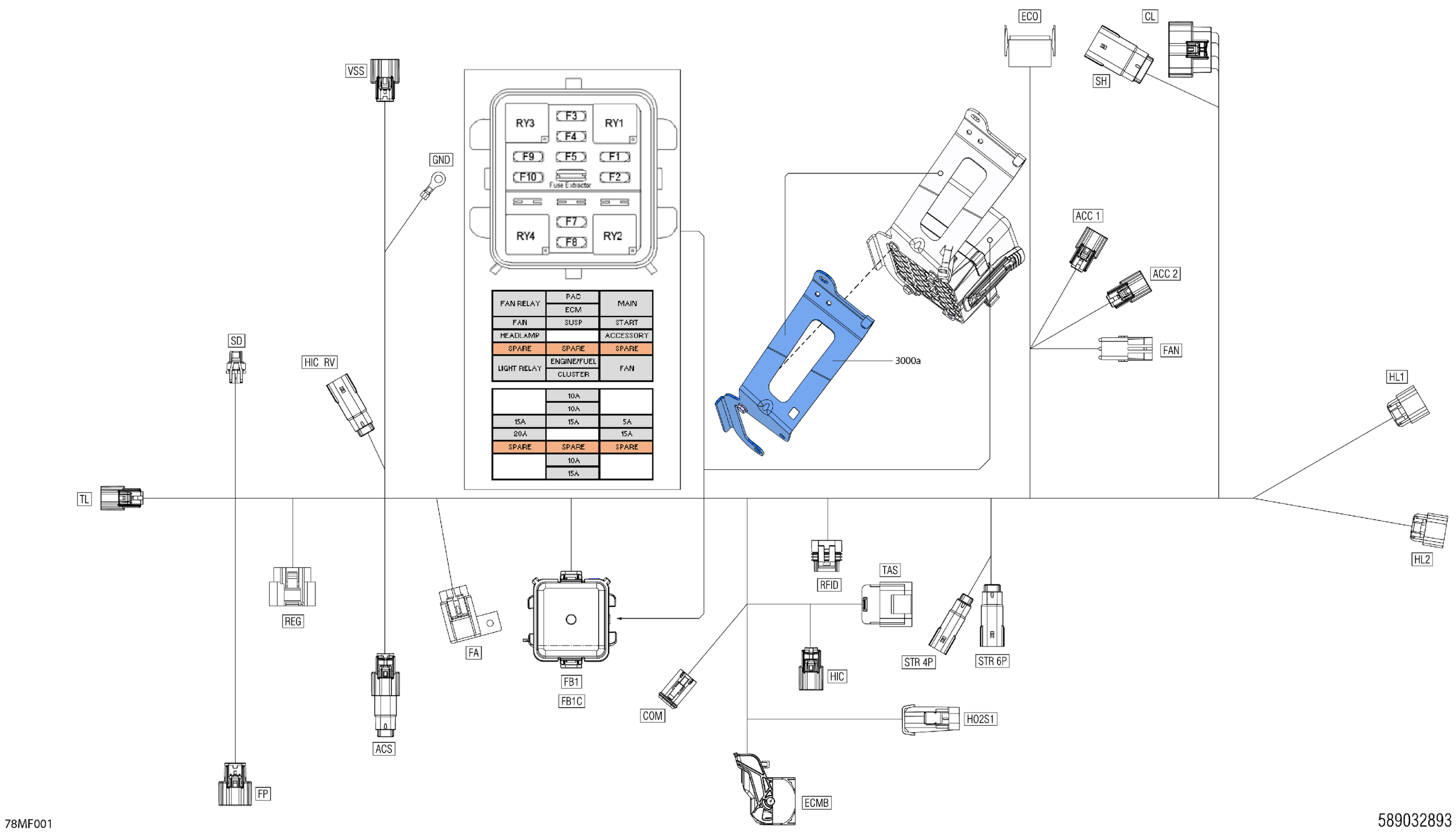

Ski-Doo SKANDIC - LE - 900 ACE - AHTA - Deep Black - 24X154X1.5CST Track, 2026 Electric - Main Harness - 515179737 Diagram

#

Description
Price

3000

Chassis Wiring Harness

515179737

$419.37

3000a

Fuse Box Support

515179652

$46.99

ACC1

2 Circuits Female Housing

278002853

$16.39

ACC1

Female Terminal

515178014

$1.92

ACC2

2 Circuits Female Housing

278002853

$16.39

ACC2

Female Terminal

515178014

$1.92

ACS

Coil Connector

515178202

$12.49

ACS

Housing 6 Circuits

278003866

$11.06

ACS

Sealing Cap

278002860

$1.42

ACS

Female Terminal

515178018

$0.78

ACS

Female Terminal

515178014

$1.92

CL

Female Housing 20 Circuits

278002858

$20.12

CL

Female Terminal

515178018

$0.78

CL

Female Terminal

515178014

$1.92

COM

Female Housing 6 Circuits

710002706

$16.22

COM

Lock

710002705

$3.61

COM

Female Terminal

710005438

$3.88

COM

Female Terminal

710005439

$4.15

ECMB

Cover

515178601

$14.27

ECMB

Housing 56 Circuits

515178595

$24.02

ECMB

Plate

515178604

$3.63

ECMB

Plate

515178604

$3.63

ECMB

Plug

515178599

$2.60

ECMB

Plate

515178603

$3.63

ECMB

Plate

515178603

$3.63

ECMB

Terminal

515178596

$3.30

ECMB

Terminal

515178598

$3.21

ECMB

Terminal

515178597

$12.65

ECO

4 Circuits Female Housing

515178175

$10.81

ECO

Female Terminal

515179481

$5.30

F1

Little Fuse, 5 Amperes

710000742

$7.24

F10

Little Fuse, 20 Amperes

710000746

$6.77

F2

Little Fuse, 15 Ampere

710000745

$6.77

F3

Little Fuse, 10 Amperes

710000744

$7.24

F4

Little Fuse, 10 Amperes

710000744

$7.24

F5

Little Fuse, 15 Ampere

710000745

$6.77

F7

Little Fuse, 10 Amperes

710000744

$7.24

F8

Little Fuse, 15 Ampere

710000745

$6.77

F9

Little Fuse, 15 Ampere

710000745

$6.77

FA

Fuse Holder Cap

278001326

$5.85

FA

Cushion

278000805

$3.12

FA

Fuse

710001613

$7.24

FA

Fuse Holder

278001325

$8.31

FA

Female Terminal

710000357

$5.85

FAN

Female Housing, 2 Circuits

278000217

$7.59

FAN

Wire Seal

278000218

$3.48

FAN

Male Terminal

409004300

$5.30

FB1

Fuse Puller

710000781

$8.29

FB1

Fuse Base Ass'y

278003448

$26.62

FB1

Seal Plug

278002880

$5.43

FB1

Wire Seal

278000218

$3.48

FB1

Wire Seal

278001065

$5.85

FB1

Female Terminal

710000890

$3.73

FB1

Female Terminal

710000918

$5.10

FB1

Female Terminal

278002578

$0.86

FB1C

Fuse Cover

515179053

$4.04

FB1C

Little Fuse, 10 Amperes

710000744

$7.24

FB1C

Little Fuse, 15 Ampere

710000745

$6.77

FB1C

Little Fuse, 20 Amperes

710000746

$6.77

FP

Female Housing

515178474

$32.06

FP

Female Terminal

515178018

$0.78

GND

Open Barrel Terminal

278001392

$4.00

HIC

Female Housing, 4 circuits

278003535

$24.60

HIC

Female Terminal

515178018

$0.78

HIC_RV

Molex Male Connector 8 Cavities

515178907

$10.61

HIC_RV

Male Terminal

515178013

$2.55

HL1

Female Housing

515178006

$13.27

HL1

Seal Wire

710001332

$2.72

HL1

Terminal

710001228

$2.72

HL2

Female Housing

515178006

$13.27

HL2

Seal Wire

710001332

$2.72

HL2

Terminal

710001228

$2.72

HO2S1

Clip

710000992

$3.88

HO2S1

Housing

710002466

$2.90

HO2S1

Lock

515178661

$4.15

HO2S1

Seal

278001482

$2.55

HO2S1

Gold Terminal

710002597

$2.90

HO2S1

Terminal

710000736

$5.19

REG

Female Housing, 3 Circuits

710000879

$21.42

REG

Seal

710001932

$3.06

REG

Seal

278003685

$13.40

REG

Terminal

710001934

$4.51

RFID

5 Circuits Male Housing Tab

278002330

$8.28

RFID

Female Terminal

710001119

$4.32

RY1

Relay

715900824

$16.22

RY2

Relay

715900824

$16.22

RY3

Relay

715900824

$16.22

RY4

Relay

715900824

$16.22

SD

Female Housing, 2 Circuits

515177192

$6.32

SD

Seal Wire

710001332

$2.72

SD

Terminal

710000925

$2.55

SD+

Terminal

515177214

$6.24

SH

Block 12

515178578

$11.18

SH

Male Terminal

515178013

$2.55

STR 4P

Male Housing Connector 4 Pins

515178347

$13.18

STR 4P

Male Terminal

515178013

$2.55

STR 6P

Housing 6 Circuits

278003866

$11.06

STR 6P

Male Terminal

515178013

$2.55

TAS

Clip

710000992

$3.88

TAS

Housing

710001231

$11.69

TAS

Seal

710001233

$2.55

TAS

Terminal

710001224

$2.93

TL

Female Housing Connector 4 Pins W/O CPA

515178346

$13.18

TL

Female Terminal

515178018

$0.78

TL

Female Terminal

515178014

$1.92

VSS

Housing

515178954

$34.30

VSS

Female Terminal

515178018

$0.78
