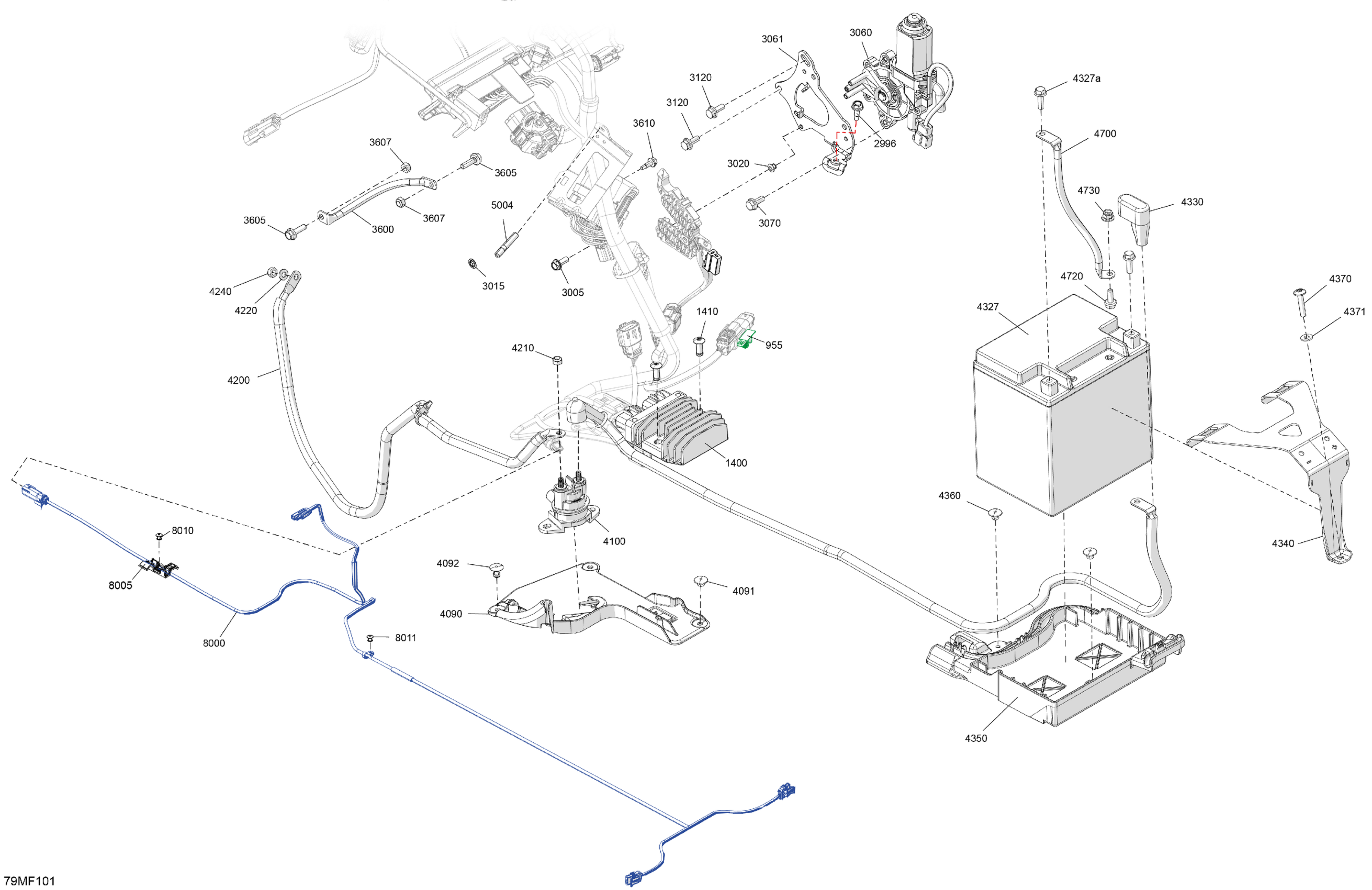

Ski-Doo SKANDIC - LE - 900 ACE - AHTA - Deep Black - 24X154X1.5CST Track, 2026 Electric - Lower Section Diagram

Description

Price

955

Connector Support

515179692

$1.63

1400

Voltage Regulator

710010539

$85.77

1410

Monobolt Rivet 6.4

293150182

$2.82

2996

Hex. Flange Screw M5 X 16

250000911

$0.70

3005

Hex. Flange Screw M6 X 16

250001062

$1.39

3015

Push Nut

250100034

$1.11

3020

Avdel Rivet

293150027

$2.30

3060

Motor Ass'y

515180200

$169.37

3061

Stop Plate

515179332

$24.60

3070

Hex. Flange Screw M6 X 16

207661644

$0.61

3120

Hex. Flange Screw M6 X 20

210262040

$2.00

3600

Ground Wire

515178338

$14.90

3605

Hex. Flange Screw M6 X 20

207662044

$1.66

3607

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

3610

Hex. Flange Screw M5 X 16

250000911

$0.70

4090

Starter Relay Support

515178244

$3.27

4091

Black, Pop Rivet 3/16 X ,425

293150291

$0.52

4092

Black, Pop Rivet 3/16 X ,550

293150292

$0.86

4100

Starter Relay

278003012

$35.07

4200

Battery Wire

515178336

$43.25

4210

Elastic Stop Nut M6

232561414

$1.78

4220

Flat Washer 6 mm

234061410

$1.04

4240

Elastic Stop Nut M6

232561414

$1.78

4327

Battery | Includes 900 to 900a

515176151

$174.17

4327a

Battery Bolt Kit

515176081

$5.10

4330

Protector Cap | STD

710001817

$10.51

4340

Battery Strip

515178658

$29.07

4350

Battery Support Under

515178659

$13.43

4360

Black, Pop Rivet 3/16 X ,425

293150291

$0.52

4370

Torx Truss Screw M6 X 30

250000843

$1.74

4371

Flat Washer

224061121

$0.44

4700

Cable

515178564

$18.63

4720

Hex. Flange Screw M6 X 16

207661644

$0.61

4730

Elastic Flange Nut M6 X 1.0

233261416

$1.74

5004

Stud Double End M5X0.8X26

515180121

$7.91

8000

Taillight Wiring Harness

515180014

$57.43

8005

Wiring Harness Support

515179630

$8.76

8010

Pop Rivet 3/16 X ,425

293150293

$0.26

8011

Pop Rivet 3/16 X ,425

293150293

$0.26
