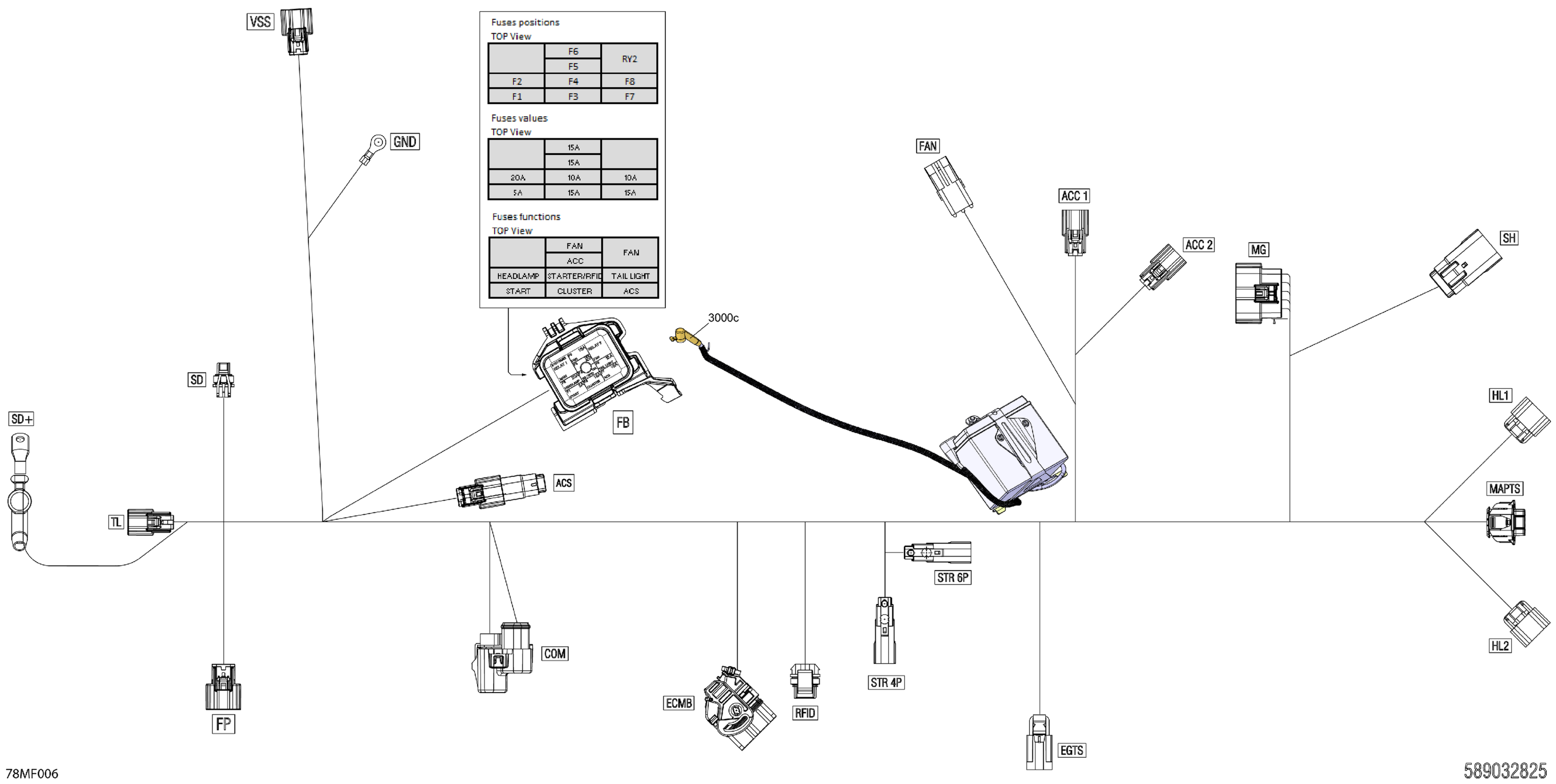

Ski-Doo SKANDIC - LE - 600R E -TEC - ALTB - Deep Black - 20X154X1.5CST Track, 2026 Electric - Main Harness - 515178956 Diagram

#

Description
Price

3000

Chassis Wiring Harness

515178956

$296.99

3000c

Battery Cable Cap

710003583

$5.87

ACC 1

2 Circuits Female Housing

278002853

$16.39

ACC 1

Female Terminal

515178014

$1.92

ACC 2

2 Circuits Female Housing

278002853

$16.39

ACC 2

Female Terminal

515178014

$1.92

ACS

Coil Connector

515178202

$12.49

ACS

Housing 6 Circuits

278003866

$11.06

ACS

Sealing Cap

278002860

$1.42

ACS

Female Terminal

515178018

$0.78

ACS

Female Terminal

515178014

$1.92

COM

Female Housing 6 Circuits

710002706

$16.22

COM

Lock

710002705

$3.61

COM

Female Terminal

710005438

$3.88

COM

Female Terminal

710005439

$4.15

ECMB

Cover, 48 positions

710001591

$10.05

ECMB

48 Circuits Female Housing

515178168

$43.25

ECMB

Plug

710001592

$2.06

ECMB

Female Terminal

710001727

$2.55

ECMB

Female Terminal

710001589

$1.79

ECMB

Female Terminal

710001590

$1.69

EGTS

Clip

293650187

$4.73

EGTS

Male Housing, 2 Circuits

515177204

$5.52

EGTS

Seal

710001233

$2.55

EGTS

Terminal

710001224

$2.93

F1

Little Fuse, 5 Amperes

710000742

$7.24

F2

Little Fuse, 20 Amperes

710000746

$6.77

F3

Little Fuse, 15 Ampere

710000745

$6.77

F4

Little Fuse, 10 Amperes

710000744

$7.24

F5

Little Fuse, 15 Ampere

710000745

$6.77

F6

Little Fuse, 15 Ampere

710000745

$6.77

F7

Little Fuse, 15 Ampere

710000745

$6.77

F8

Little Fuse, 10 Amperes

710000744

$7.24

FA

Cap

515178471

$6.58

FA

Cushion

278000805

$3.12

FA

Fuse

710001613

$7.24

FA

Fuse Holder

278001325

$8.31

FA

Female Terminal

710000357

$5.85

FAN

Female Housing, 2 Circuits

278000217

$7.59

FAN

Wire Seal

278000218

$3.48

FAN

Male Terminal

409004300

$5.30

FB

Case Ass'y with seal, 24 positions

278002824

$29.22

FB

Seal Plug

278002880

$5.43

FB

Wire Seal

278000218

$3.48

FB

Wire Seal

278001065

$5.85

FB

Female Terminal

710000918

$5.10

FB

Female Terminal

278002578

$0.86

FBC

Fuse Box Cover

515178963

$10.00

FBC

Little Fuse, 10 Amperes

710000744

$7.24

FBC

Little Fuse, 15 Ampere

710000745

$6.77

FBC

Little Fuse, 20 Amperes

710000746

$6.77

FP

Female Housing

515178474

$32.06

FP

Female Terminal

515178018

$0.78

GND

Open Barrel Terminal

278001392

$4.00

HL1

Female Housing

515178006

$13.27

HL1

Seal Wire

710001332

$2.72

HL1

Terminal

710001228

$2.72

HL2

Female Housing

515178006

$13.27

HL2

Seal Wire

710001332

$2.72

HL2

Terminal

710001228

$2.72

MAPTS

Male Connector

515176410

$51.97

MAPTS

Seal

415128501

$1.51

MAPTS

Female Terminal

710001137

$3.73

MG

Female Housing 20 Circuits

278002858

$20.12

MG

Female Terminal

515178018

$0.78

MG

Female Terminal

515178014

$1.92

RFID

Housing

710001161

$9.15

RFID

Wire Seal

710001163

$5.10

RFID

Female Terminal

710001164

$5.92

RY2

Relay

715900824

$16.22

SD

Female Housing, 2 Circuits

515177192

$6.32

SD

Seal Wire

710001332

$2.72

SD

Terminal

710000925

$2.55

SD+

Terminal

515177214

$6.24

SH

Block 12

515178578

$11.18

SH

Male Terminal

515178013

$2.55

STR 4P

Clip Connector

515178223

$1.63

STR 4P

Male Housing Connector 4 Pins

515178347

$13.18

STR 4P

Male Terminal

515178013

$2.55

STR 6P

Clip Connector

515178223

$1.63

STR 6P

Housing 6 Circuits

278003866

$11.06

STR 6P

Male Terminal

515178013

$2.55

TL

Female Housing Connector 4 Pins W/O CPA

515178346

$13.18

TL

Female Terminal

515178018

$0.78

TL

Female Terminal

515178014

$1.92

VSS

Housing

515178954

$34.30

VSS

Female Terminal

515178018

$0.78
