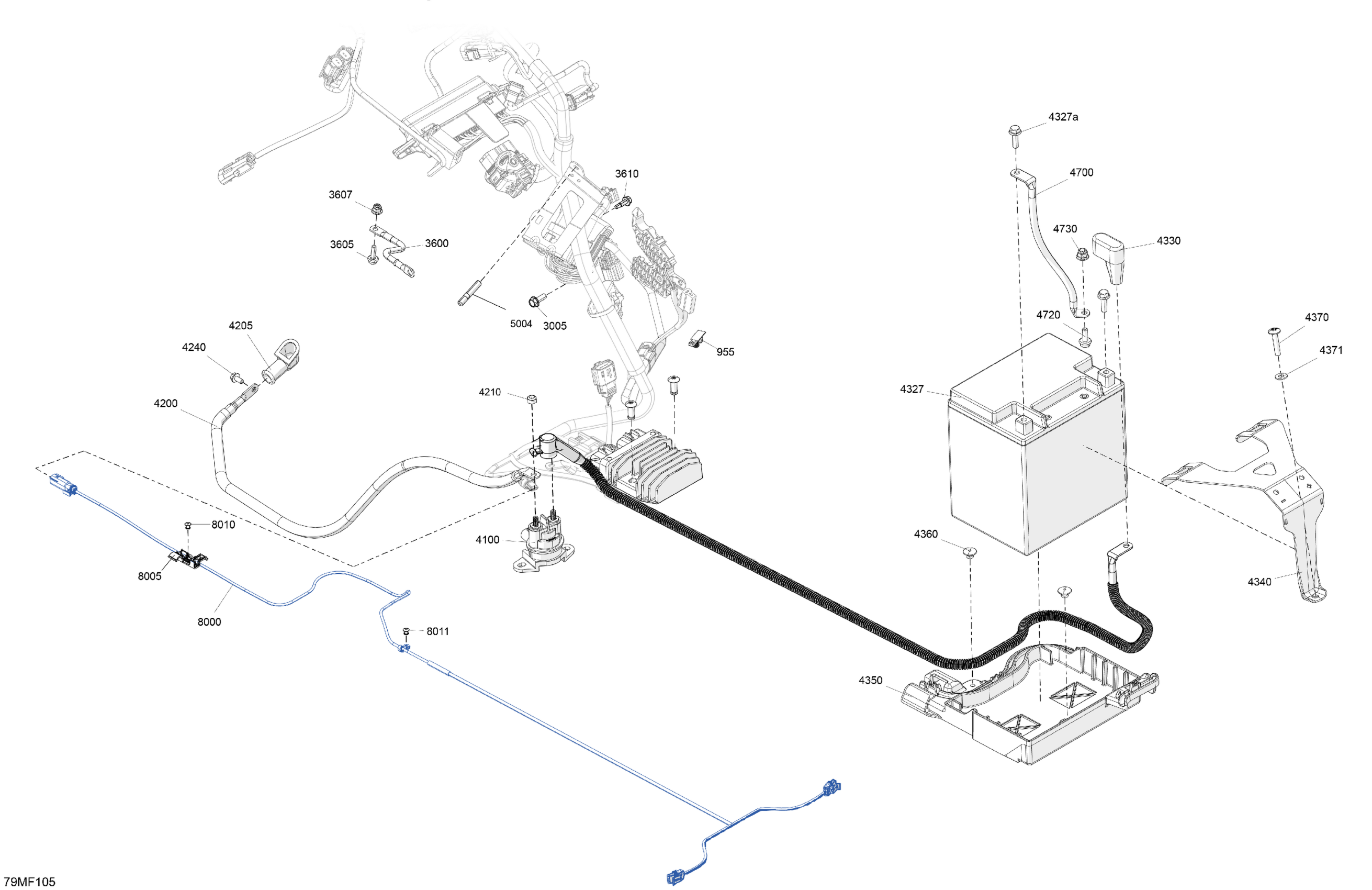

Ski-Doo SKANDIC - LE - 600R E -TEC - ALTA - Deep Black - 24X154X1.5CST Track, 2026 Electric - Lower Section Diagram

Description

Price

955

Connector Support

515179692

$1.63

3005

Hex. Flange Screw M6 X 16

250001062

$1.39

3600

Ground Wire

515178248

$23.10

3605

Hex. Flange Screw M6 X 20

207662044

$1.66

3607

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

3610

Hex. Flange Screw M5 X 16

250000911

$0.70

4100

Starter Relay

278003012

$35.07

4200

Positive Cable

515178919

$27.58

4205

Protector Cap

710000495

$9.84

4210

Elastic Stop Nut M6

232561414

$1.78

4240

Hex. Flange Screw M5 X 10

207551044

$3.38

4327

Battery | Includes 900 to 900a

515176151

$174.17

4327a

Battery Bolt Kit

515176081

$5.10

4330

Protector Cap | STD

710001817

$10.51

4340

Battery Strip

515178658

$29.07

4350

Battery Support Under

515178659

$13.43

4360

Black, Pop Rivet 3/16 X ,425

293150291

$0.52

4370

Torx Truss Screw M6 X 30

250000843

$1.74

4371

Flat Washer

224061121

$0.44

4700

Cable

515178564

$18.63

4720

Hex. Flange Screw M6 X 16

207661644

$0.61

4730

Elastic Flange Nut M6 X 1.0

233261416

$1.74

5004

Stud Double End M5X0.8X26

515180121

$7.91

8000

Taillight Wiring Harness

515180014

$57.43

8005

Wiring Harness Support

515179630

$8.76

8010

Pop Rivet 3/16 X ,425

293150293

$0.26

8011

Pop Rivet 3/16 X ,425

293150293

$0.26
