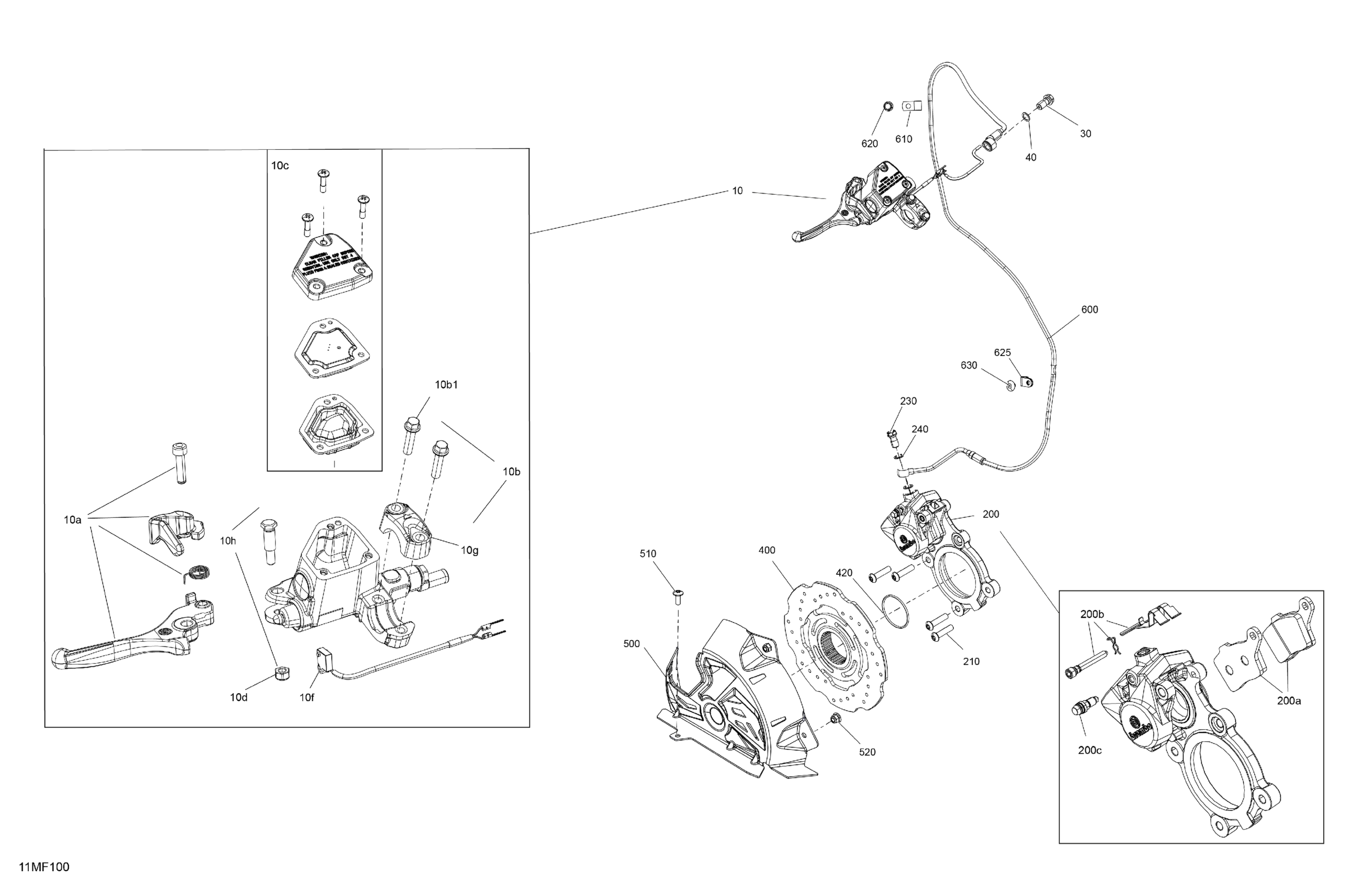

Ski-Doo SKANDIC - LE - 600R E -TEC - ALTA - Deep Black - 24X154X1.5CST Track, 2026 Mechanic - Brakes Diagram

Description

Price

Brake Master Cylinder | Includes 10 to 10h

507032689

$339.99

10a

Parking Brake Lever

507032739

$96.99

10b

Mounting Clamp | Includes 10b to 10b1

507032736

$24.99

10b1

Hex Flange Screw M6 X 25

229000652

$2.11

10c

Reservoir Cover Kit

507032737

$109.99

10d

Nut

507032743

$10.16

10f

Micro Switch

507032738

$72.99

10g

Mounting Clamp

507032761

$24.99

10h

Pin Ass'y

415030000

$19.99

Banjo Bolt

507032551

$5.61

Washer

414920600

$1.90

200

Brake Caliper | Includes 200 to 200c

507032720

$349.49

200a

Brake Pads Kit

507032473

$52.99

200b

Brake Spring Kit

507032722

$37.99

200c

Bleeder

507032475

$19.99

210

Hex. Button Head Screw M8 X 1.25 X 35

250000764

$2.00

230

Banjo Bolt

507032551

$5.61

240

Washer

414920600

$1.90

400

Disc

507032487

$185.49

420

O Ring

293300221

$1.68

500

Deep Black, Brake Disc Guard

507032770

$48.99

510

Torx Head Screw M6 X 16

250000717

$2.11

520

Hex. Flange Elastic Nut M6

233261466

$2.00

600

Brake Hose

507032632

$56.99

610

Open Clamp

414108400

$3.17

620

Hex. Flange Screw M6 X 10

210261040

$1.48

625

Hose Clamp

293650257

$5.99

630

Blind Rivet 3/16

293150231

$0.32
