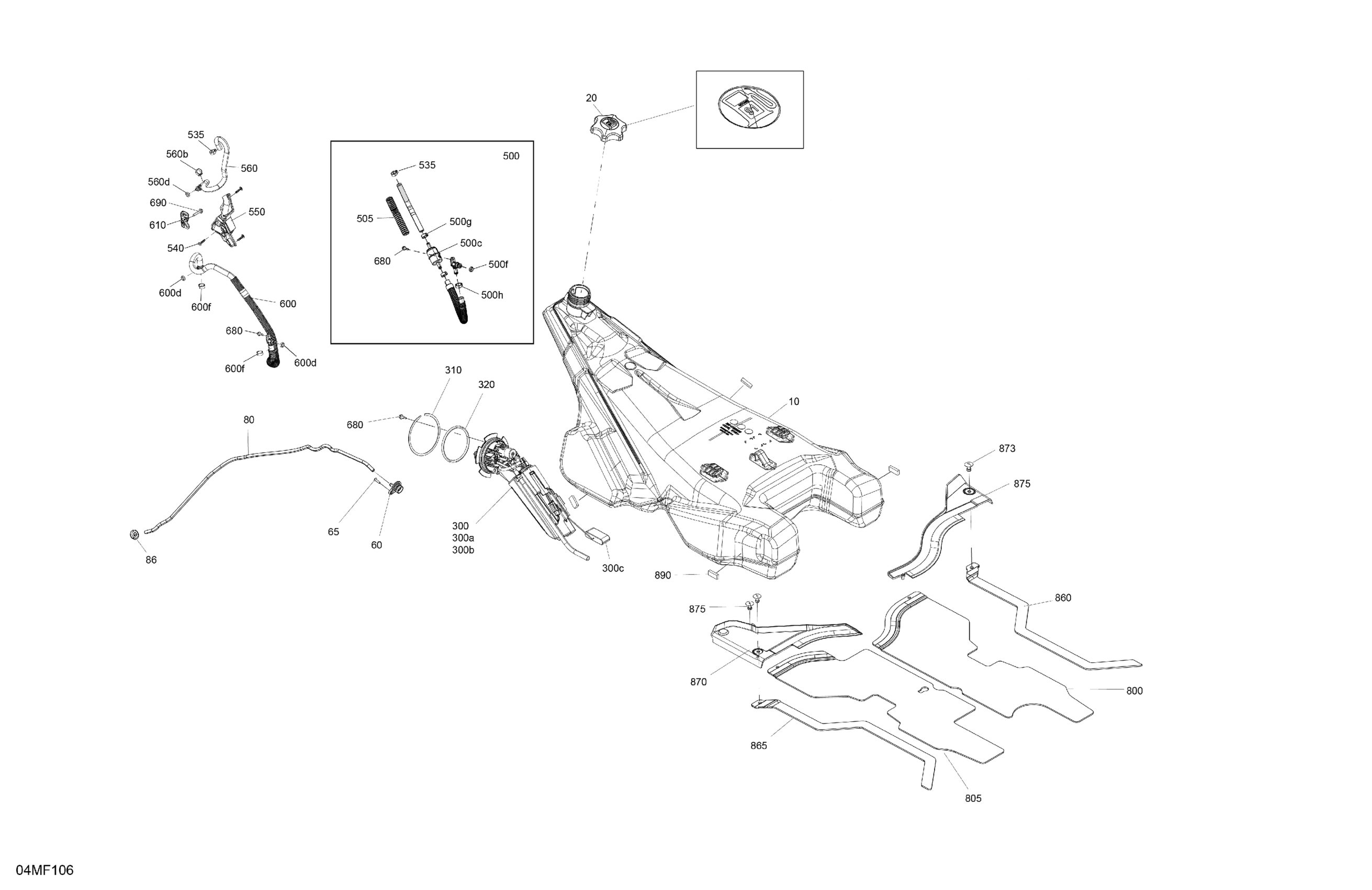

Ski-Doo SKANDIC - LE - 600R E -TEC - ALTA - Deep Black - 24X154X1.5CST Track, 2026 Engine - Fuel Diagram

Description

Price

Fuel Tank

513034141

$280.57

Fuel Tank Cap

513034169

$22.36

Check Valve

513033849

$34.30

Truss Torx Screw K40 X 16

250000918

$2.00

Polyurethane Hose 10000Mm Long

219704410

$46.12

Grommet

705003264

$3.43

300

Fuel Pump Ass'y | Includes 300 to 300c

513034082

$249.97

300a

Canister

415130507

$78.33

300b

Filter

415130508

$38.78

300c

Fuel Level Sensor

415130727

$132.81

310

Circlip

513034097

$12.45

320

O-Ring

513033862

$17.13

500

Hose Ass'y | Includes 500 to 500h

513034256

$116.39

500c

Fuel Filter

513034047

$35.99

500f

O-Ring

513033668

$9.16

500g

Crimp Clamp, 15.3-706R

293650047

$2.64

500h

Crimp Clamp

293650053

$2.42

505

Tubing 16 Mm 1000Mm Long

219704408

$6.23

535

Crimp Clamp, 15.3-706R

293650047

$2.64

540

Torx Screw Truss Head K50X20 T20

250000760

$1.74

550

Hose Guide

513034204

$7.21

560

Fuel Tank Hose Ass'y | Includes 560 to 560d

513034251

$53.70

560b

Crimp Clamp

293650053

$2.42

560d

O-Ring

513033668

$9.16

600

Hose Ass'y | Includes 600 to 600f

513034250

$71.61

600d

O-Ring

513033668

$9.16

600f

Crimp Clamp

293650053

$2.42

610

Molded Hose Support

513034194

$5.31

680

Hex. Flange Screw M5 X 16

250000911

$0.70

690

Hex.Flange Screw M5 X 28 S.Grip

207552844

$5.06

800

RH Protective Foam

513034186

$10.45

805

LH Protective Foam

513034185

$10.45

860

RH Foam

513033981

$4.30

865

LH Foam

513033982

$4.30

870

LH Guide Ass'y

513033978

$9.34

873

RH Guide Ass'y

513033979

$9.34

875

Black, Pop Rivet 3/16 X ,550

293150292

$0.86

890

Tank Guard

513034038

$3.91
