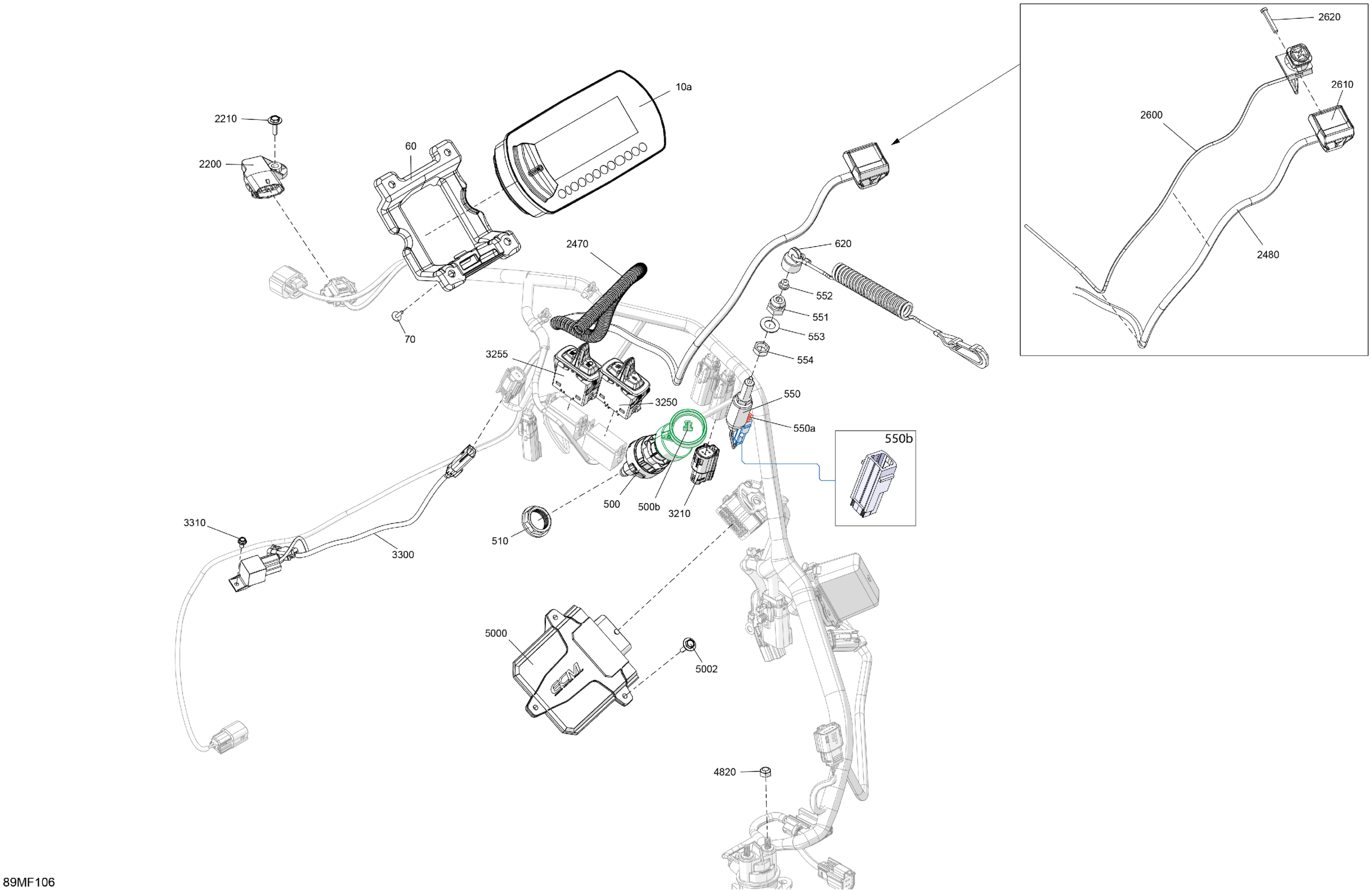

Ski-Doo SKANDIC - LE - 600 EFI - ATTB - Deep Black - 20X154X1.5CST Track, 2026 Electric - Upper Section Diagram

Description

Price

10a

2 Button Multifunction Gauge Full Size Color

515178226

$557.66

Housing

515178450

$5.22

Screw M4 X 16

250000725

$2.87

500

Ignition Switch | Includes 210 to 210b

710007324

$62.69

500b

Blank Ignition Key

715900934

$17.66

510

Specialized Nut

710007923

$2.05

550

Brake Switch

515175653

$15.57

550a

Male Terminal

515175232

$1.49

550b

Male Terminal Housing, 2 Circuits

515175654

$7.48

551

Switch Nut

515145900

$10.83

552

Plunger Cap

570151100

$10.14

553

Flat Washer

250200084

$2.76

554

RH Threaded Hex. Jam Nut M10

732610010

$0.72

620

Cap Ass'y

515178283

$37.66

2200

Pressure And Temperature Sensor

707000995

$70.82

2210

Screw M4 X 16

250000725

$2.87

2470

Sheath Corrugated 9 MM ID

515178885

$1.45

2480

Braided Sleeve

415130141

$56.12

2600

Emergency Stop Switch

515179472

$76.89

2610

Clamp

515179182

$8.60

2620

Screw PT. Socket T10 K30 X 16

250001201

$3.20

3210

4 Circuits Female Housing

515178177

$11.89

3250

Switch Rocker Hand Warmer

515178462

$19.20

3255

Switch Rocker Headlignt

515178463

$19.20

3300

Fan Wiring Harness

515178805

$51.51

3310

Hex. Flange Screw M5 X 10

207551044

$3.38

4820

Elastic Stop Nut M6

232561414

$1.55

5000

ECM Module

515179453

$309.97

5002

Screw M4 X 16

250000725

$2.87
