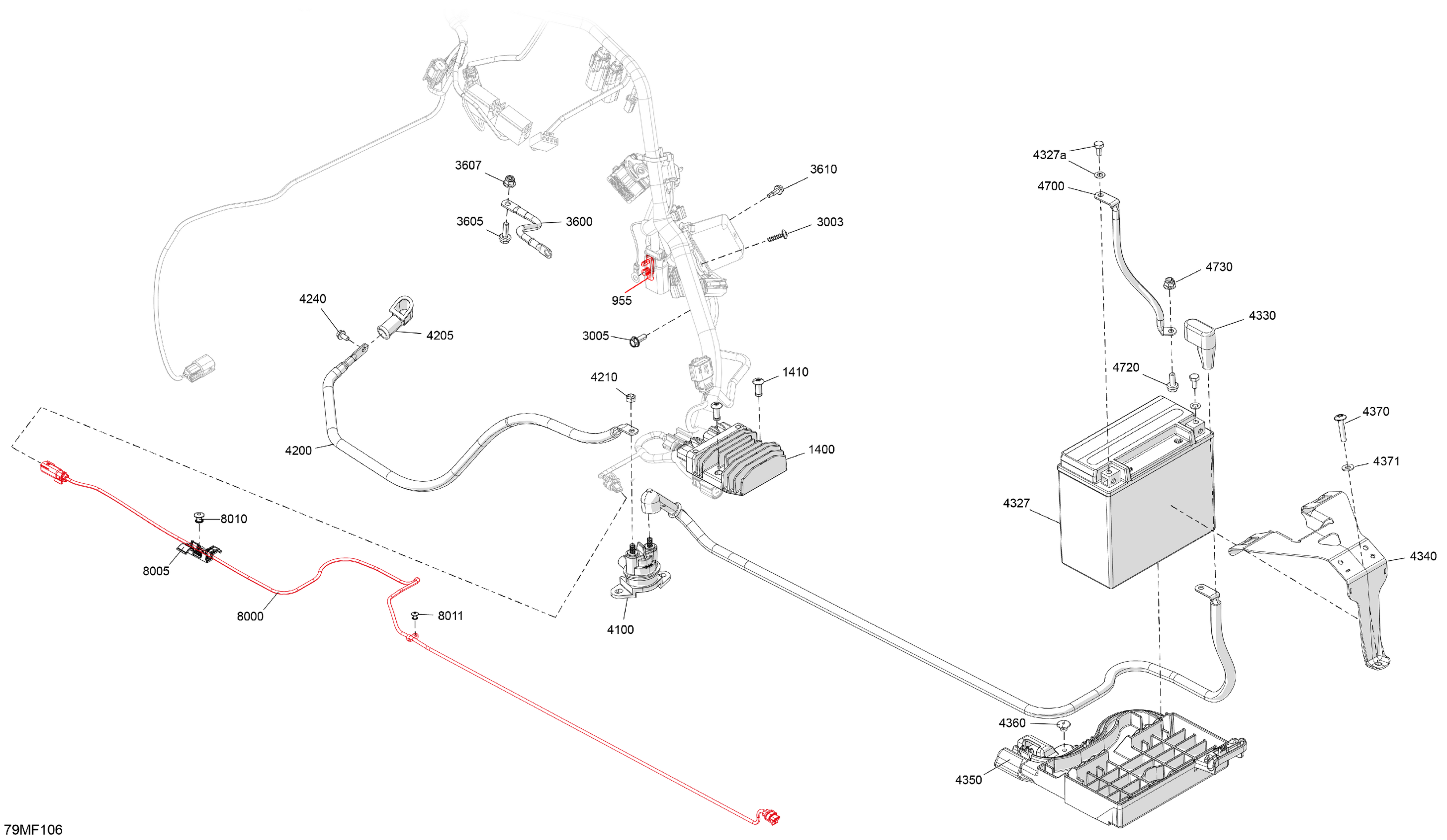

Ski-Doo SKANDIC - LE - 600 EFI - ATTB - Deep Black - 20X154X1.5CST Track, 2026 Electric - Lower Section Diagram

Description

Price

955

Connector Support

515179692

$1.63

1400

Voltage Regulator

710010539

$85.77

1410

Monobolt Rivet 6.4

293150182

$2.91

3003

Torx Screw Truss Head K50X20 T20

250000760

$1.74

3005

Hex. Flange Screw M6 X 16

250001062

$1.43

3600

Ground Wire

515178248

$23.82

3605

Hex. Flange Screw M6 X 20

207662044

$1.66

3607

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

3610

Hex. Flange Screw M5 X 16

250000911

$0.70

4100

Starter Relay

278003012

$35.07

4200

Positive Cable

515178919

$28.43

4205

Protector Cap

710000495

$10.14

4210

Elastic Stop Nut M6

232561414

$1.55

4240

Hex. Flange Screw M5 X 10

207551044

$3.38

4327

12 Volt 20ah Battery | Includes 3k to 3k1

715900973

$101.37

4327a

Battery Bolt Kit

715500541

$3.39

4330

Protector Cap | STD

710001817

$10.83

4340

Battery Strip

515178695

$29.97

4350

Battery Support Under

515178690

$13.77

4360

Black, Pop Rivet 3/16 X ,425

293150291

$0.54

4370

Torx Truss Screw M6 X 30

250000843

$1.74

4371

Flat Washer

224061121

$0.44

4700

Cable

515178564

$19.20

4720

Hex. Flange Screw M6 X 16

207661644

$0.61

4730

Elastic Flange Nut M6 X 1.0

233261416

$1.74

8000

Taillight Wiring Harness

515180014

$59.20

8005

Wiring Harness Support

515179630

$9.03

8010

Pop Rivet 3/16 X ,425

293150293

$0.26

8011

Pop Rivet 3/16 X ,425

293150293

$0.26
