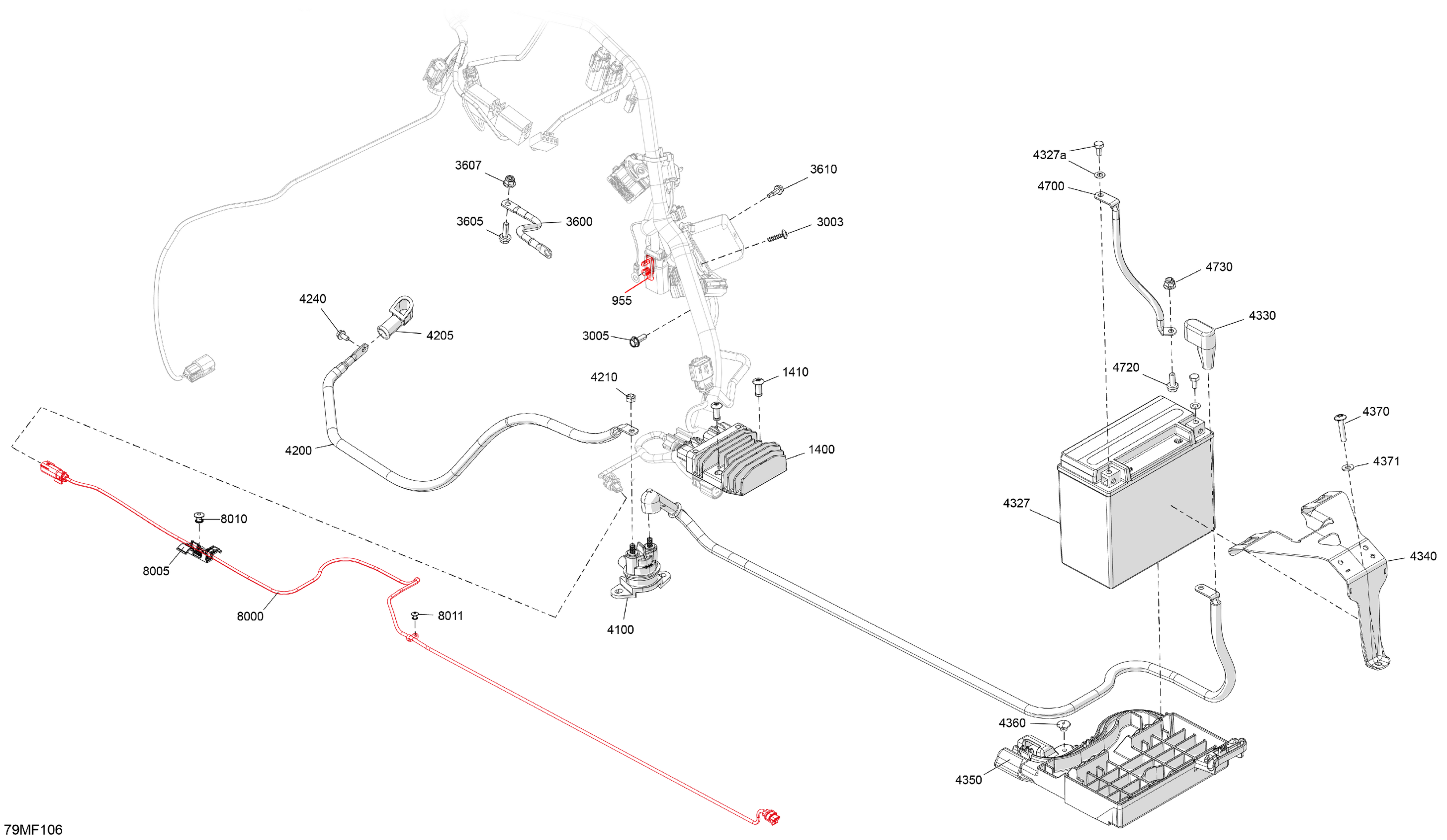

Ski-Doo North America - SKANDIC - LE - 600 EFI - ATTB - Deep Black - 20X154X1.5CST Track, 2026 08- Electric - Lower Section Diagram

Description

Price

955

Connector Support

515179692

$2.09

1400

Voltage Regulator

710010539

$103.99

1410

Monobolt Rivet 6.4

293150182

$3.09

3003

Torx Screw Truss Head K50X20 T20

250000760

$2.11

3005

Hex. Flange Screw M6 X 16

250001062

$1.57

3600

Ground Wire

515178248

$24.99

3605

Hex. Flange Screw M6 X 20

207662044

$2.00

3607

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

3610

Hex. Flange Screw M5 X 16

250000911

$0.85

4100

Starter Relay

278003012

$42.49

4200

Positive Cable

515178919

$29.99

4205

Protector Cap

710000495

$10.99

4210

Elastic Stop Nut M6

232561414

$0.55

4240

Hex. Flange Screw M5 X 10

207551044

$4.12

4327

12 Volt 20ah Battery | Includes 3k to 3k1

715900973

$146.94

4327a

Battery Bolt Kit

715500541

$3.29

4330

Protector Cap | STD

710001817

$11.12

4340

Battery Strip

515178695

$31.99

4350

Battery Support Under

515178690

$14.99

4360

Black, Pop Rivet 3/16 X ,425

293150291

$0.56

4370

Torx Truss Screw M6 X 30

250000843

$2.11

4371

Flat Washer

224061121

$0.53

4700

Cable

515178564

$20.99

4720

Hex. Flange Screw M6 X 16

207661644

$0.74

4730

Elastic Flange Nut M6 X 1.0

233261416

$2.11

8000

Taillight Wiring Harness

515180014

$58.99

8005

Wiring Harness Support

515179630

$11.01

8010

Pop Rivet 3/16 X ,425

293150293

$0.35

8011

Pop Rivet 3/16 X ,425

293150293

$0.35
