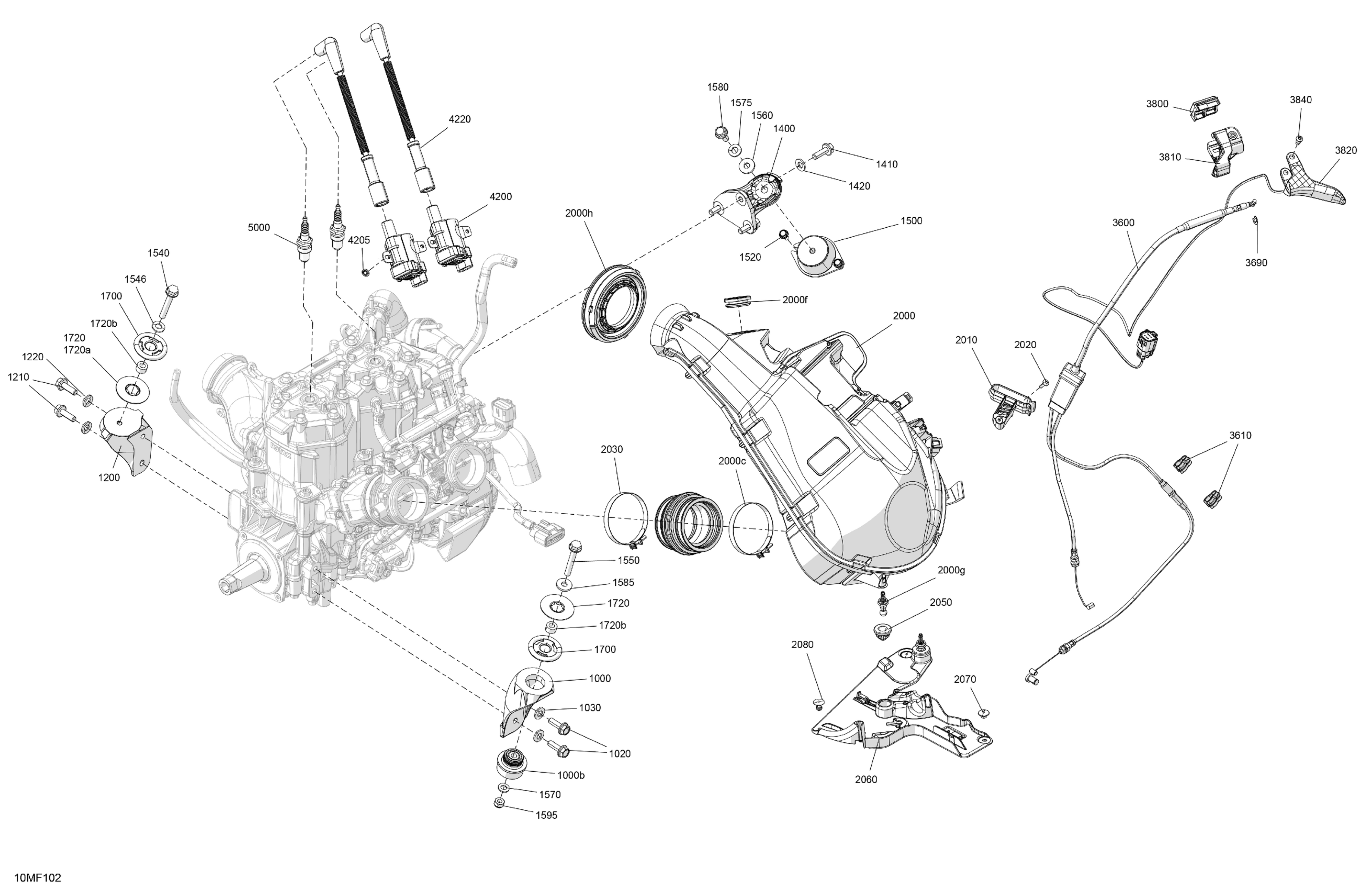

Ski-Doo SKANDIC - LE - 600 EFI - ATTB - Deep Black - 20X154X1.5CST Track, 2026 Engine - System Diagram

Description

Price

1000

Rear PTO Support Ass'y | Includes 1000 to 1000b

512061517

$77.99

1000b

Vibration Damper

512061516

$62.99

1020

Hex Flange Screw M8 X 25 S.Grip

250001016

$1.49

1030

Conical Spring Washer M8

250200146

$1.49

1200

Front PTO Support

512061025

$32.99

1210

Hex Flange Screw M8 X 25 S.Grip

250001016

$1.49

1220

Conical Spring Washer M8

250200146

$1.49

1400

MAG Support

512061027

$39.99

1410

Hex Flange Screw M8 X 25 S.Grip

250001016

$1.49

1420

Conical Spring Washer M8

250200146

$1.49

1500

Rubber Mount

512061514

$75.99

1520

Hex. Flange Screw M6 X 16

250001062

$1.59

1540

Hex. Flange Screw M8 X 55

207585544

$1.69

1546

Conical Spring Washer M8

250200146

$1.49

1550

Hex. Flange Screw M8 X 55

207585544

$1.69

1560

Yellow, Washer

503183200

$3.29

1570

Flat Washer With Teflon 8 mm

250200008

$3.89

1575

Conical Spring Washer M8

250200146

$1.49

1580

Hex. Flange Screw M8 X 25

207682544

$1.49

1585

Yellow, Washer

503183200

$3.29

1595

Hex. Elastic Stop Nut M8

232581414

$1.49

1700

Engine Stopper

512061137

$8.79

1720

Spacer | Includes 1720 to 1720b

512061300

$10.99

1720a

Spacer | Includes 1720 to 1720b

512061300

$10.99

1720b

Spacer

512061198

$2.19

2000

Primary Chamber Ass'y | Includes 2000 to 2000h

508001255

$97.99

2000c

GEMI Clamp

293650212

$7.79

2000f

Rubber

512061083

$9.09

2000g

Screw

420441840

$2.19

2000h

Boot

508000805

$18.49

2010

Cable Guide

512061325

$1.49

2020

Torx-Truss Pt K40 X 16

250000759

$2.19

2030

GEMI Clamp

293650212

$7.79

2050

Rubber Cap

420201630

$4.49

2060

Primary Chamber Support

512061627

$4.29

2070

Black, Pop Rivet 3/16 X ,425

293150291

$1.49

2080

Black, Pop Rivet 3/16 X ,550

293150292

$1.49

3600

Throttle Cable

512061442

$66.99

3610

Throttle Cable Holder

512061521

$1.99

3690

Circlip

414274500

$1.49

3800

Upper Housing

512060859

$9.09

3810

Lower Housing

512060860

$17.49

3820

Throttle Ass'y

512061266

$129.99

3840

Flange Screw M5x12

250000991

$7.69

4200

Ignition Coil

512061358

$109.99

4205

Push Nut

389804300

$1.49

4220

Spark Plug Cable Ass'y

512061631

$28.99

5000

Spark Plug NGK BPR8ES

415130429

$4.99
