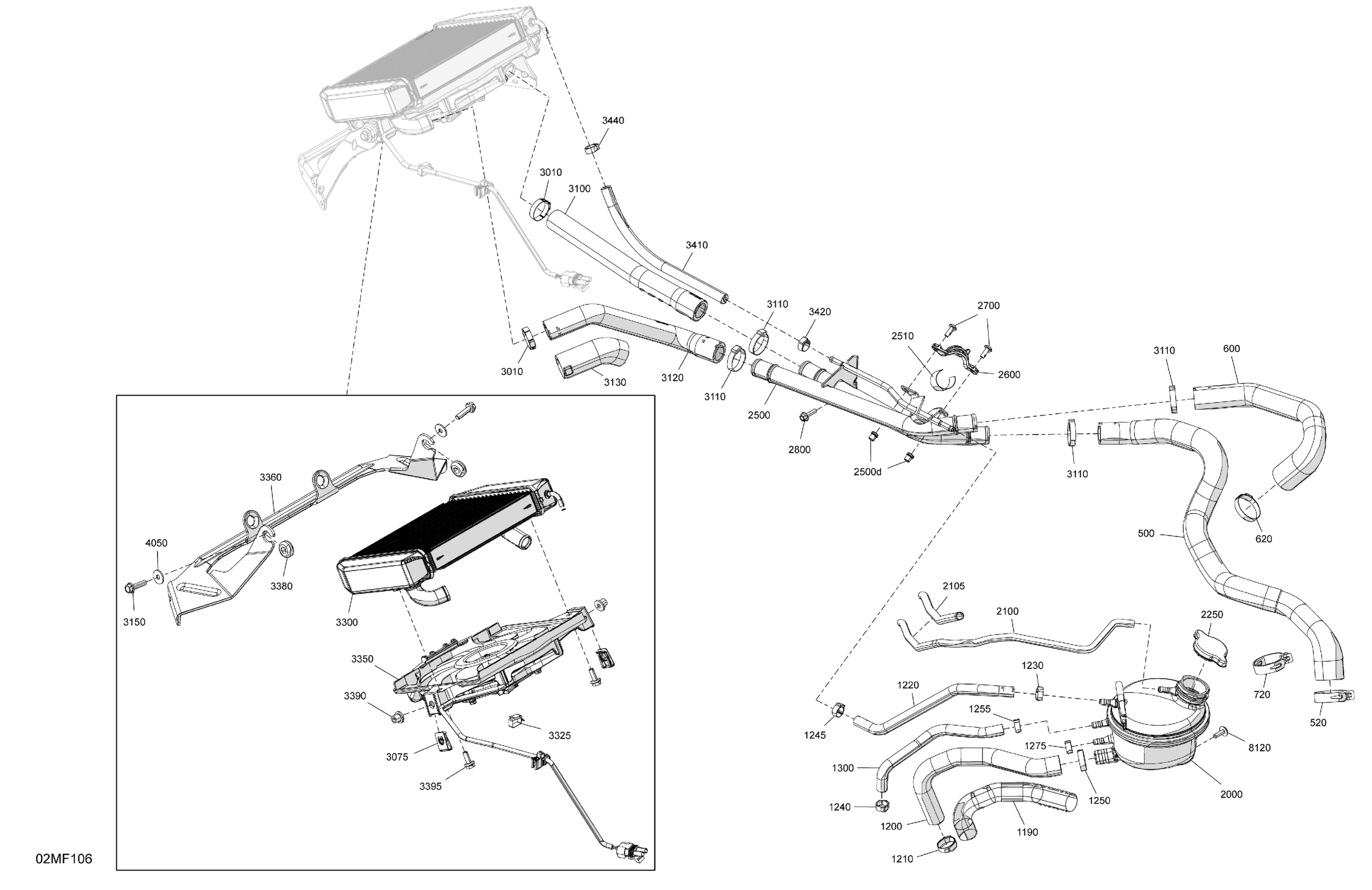

Ski-Doo SKANDIC - LE - 600 EFI - ATTB - Deep Black - 20X154X1.5CST Track, 2026 Engine - Cooling Diagram

Description

Price

500

Thermostat Hose

509001456

$29.07

520

Norma Spring Clamp

293650264

$4.15

600

Hose

509001460

$14.90

620

Oetiker Clamp

293650306

$8.40

720

Norma Spring Clamp

293650264

$4.15

1190

Protector Tube 32 Mm 1000Mm Long

219704421

$24.60

1200

Hose

509001462

$14.90

1210

Oeticker Gear Clamp, 25.6-706R

509000442

$4.12

1220

Hose

509001461

$14.90

1230

Oetiker Clamp

293650046

$2.33

1240

Oetiker Clamp

293650046

$2.33

1245

Oetiker Gear Clamp

293650025

$2.46

1250

Oetiker Clamp

509001041

$1.87

1255

Oetiker Clamp

293650046

$2.33

1275

Oetiker Clamp

293650046

$2.33

1300

Hose

509001457

$14.90

2000

Coolant Tank

509001261

$82.81

2100

Hose 6 Mm 15000Mm Long

219704360

$104.62

2105

Protector Tube

504153074

$12.21

2250

Radiator Pressure Cap

509000180

$11.69

2500

Coolant Pipe | Includes 2500 to 2500d

861805545

$33.55

2500d

Insert M5 X 0.8

293450268

$1.90

2510

Protector

512061214

$2.00

2600

Clamp

509001379

$3.96

2700

Torx Screw M5 X 14

250000742

$1.20

2800

Hex. Flange Screw M5 X 20, Scotch Grip

207552044

$4.12

3010

Crimp Clamp

293650099

$3.55

3075

Panel Nut M6 X 1.0

250100208

$1.07

3100

Hose

509001459

$17.13

3110

Crimp Clamp

293650331

$4.15

3120

Hose

509001458

$17.13

3130

Protector Tube

707001349

$18.63

3150

Hex. Flange Screw M6 X 25

207562544

$1.39

3300

Radiator

509001464

$194.75

3325

Clip

710010204

$1.40

3350

Fan Ass'y

509001301

$215.64

3360

Support

509001242

$67.13

3380

Overmolded Grommet

293720130

$4.25

3390

Bushing

293900151

$5.33

3395

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

3410

Hose 6,35 Mm Id 4000Mm Long

219704547

$10.00

3420

Oetiker Gear Clamp

293650025

$2.46

3440

Oetiker Clamp

293650042

$1.40

4050

Flat Washer

250200082

$0.35

8120

Torx Truss Screw M6 X 16

250000721

$1.39
