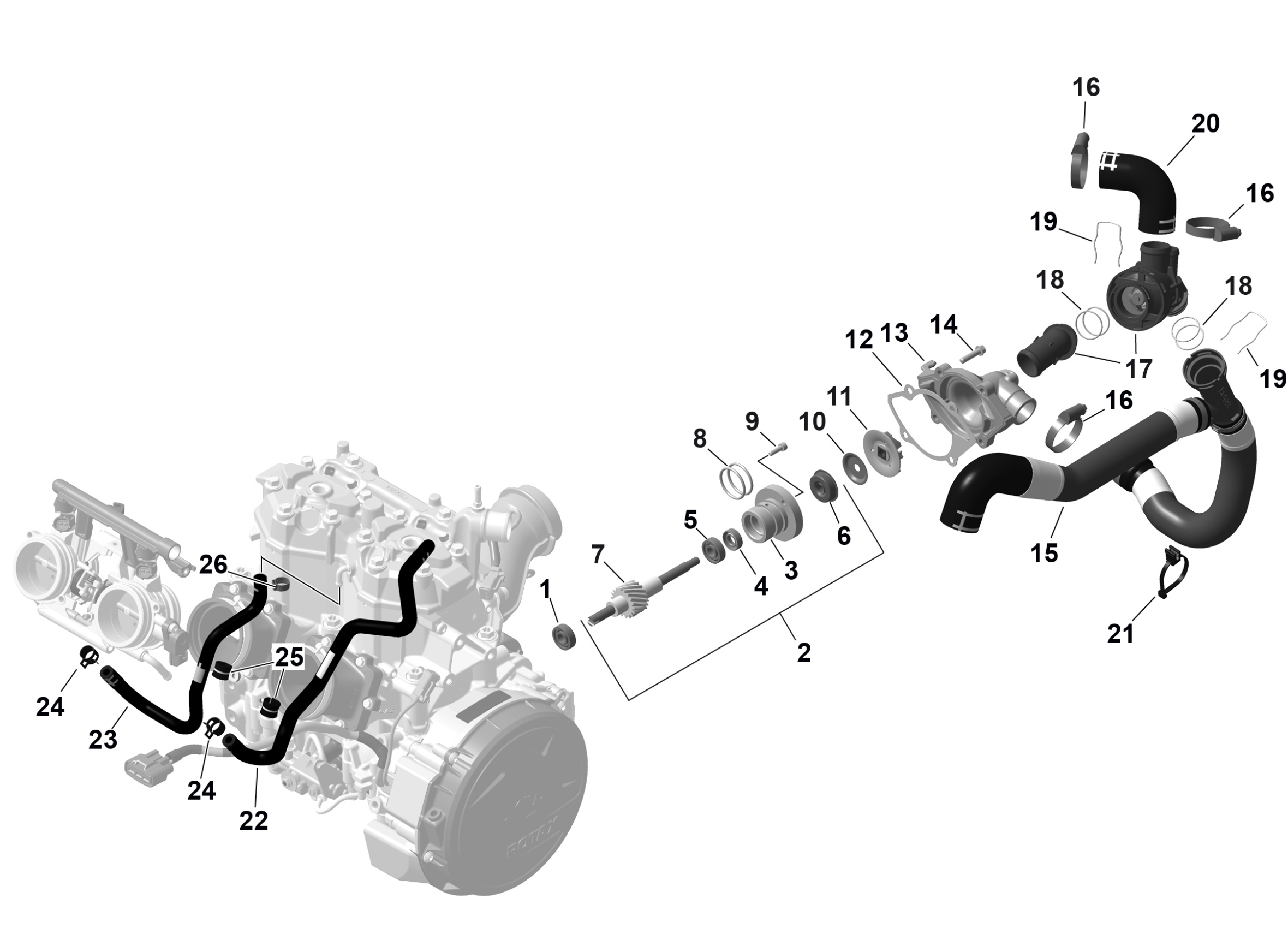

Ski-Doo SKANDIC - LE - 600 EFI - ATTB - Deep Black - 20X154X1.5CST Track, 2026 ROTAX - Engine Cooling Diagram

Description

Price

Ball Bearing

420232100

$20.99

Water Pump Shaft Ass'y | Except SHOT This part replaces 420891479.

420891483

$291.49

Step Collar

420847933

$39.99

Oil Seal

420230198

$15.99

Ball Bearing

420232100

$20.99

Rotary Seal

420650371

$44.99

Water Pump Shaft

420837681

Unavailable

O-Ring

420950890

$4.49

Allen Screw M5 x 16

420840514

$1.99

Cover Washer

420944035

$5.49

Impeller

420222507

$19.99

Gasket | Included in gasket kit

420931813

$13.99

Water Pump Housing

420933633

$63.99

Torx Flange Screw M6 X 25

420440234

$3.09

Molded Hose This part replaces 420822803.

420822805

$75.99

Clamp 26-38MM

420951120

$4.29

Thermostat Housing | Includes 17 to 18

420822836

$76.99

O-Ring

420430062

$2.19

Spring Clip

420939344

$2.19

Return Hose

420822820

$11.99

Tie Rap 200 X 4.6

420951652

$7.79

Molded Hose

420201516

$11.99

Molded Hose

420201512

$11.49

Clamp

420853511

$7.69

Clamp

420851250

$10.99

Clamp

420851458

$7.59
