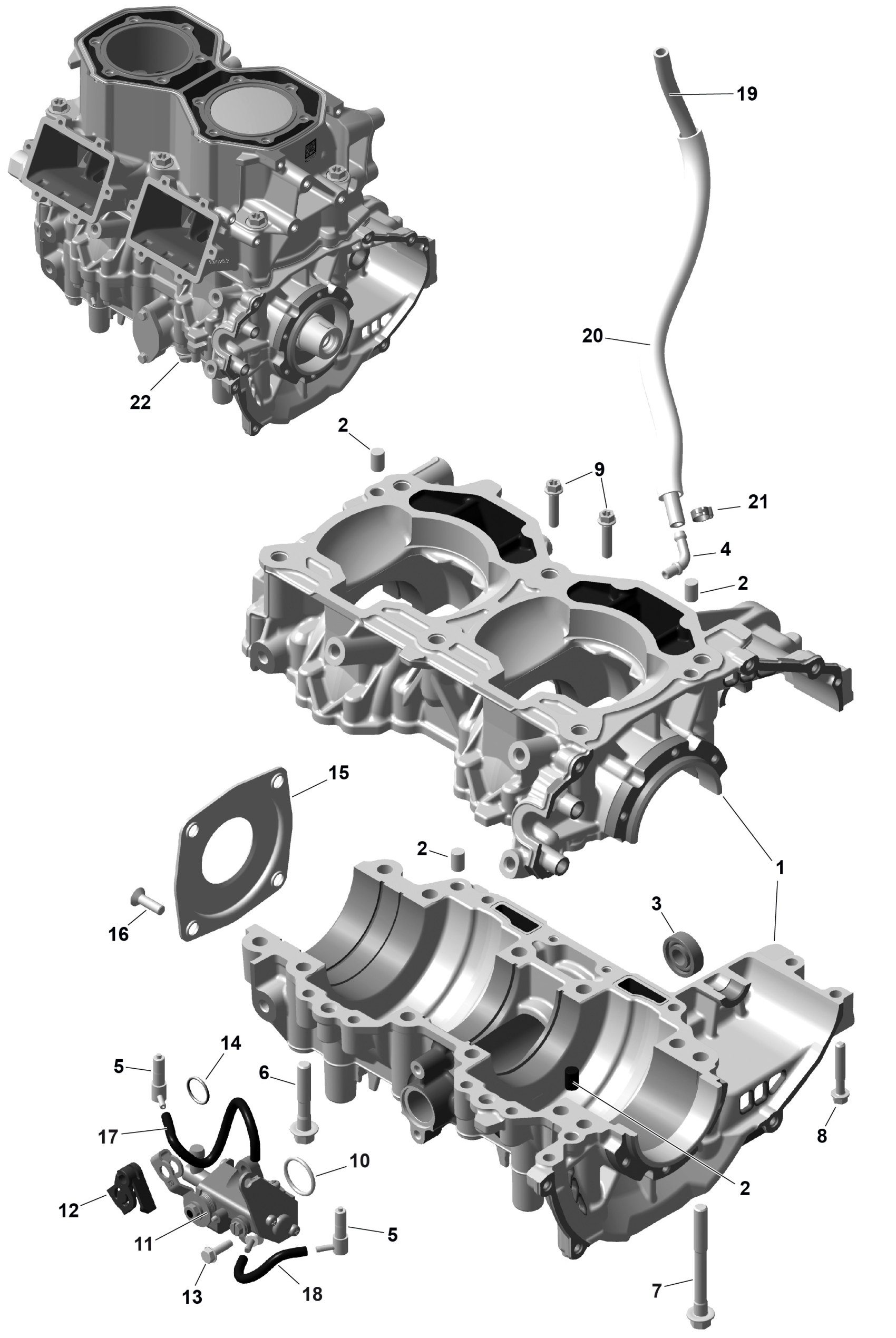

Ski-Doo SKANDIC - LE - 600 EFI - ATTB - Deep Black - 20X154X1.5CST Track, 2026 ROTAX - Crankcase Diagram

#

Description
Price

1

Crankcase Ass'y | Includes no. 1-6

420686664

$1,139.99

2

Center Pin 8 X 12

420632014

$3.99

3

Ball Bearing

420232100

$20.99

4

Impulse Fitting

420924529

$8.79

5

Check Valve

420956511

$36.99

6

Collar Hex Screw M8 X 45

420640433

$2.09

7

Collar Hex Screw M8 X 75

420640833

$2.09

8

Torx Flange Screw M6 X 35

420440274

$1.49

9

Torx Flange Screw M6 X 25

420440234

$3.09

10

O-Ring

420430373

$3.29

11

Oil Pump Ass'y | Includes no. 11-12

420888781

$419.99

12

Lever

420260171

$1.49

13

Taptite Screw M5 X 16

420941926

$1.49

14

O-Ring

420430110

$4.49

15

Oil Seal Cover

420812422

$15.49

16

Screw M6 X 20

420941436

$3.29

17

Oil Line 150MM

420960043

$3.29

18

Oil Hose This part replaces 420201241.

414413800

Unavailable

19

Oil Line 310MM

420201551

$7.69

20

Protector Tube

420460047

$14.49

21

Clamp

420853653

$7.59

22

Short Block

420059834

Unavailable
