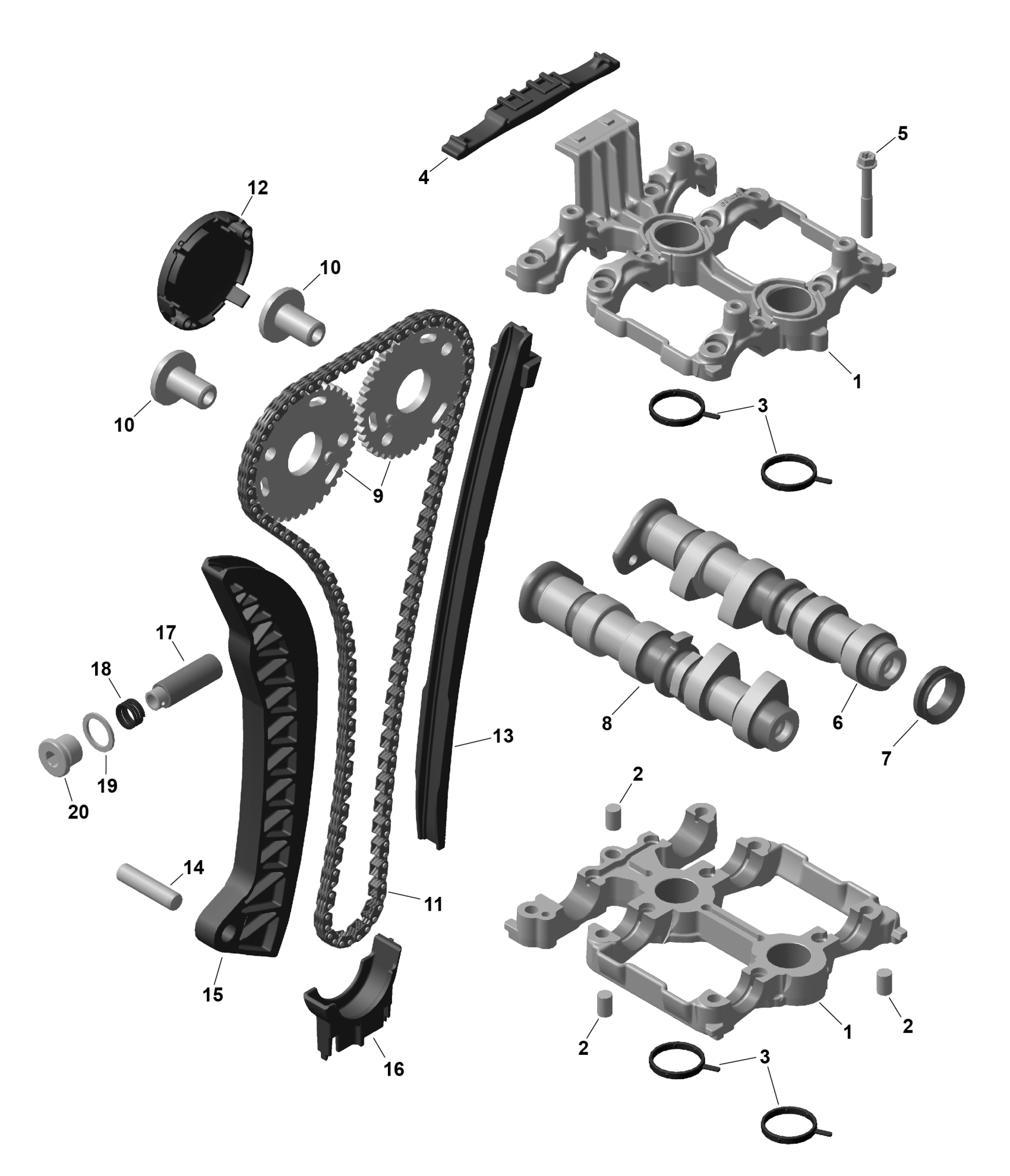

Ski-Doo SKANDIC - LE - 600 ACE - AKTA - Deep Black - 20X154X1.5CST Track, 2026 ROTAX - Valve Train Diagram

Description

Price

Camshaft Housing Ass'y

420911035

$206.49

Center Pin 8 X 12

420632010

$4.01

Camshaft Housing Gasket

420431760

$3.17

Chain Guide, Upper

420936500

$4.44

Torx Flange Screw M6 X 45

420440324

$0.98

Camshaft, Exhaust

420820112

$195.99

V-Ring

420630127

$7.65

Camshaft, Intake

420820102

$195.99

Camshaft Sprocket, 40 Teeth

420855120

$20.99

Flat Head Screw M14X1.5

420441361

$23.99

Camshaft Chain

420297086

$74.99

Cover

420460920

$5.39

Chain Guide

420936010

$11.60

Needle Pin

420929937

$7.65

Chain Tension Guide

420936020

$14.22

Chain Guide

420936510

$7.65

Chain Tensioner

420236395

$47.49

Compression Spring

420238732

$5.89

Gasket Ring

420430624

$1.89

Plug Screw

420840591

$8.57
