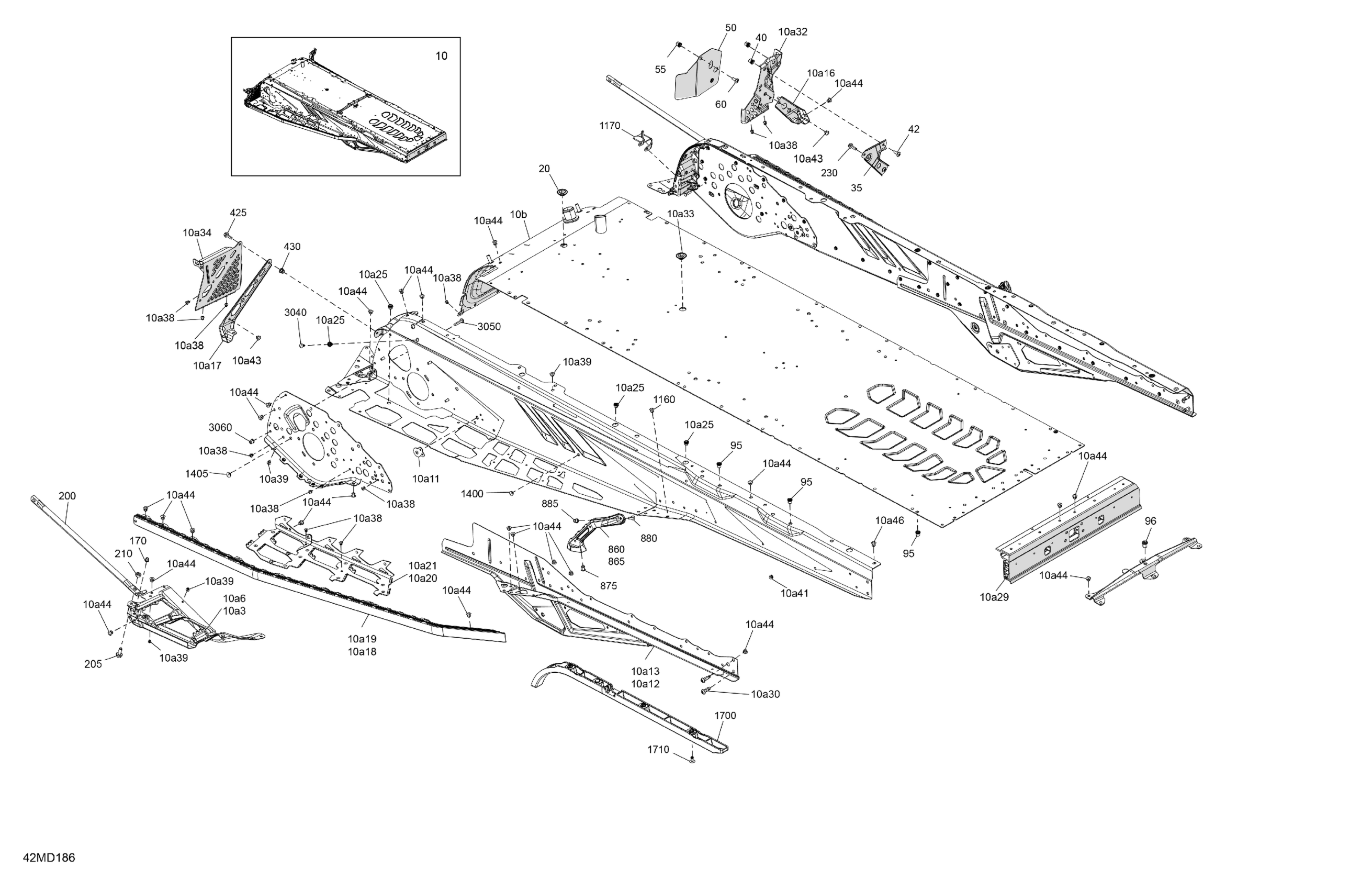

Ski-Doo North America - SKANDIC 900 ACE - SE - ANRE - Tundra Green - 154X24X1.5CST Track, 2024 06- Frame - System - Rear Section Diagram

#

Description
Price

10

Tundra Green, Chassis Tunnel Module 154 | Includes 10 to 10b

415130721

$3.00

10a3

Deep Black, RH Footrest Reinforcement

518332803

$86.99

10a6

Deep Black, LH Footrest Reinforcement

518332802

$18.49

10a11

Front Suspension Arm Reinforcement

518335959

$4.19

10a12

RH Rear Suspension Support

518333792

$109.99

10a13

LH Rear Suspension Support

518333791

$109.99

10a16

RH Footrest Reinforcement

518329789

$19.99

10a17

Deep Black, LH Chassis Reinforcement

518332924

$21.99

10a18

RH Roller

518329648

$194.99

10a19

LH Roller

518328452

$194.99

10a20

Central Rear Tunnel Reinforcement

518334842

$35.99

10a21

LH Central Reinforcement Tunnel

518334843

$35.99

10a25

Threaded Insert M6 X 1.0

250100242

Unavailable

10a29

Rear Cap

518332481

$83.99

10a30

Torx Button Head Screw M8 X 25

250001151

$2.00

10a32

RH Footrest

518331822

$24.49

10a33

Black, Plug

293730052

$9.19

10a34

LH Footrest

518332977

$43.49

10a38

Rivet Avibulb 3/16

293150203

$2.09

10a39

Avibulb Rivet 4.8 X 12.1

293150237

$2.09

10a41

Henrob Rivet

293150245

$1.69

10a43

Rivet Ornit 6,5 X 10.5

293150264

$2.40

10a44

Rivet Ornit 6,5 X 12.5

293150265

$2.40

10a46

Ornit Rivet 6,5 X 14.5

293150266

$2.40

10b

Radiator Tunnel 154

518335121

$625.49

20

Black, Plug

293730052

$9.19

35

RH Stirrup Reinforcement

518331727

$19.99

40

Insert

293450275

$12.99

42

Torx Head Screw M6 X 16

250000717

$2.11

50

Heat Shield

518331823

$10.49

55

Insert

293450275

$12.99

60

Torx Head Screw M6 X 16

250000717

$2.11

95

Insert

293450275

$12.99

96

Insert

293450275

$12.99

170

Insert M5 - 0.8

293450267

$4.59

200

Lateral Reinforcement

518332541

$19.99

205

Hex. Flange Screw M8 X 20

207682044

$1.15

210

Hex. Nut M8

232081414

$0.72

230

Hex. Flange Screw M6 X 20

207562056

$2.11

425

Hex. Flange Screw M6 X 20

207562056

$2.11

430

Elastic Flange Nut M6 X 1.0

233261416

$2.11

860

Deep Black LH Rear Footrest Reinforcement

518330858

$18.49

865

Deep Black, RH Rear Footrest Reinforcement

518335169

$18.49

875

Rivet Ornit 6,5 X 16.5

293150267

$2.40

880

Rivet Magna-Grip 6,4 X 50,8

293150148

$0.70

885

Collar Huck Magna-Grip 6.4

293150149

$0.48

1160

Ornit Rivet 6,5 X 14.5

293150266

$2.40

1170

Muffler Support Ass'y

518334031

$21.99

1400

Black, Dart 8 mm

293730047

$2.21

1405

Black, Dart 10 mm

293730060

$4.55

1700

Front Protector

518329982

$18.49

1710

Pop Rivet 3/16”

293150108

$1.19

3040

Dart

293730079

$2.09

3050

Magna-Grip Rivet 6.4 X 65,9

293150154

Unavailable

3060

Collar Huck Magna-Grip 6.4

293150149

$0.48
