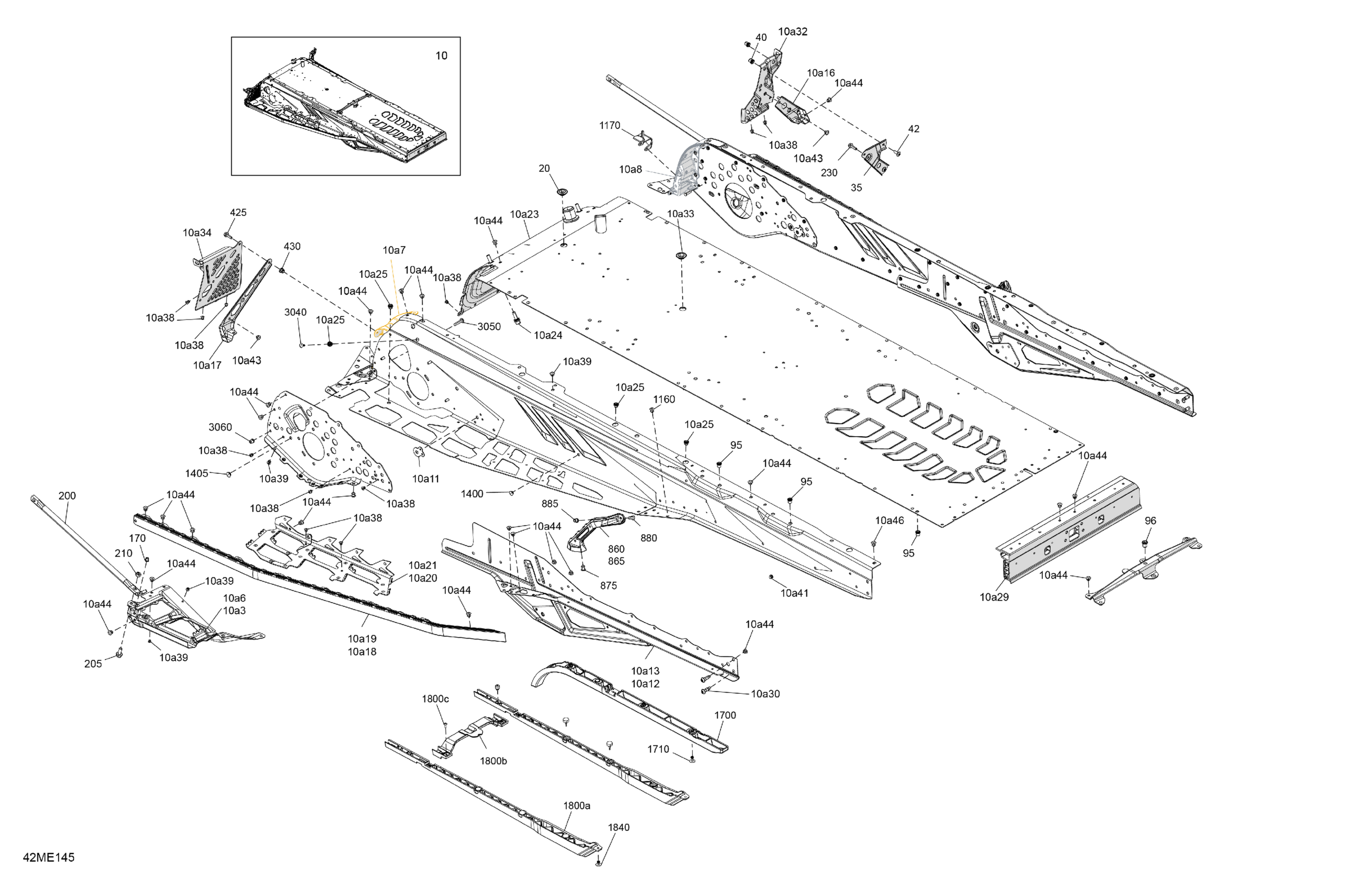

Ski-Doo SKANDIC - 600R E -TEC - SE - AUSD - Dusty Navy Satin - 154X24X1.5ICST Track - 2025 Frame - System - Rear Section Diagram

#

Description
Price

10

Dusty Navy, Chassis Tunnel Module 154 | Includes 10 to 10a46

415130868

Unavailable

10a3

Deep Black, RH Footrest Reinforcement

518332803

$79.97

10a6

Deep Black, LH Footrest Reinforcement

518332802

$16.89

10a7

LH Frame Corner 24

518331712

Unavailable

10a8

RH Frame Corner 24

518331973

Unavailable

10a11

Front Suspension Arm Reinforcement

518335959

$3.85

10a12

RH Rear Suspension Support

518333792

$102.28

10a13

LH Rear Suspension Support

518333791

$102.28

10a16

RH Footrest Reinforcement

518329789

$18.43

10a17

Deep Black, LH Chassis Reinforcement

518332924

$18.43

10a18

RH Roller

518329648

$180.74

10a19

LH Roller

518328452

$180.74

10a20

Central Rear Tunnel Reinforcement

518334842

$33.05

10a21

LH Central Reinforcement Tunnel

518334843

$33.05

10a23

Radiator Tunnel 154

518335121

$609.20

10a24

Protruding Stud M8 x 22

250300652

$4.28

10a25

Insert Half Hex Body M6 x 1.0

250100199

$2.54

10a29

Rear Cap

518332481

$76.89

10a30

Torx Button Head Screw M8 X 25

250001151

$1.91

10a32

RH Footrest

518331822

$23.05

10a33

Black, Plug

293730052

$6.37

10a34

LH Footrest

518332977

$42.28

10a38

Rivet Avibulb 3/16

293150203

$0.29

10a39

Avibulb Rivet 4.8 X 12.1

293150237

$0.29

10a41

Henrob Rivet

293150245

$1.65

10a43

Rivet Ornit 6,5 X 10.5

293150264

$1.94

10a44

Rivet Ornit 6,5 X 12.5

293150265

$1.94

10a46

Ornit Rivet 6,5 X 14.5

293150266

$1.94

20

Black, Plug

293730052

$6.37

35

RH Stirrup Reinforcement

518331727

$18.43

40

Insert

293450275

$9.89

42

Torx Head Screw M6 X 16

250000717

$1.74

95

Insert

293450275

$9.89

96

Insert

293450275

$9.89

170

Insert M5 - 0.8

293450267

$4.22

200

Lateral Reinforcement

518332541

$18.43

205

Hex. Flange Screw M8 X 20

207682044

$0.92

210

Hex. Nut M8

232081414

$0.60

230

Hex. Flange Screw M6 X 20

207562056

$1.74

425

Hex. Flange Screw M6 X 20

207562056

$1.74

430

Elastic Flange Nut M6 X 1.0

233261416

$1.74

860

Deep Black, LH Rear Footrest Reinforcement

518335168

$16.89

865

Deep Black, RH Rear Footrest Reinforcement

518335169

$16.89

875

Rivet Ornit 6,5 X 16.5

293150267

$1.94

880

Rivet Magna-Grip 6,4 X 50,8

293150148

$0.66

885

Collar Huck Magna-Grip 6.4

293150149

$0.37

1160

Ornit Rivet 6,5 X 14.5

293150266

$1.94

1170

Muffler Support Ass'y

518334031

$19.97

1400

Black, Dart 8 mm

293730047

$2.14

1405

Black, Dart 10 mm

293730060

$4.42

1700

Front Protector

518329982

$17.66

1710

Black, Ornit Rivet 3/16 X ,675

293150308

$1.23

1800a

Rear Protector

518329979

$7.55

1800b

Central Protective Structure

518333936

$3.40

1800c

Torx Truss PT K40 x 12

250001131

$1.74

1840

Black, Ornit Rivet 3/16 X ,675

293150308

$1.23

3040

Dart

293730079

$1.92

3050

Magna-Grip Rivet 6.4 X 65,9

293150154

Unavailable

3060

Collar Huck Magna-Grip 6.4

293150149

$0.37
