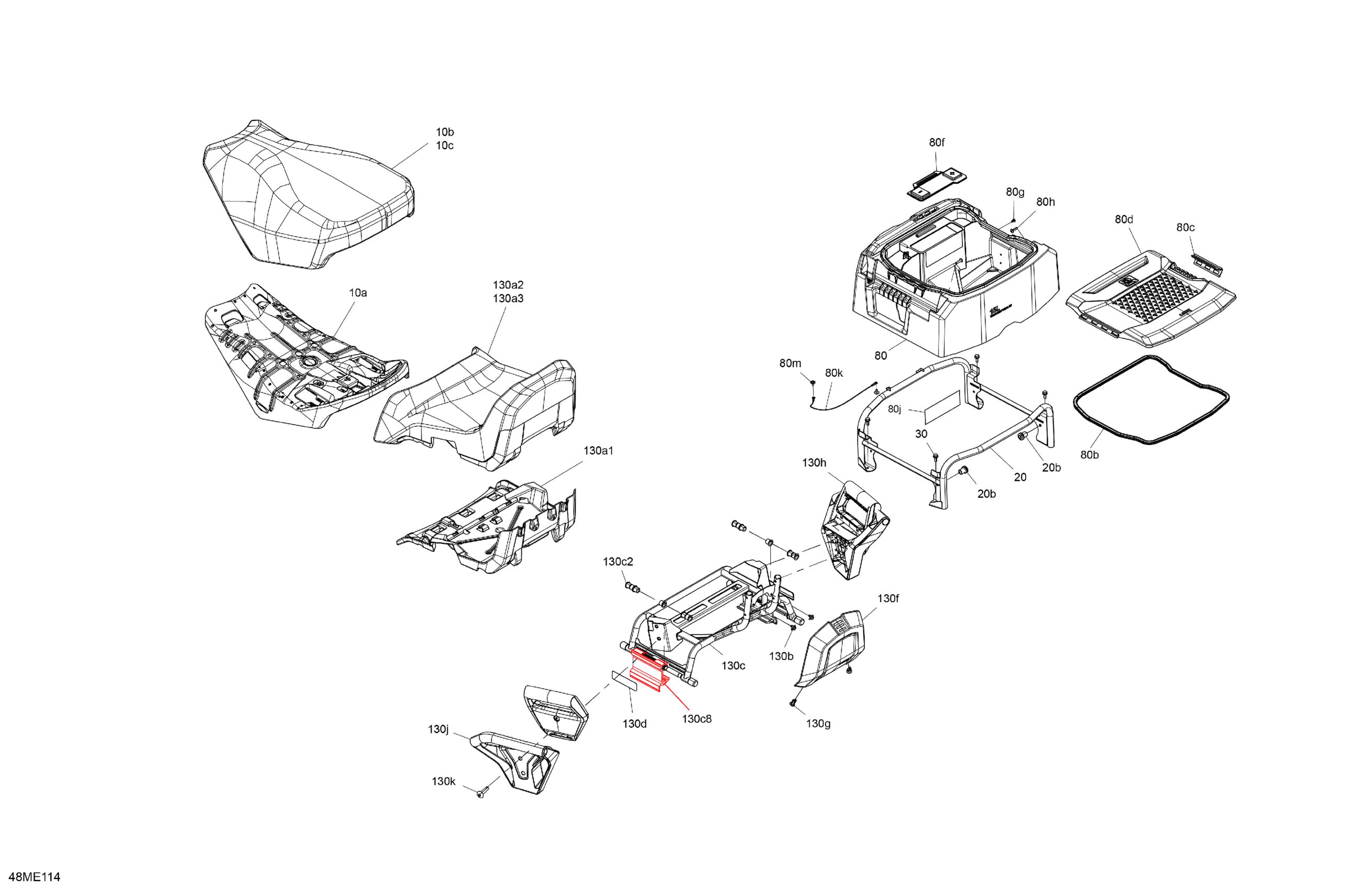

Ski-Doo SKANDIC - 600R E -TEC - SE - AUSC - Dusty Navy Satin - 154X20X1.8C Track - 2025 Body - Seat Diagram

Description

Price

10a

Driver Seat Base

510007142

$68.43

10b

Driver Seat Foam

510006413

$313.82

10c

Seat Cover

510007964

$248.43

Seat Support Ass'y | Includes 20 to 20b

510007010

$88.99

20b

Insert M5 X 0.8

293450268

$1.95

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

Storage Box Ass'y | Includes 80 to 80m

510007165

$352.28

80b

Seal, 1PC = 3M

293830188

$37.66

80c

Latch

269502449

$4.11

80d

Box Cover

511001274

$37.66

80f

Access Cover

510006789

$7.82

80g

Torx-Truss Screw K40 X 10

250001034

$0.81

80h

Torx Screw M5 X 20

250000724

$1.39

80j

Warning Label

516009465

Unavailable

80k

Retaining Cable

293750092

$9.95

80m

Plastite Screw M4 X 10

250000805

$1.74

130a1

Passenger Seat Base

510006410

$68.43

130a2

Passenger Seat Foam

510006411

$313.82

130a3

Passenger Seat Cover

510007983

$189.20

130b

Avdel Rivet

293150027

$2.37

130c

Passenger Chassis Module Ass'y | Includes 130c to 130c8

510007155

$394.58

130c2

Cushion

506152520

$12.37

130c8

Seat Latch

510006994

$16.89

130d

Warning Label

516009941

Unavailable

130f

Rear Seat Trim

510007866

$12.11

130g

Tuflok Plastic Rivet

293150230

$1.21

130h

RH Handle

510006797

$12.32

130j

LH Handle

510006798

$12.32

130k

Torx Truss M/S M8 x 35

250000753

$0.91
