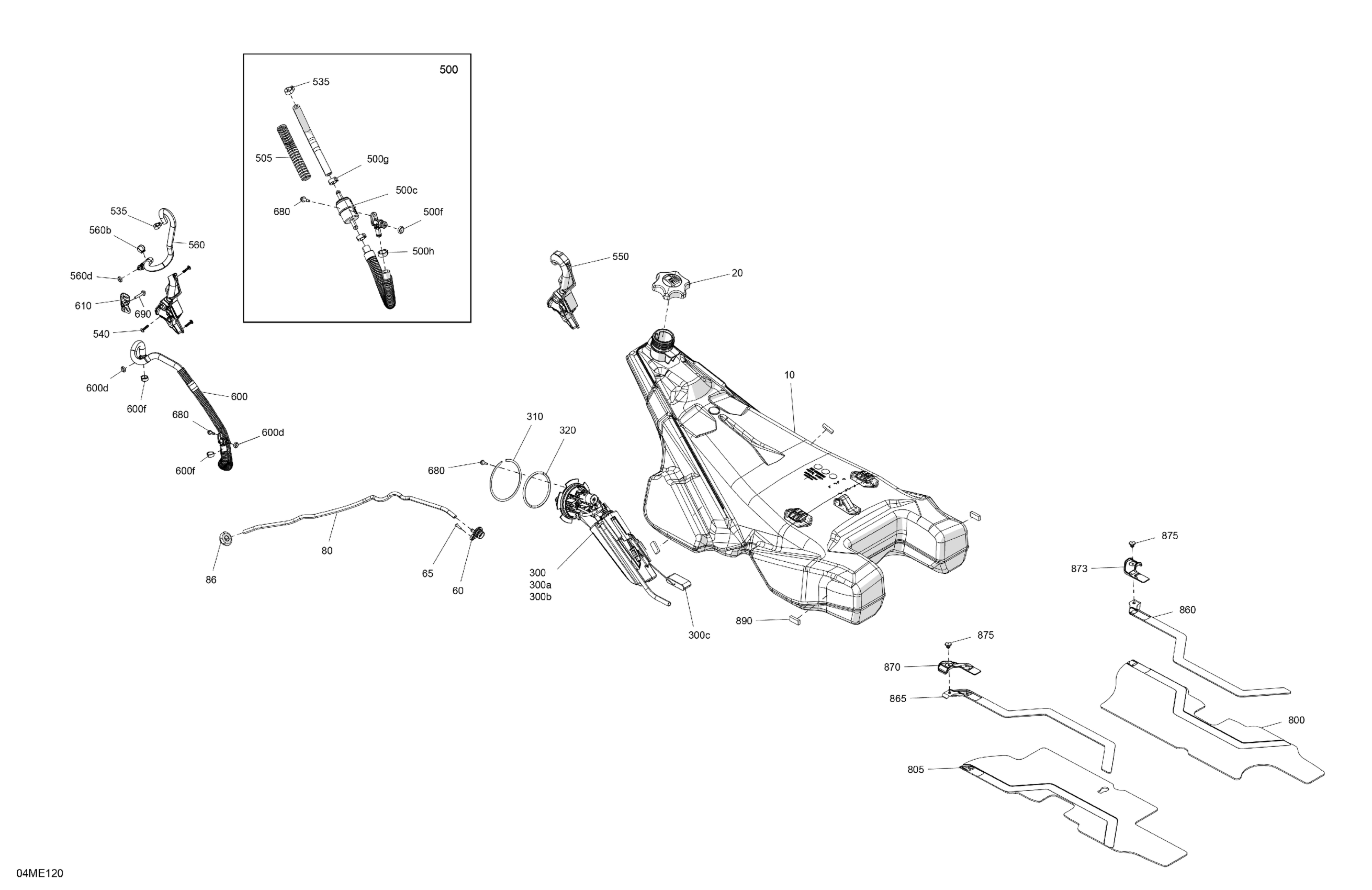

Ski-Doo SKANDIC - 600R E -TEC - LE - ALSC - Catalyst Gray - 154X20X1.5CST Track - 2025 Engine - Fuel Diagram

Description

Price

Fuel Tank

513034141

$349.99

Fuel Tank Cap

513034169

$24.49

Check Valve

513033849

$36.99

Truss Torx Screw K40 X 16

250000918

$2.11

Polyurethane Hose 10000Mm Long

219704410

$56.99

Grommet

705003264

$4.09

300

Fuel Pump Ass'y | Includes 300 to 300c

513034082

$259.99

300a

Canister

415130507

$85.99

300b

Filter

415130508

$41.49

300c

Fuel Level Sensor

415130727

$149.99

310

Circlip

513034097

$14.23

320

O-Ring

513033862

$23.99

500

Hose Ass'y | Includes 500 to 500h

513034202

$71.99

500c

Fuel Filter

513034047

$21.99

500f

O-Ring

513033668

$10.99

500g

Crimp Clamp, 15.3-706R

293650047

$3.29

500h

Crimp Clamp

293650053

$3.09

505

Tubing 16 Mm 1000Mm Long

219704408

$7.49

535

Crimp Clamp, 15.3-706R

293650047

$3.29

540

Torx Screw Truss Head K50X20 T20

250000760

$2.11

550

Hose Guide

513034204

$7.89

560

Fuel Tank Hose Ass'y | Includes 560 to 560d

513034251

$56.99

560b

Crimp Clamp

293650053

$3.09

560d

O-Ring

513033668

$10.99

600

Hose Ass'y | Includes 600 to 600f

513034250

$78.99

600d

O-Ring

513033668

$10.99

600f

Crimp Clamp

293650053

$3.09

610

Molded Hose Support

513034194

$5.79

680

Hex. Flange Screw M5 X 16

250000911

$0.85

690

Hex.Flange Screw M5 X 28 S.Grip

207552844

$5.39

800

RH Insulated Foam

513034052

$12.49

805

LH Insulated Foam

513034053

$12.49

860

RH Foam

513033981

$4.69

865

LH Foam

513033982

$4.69

870

LH Chassis Trim

513034183

$8.49

873

RH Chassis Trim

513034184

$8.49

875

Black, Pop Rivet 3/16 X ,550

293150292

$1.05

890

Tank Guard

513034038

$4.39
