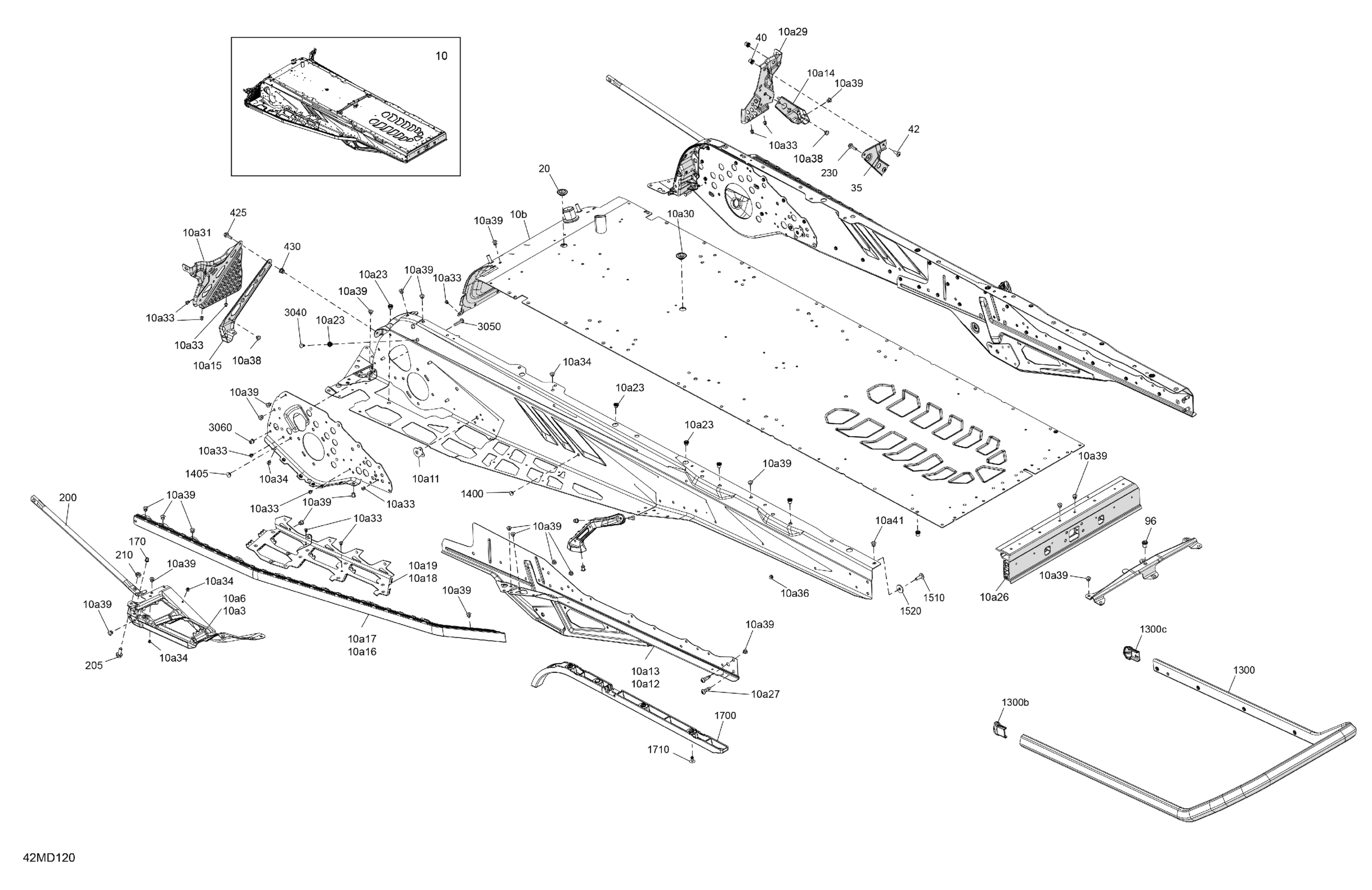

Ski-Doo SKANDIC 600 EFI - SPORT - AJRA - Neo Yellow - 154X20X1.25WT Track, 2024 Frame - System - Rear Section Diagram

#

Description
Price

10

Chassis Tunnel Module 154 | Includes 10 to 10b

415130724

$3,299.97

10a3

Deep Black, RH Footrest Reinforcement

518332803

$79.97

10a6

Deep Black, LH Footrest Reinforcement

518332802

$16.89

10a11

Front Suspension Arm Reinforcement

518335959

$3.85

10a12

RH Rear Suspension Support

518333792

$102.28

10a13

LH Rear Suspension Support

518333791

$102.28

10a14

RH Footrest Reinforcement

518329789

$18.43

10a15

Deep Black, LH Chassis Reinforcement

518332924

$18.43

10a16

RH Roller

518329648

$180.74

10a17

LH Roller

518328452

$180.74

10a18

Central Rear Tunnel Reinforcement

518334842

$33.05

10a19

LH Central Reinforcement Tunnel

518334843

$33.05

10a23

Threaded Insert M6 X 1.0

250100242

Unavailable

10a26

Rear Cap

518332315

$66.89

10a27

Torx Button Head Screw M8 X 25

250001151

$1.91

10a29

RH Footrest

518331822

$23.05

10a30

Black, Plug

293730052

$6.37

10a31

LH Footrest

518332978

$40.74

10a33

Rivet Avibulb 3/16

293150203

$0.29

10a34

Avibulb Rivet 4.8 X 12.1

293150237

$0.29

10a36

Henrob Rivet

293150245

$1.65

10a38

Rivet Ornit 6,5 X 10.5

293150264

$1.94

10a39

Rivet Ornit 6,5 X 12.5

293150265

$1.94

10a41

Ornit Rivet 6,5 X 14.5

293150266

$1.94

10b

Radiator Tunnel Ass'y 154

518332622

$693.05

20

Black, Plug

293730052

$6.37

35

RH Stirrup Reinforcement

518331727

$18.43

40

Insert

293450275

$9.89

42

Torx Head Screw M6 X 16

250000717

$1.74

96

Insert

293450275

$9.89

170

Insert M5 - 0.8

293450267

$4.22

200

Lateral Reinforcement

518332541

$18.43

205

Hex. Flange Screw M8 X 20

207682044

$0.92

210

Hex. Nut M8

232081414

$0.60

230

Hex. Flange Screw M6 X 20

207562056

$1.74

425

Hex. Flange Screw M6 X 20

207562056

$1.74

430

Elastic Flange Nut M6 X 1.0

233261416

$1.74

1300

Rear Bumper | Includes 1300 to 1300c

518331043

$109.20

1300b

LH Cap

520001837

Unavailable

1300c

Cap

520001841

Unavailable

1400

Black, Dart 8 mm

293730047

$2.14

1405

Black, Dart 10 mm

293730060

$4.42

1510

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$1.74

1520

Flat Washer

224061201

$1.11

1700

Front Protector

518329982

$17.66

1710

Pop Rivet 3/16”

293150108

$1.23

3040

Dart

293730079

$1.92

3050

Magna-Grip Rivet 6.4 X 65,9

293150154

Unavailable

3060

Collar Huck Magna-Grip 6.4

293150149

$0.37
