Description

Price

10

Deep Black, Chassis Tunnel Module 154 | Includes 10 to 10a41

415130861

$3.00

10a3

Deep Black, RH Footrest Reinforcement

518332803

$86.99

10a6

Deep Black, LH Footrest Reinforcement

518332802

$18.49

10a11

Front Suspension Arm Reinforcement

518335959

$4.19

10a12

RH Rear Suspension Support

518333792

$109.99

10a13

LH Rear Suspension Support

518333791

$109.99

10a14

RH Footrest Reinforcement

518329789

$19.99

10a15

Deep Black, LH Chassis Reinforcement

518332924

$21.99

10a16

RH Roller

518329648

$194.99

10a17

LH Roller

518328452

$194.99

10a18

Central Rear Tunnel Reinforcement

518334842

$35.99

10a19

LH Central Reinforcement Tunnel

518334843

$35.99

10a23

Threaded Insert M6 X 1.0

250100242

Unavailable

10a26

Rear Cap

518332315

$72.99

10a27

Torx Button Head Screw M8 X 25

250001151

$2.00

10a29

RH Footrest

518331822

$24.49

10a30

Black, Plug

293730052

$9.19

10a31

LH Footrest

518332978

$43.99

10a33

Rivet Avibulb 3/16

293150203

$2.09

10a34

Avibulb Rivet 4.8 X 12.1

293150237

$2.09

10a36

Henrob Rivet

293150245

$1.69

10a38

Rivet Ornit 6,5 X 10.5

293150264

$2.40

10a39

Rivet Ornit 6,5 X 12.5

293150265

$2.40

10a41

Ornit Rivet 6,5 X 14.5

293150266

$2.40

10b

Radiator Tunnel Ass'y 154

518332622

$709.99

20

Black, Plug

293730052

$9.19

35

RH Stirrup Reinforcement

518331727

$19.99

40

Insert

293450275

$12.99

42

Torx Head Screw M6 X 16

250000717

$2.11

50

Heat Shield

518331823

$10.49

55

Insert

293450275

$12.99

60

Torx Head Screw M6 X 16

250000717

$2.11

95

Insert

293450275

$12.99

96

Insert

293450275

$12.99

170

Insert M5 - 0.8

293450267

$4.59

200

Lateral Reinforcement

518332541

$19.99

205

Hex. Flange Screw M8 X 20

207682044

$1.15

210

Hex. Nut M8

232081414

$0.72

230

Hex. Flange Screw M6 X 20

207562056

$2.11

425

Hex. Flange Screw M6 X 20

207562056

$2.11

430

Elastic Flange Nut M6 X 1.0

233261416

$2.11

860

Deep Black LH Rear Footrest Reinforcement

518330858

$18.49

865

Deep Black, RH Rear Footrest Reinforcement

518335169

$18.49

875

Rivet Ornit 6,5 X 16.5

293150267

$2.40

880

Rivet Magna-Grip 6,4 X 50,8

293150148

$0.70

885

Collar Huck Magna-Grip 6.4

293150149

$0.48

1400

Black, Dart 8 mm

293730047

$2.21

1405

Black, Dart 10 mm

293730060

$4.55

1700

Front Protector

518329982

$18.49

1710

Pop Rivet 3/16”

293150108

$1.19

3040

Dart

293730079

$2.09

3050

Magna-Grip Rivet 6.4 X 65,9

293150154

Unavailable

3060

Collar Huck Magna-Grip 6.4

293150149

$0.48

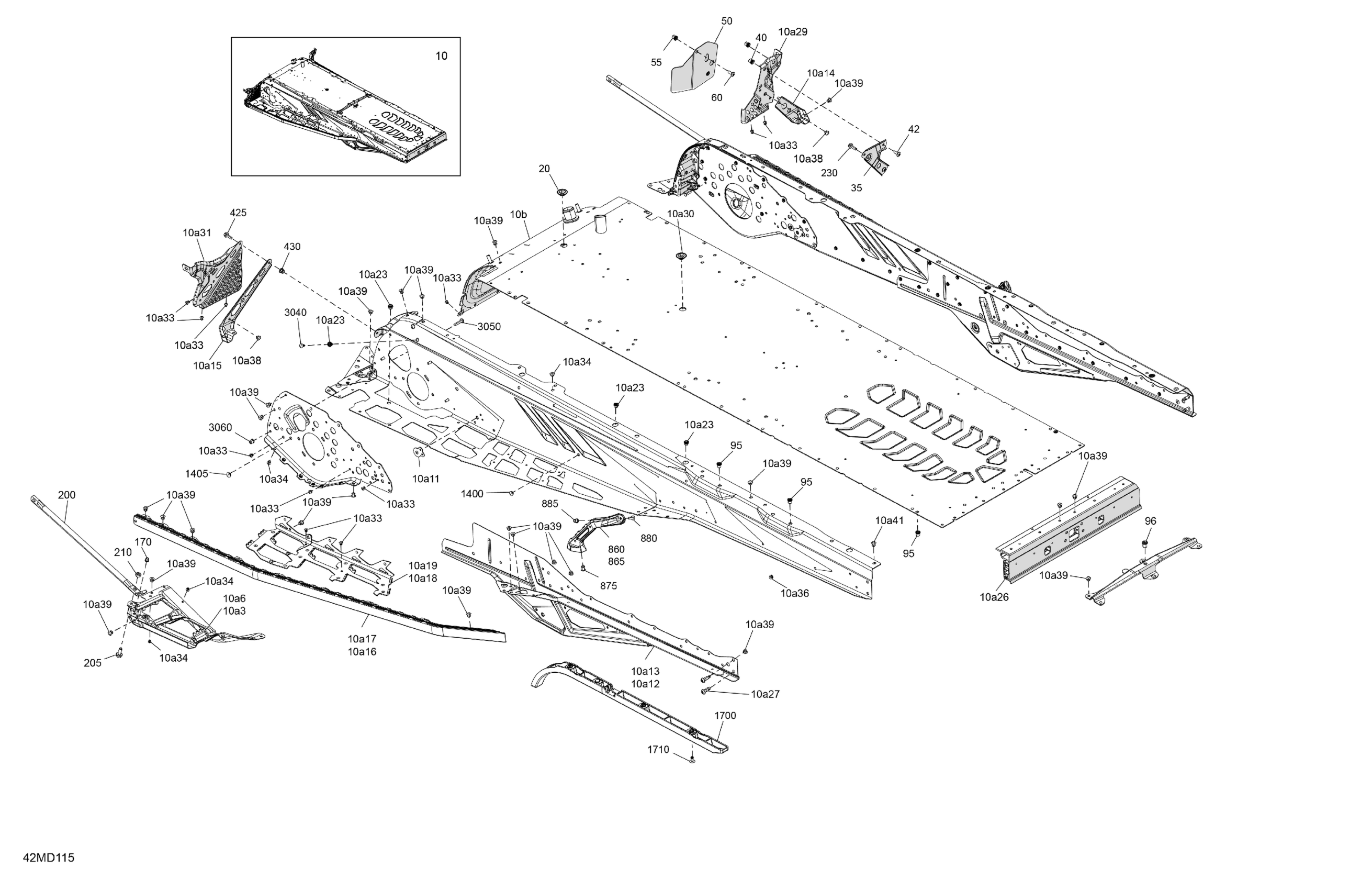

Ski-Doo North America - SKANDIC 600 ACE - LE - AKRA - Deep Black - 154X20X1.5CST Track, 2024 06- Frame - System - Rear Section Diagram

Deep Black, Chassis Tunnel Module 154 | Includes 10 to 10a41

Deep Black, RH Footrest Reinforcement

Deep Black, LH Footrest Reinforcement

Front Suspension Arm Reinforcement

RH Rear Suspension Support

LH Rear Suspension Support

RH Footrest Reinforcement

Deep Black, LH Chassis Reinforcement

RH Roller

LH Roller

Central Rear Tunnel Reinforcement

LH Central Reinforcement Tunnel

Threaded Insert M6 X 1.0

Rear Cap

Torx Button Head Screw M8 X 25

RH Footrest

Black, Plug

LH Footrest

Rivet Avibulb 3/16

Avibulb Rivet 4.8 X 12.1

Henrob Rivet

Rivet Ornit 6,5 X 10.5

Rivet Ornit 6,5 X 12.5

Ornit Rivet 6,5 X 14.5

Radiator Tunnel Ass'y 154

Black, Plug

RH Stirrup Reinforcement

Insert

Torx Head Screw M6 X 16

Heat Shield

Insert

Torx Head Screw M6 X 16

Insert

Insert

Insert M5 - 0.8

Lateral Reinforcement

Hex. Flange Screw M8 X 20

Hex. Nut M8

Hex. Flange Screw M6 X 20

Hex. Flange Screw M6 X 20

Elastic Flange Nut M6 X 1.0

Deep Black LH Rear Footrest Reinforcement

Deep Black, RH Rear Footrest Reinforcement

Rivet Ornit 6,5 X 16.5

Rivet Magna-Grip 6,4 X 50,8

Collar Huck Magna-Grip 6.4

Black, Dart 8 mm

Black, Dart 10 mm

Front Protector

Pop Rivet 3/16”

Dart

Magna-Grip Rivet 6.4 X 65,9

Collar Huck Magna-Grip 6.4
