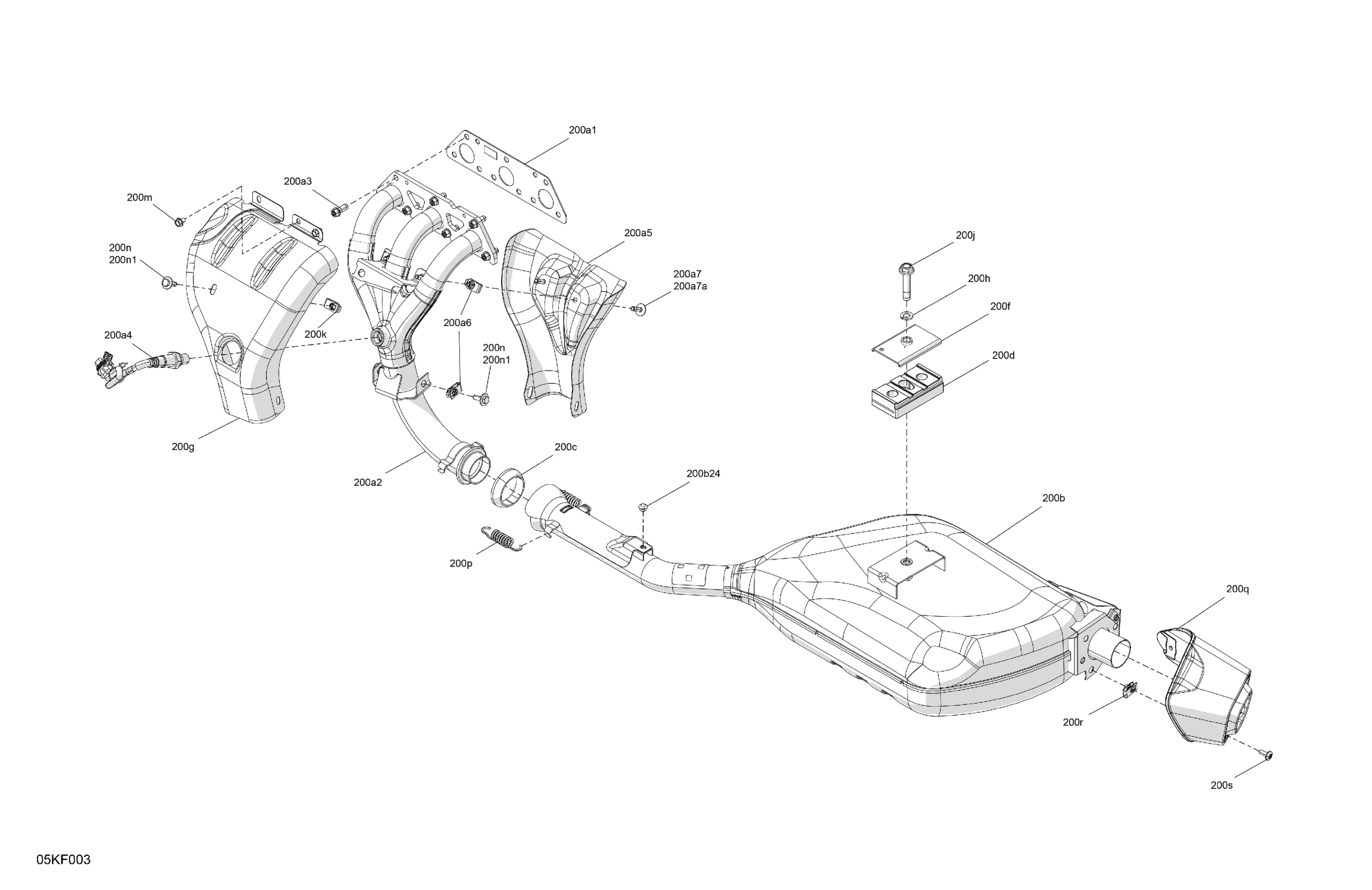

Can-Am RYKER - STD - 900 ACE - F2TA - Deep Black, 2026 Engine - Exhaust Diagram

Description

Price

200a1

Exhaust Manifold Gasket

707602002

$18.11

200a2

Exhaust Manifold

707602001

$154.99

200a3

Hex. Flange Screw M8 X 20

250001089

$0.76

200a4

Oxygen Sensor

707600872

$144.99

200a5

Heat Shield

707604132

$51.99

200a6

Panel Nut M6 X 1.0

250100198

$2.11

200a7

Hex Screw M6 X 20

250000965

$2.11

200a7a

Not Available As Spare Parts

XXX

Unavailable

200b

Exhaust Muffler

707603345

$1,070.49

200b24

Rivet Ornit 6,5 X 10.5

293150264

$2.40

200c

Exhaust Gasket

707601033

$13.77

200d

Vibration Damper

707603448

$15.28

200f

Rear Upper Exhaust Support

707603884

$17.59

200g

Heat Shield

707604130

$47.99

200h

Helicoidal Lock Washer M10 | XT Models

234101601

$1.15

200j

Hex. Flange Screw M10 X 50

250001079

$2.19

200k

Panel Nut M6 X 1.0

250100198

$2.11

200m

Hex. Forming Screw M6 X 10

210261050

$1.69

200n

Hex Screw M6 X 20

250000965

$2.11

200n1

Not Available As Spare Parts

XXX

Unavailable

200p

Spring

514055198

$6.35

200q

Carbon Black, Muffler End Piece

707602404

$23.99

200r

Panel Nut M6 X 1.0

250100198

$2.11

200s

Torx Truss Screw M6 X 16

250000348

$2.11
