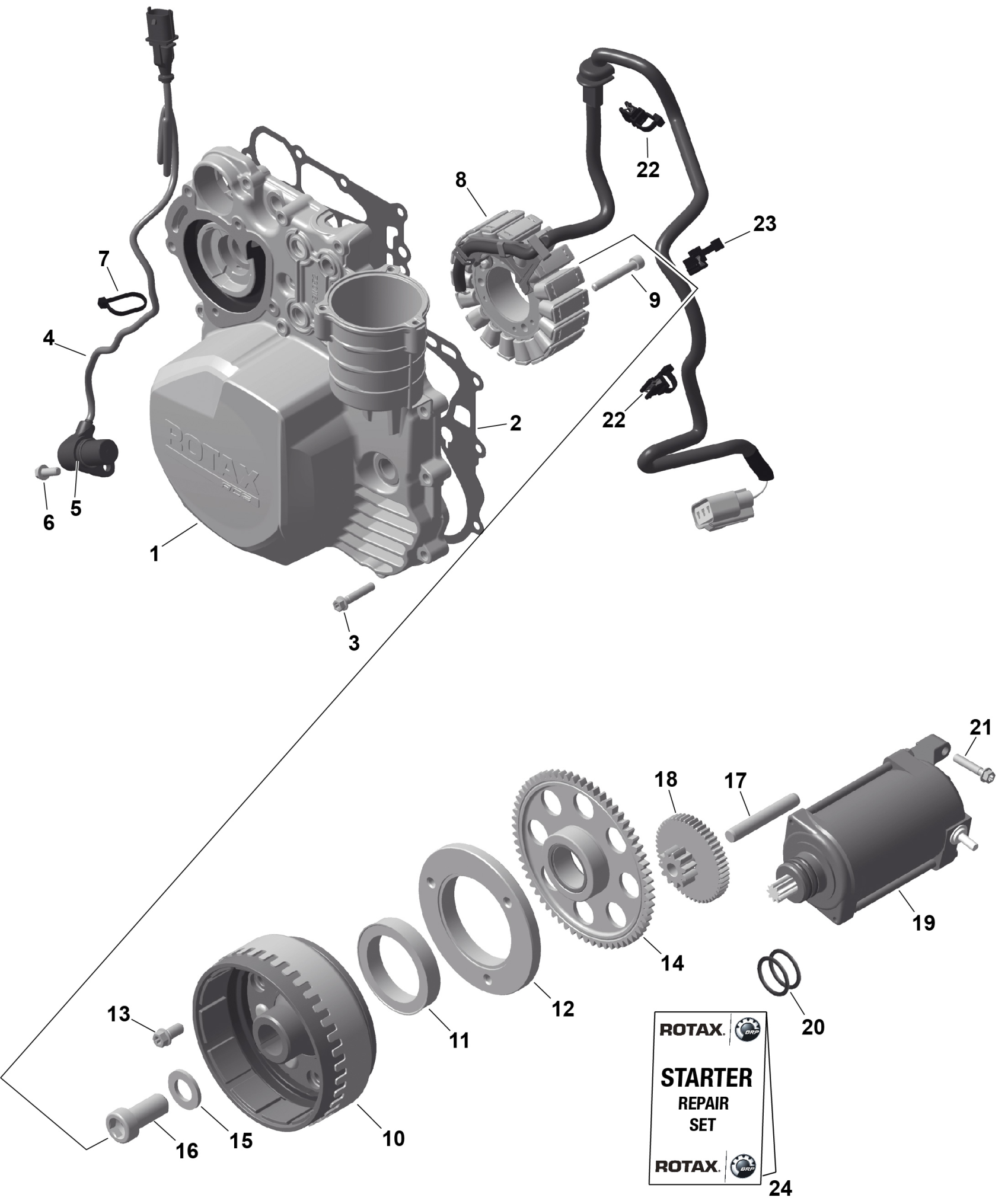

Can-Am RYKER - STD - 600 ACE - F1TA - Deep Black, 2026 ROTAX - Magneto and Electric Starter Diagram

Description

Price

Ignition Cover

420911055

$179.99

Magneto Gasket | Included in gasket kit

420431642

$38.99

Torx Flange Screw M6 X 30

420440647

$2.00

Crankshaft Position Sensor Ass'y | Includes 10 to 11

420966570

$109.99

O-Ring

420431580

$14.83

Torx Flange Screw M6 X 16

420440162

$3.17

Tie Rap

420866714

$1.90

Stator Plate

420296916

$319.49

Allen Screw M6 X 40

420241956

$3.17

Magneto Flywheel

420686191

$423.99

Sprag Clutch

420659119

$179.99

Sparg Clutch Housing

420659263

$154.99

Torx Flange Screw M8 X 16

420440854

$4.44

Free Wheel Gear, 64 Teeth

420434238

$114.99

Shim

420627270

$4.12

Socket Head Screw M16 X 35

420241549

$8.57

Needle Pin

420229475

$14.83

Starter Double Gear 11/49 T

420634741

$199.99

Starter Ass'y | Includes no. 19-20

420893835

$265.99

O-Ring

420250145

$10.33

Torx Flange Screw M6 X 30

420440647

$2.00

Cable Clamp 150mm

420951650

$4.44

Cable Clamp 200mm

420651812

$8.39

Carbon Brush Set

420881145

$204.99
