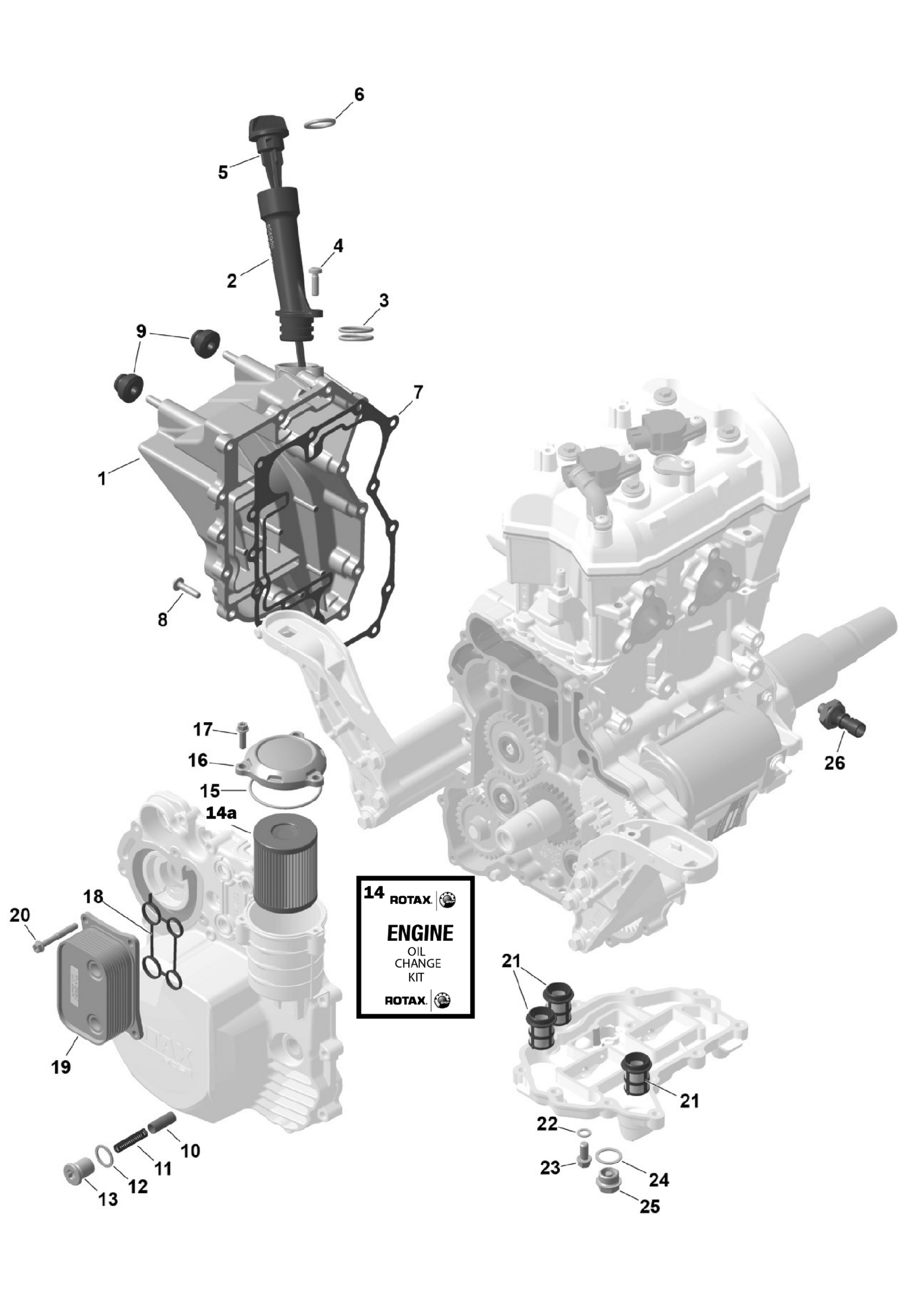

Can-Am RYKER - STD - 600 ACE - F1TA - Deep Black, 2026 ROTAX - Engine Lubrication Diagram

#

Description
Price

1

Oil Pump Cover

420956210

$88.43

2

Oil Filler Tube

420656905

$6.45

3

O-Ring

420430440

$3.22

4

Torx Flange Screw M6 X 20

420441386

$2.06

5

Oil Level Tube

420856664

$18.00

6

O-Ring

420631642

$2.06

7

Gasket | Included in gasket kit

420431771

$18.00

8

Torx Flange Screw M6 X 25

420841548

$4.39

9

Rubber Grommet

420860150

$4.41

10

Pressure Regulating Piston

420256591

$10.58

11

Spring

420239445

$10.58

12

Gasket Ring

420430624

$1.51

13

Plug Screw

420441373

$11.01

14

Ryker Oil Change Kit 5W40 600CC

9779298

$73.00

14a

Oil Filter

420956123

$11.14

15

O-Ring

420230923

$2.59

16

Oil Filter cover

420612135

$11.11

17

Torx Flange Screw M6 X 20

420440207

$2.54

18

Gasket

420431871

$8.83

19

Oil Water Heat Exchanger

420656698

$113.82

20

Torx Flange Screw M6 X 45

420440324

$0.81

21

Oil Sieve

420656680

$8.72

22

Sealing Ring

420950141

$1.64

23

Torx Flange Screw M8 X 16

420440852

$4.00

24

Crush Washer

420552280

$2.99

25

Drain Plug M18 X 1.5

420840278

$22.79

26

Oil Pressure Switch

420856536

$48.72
