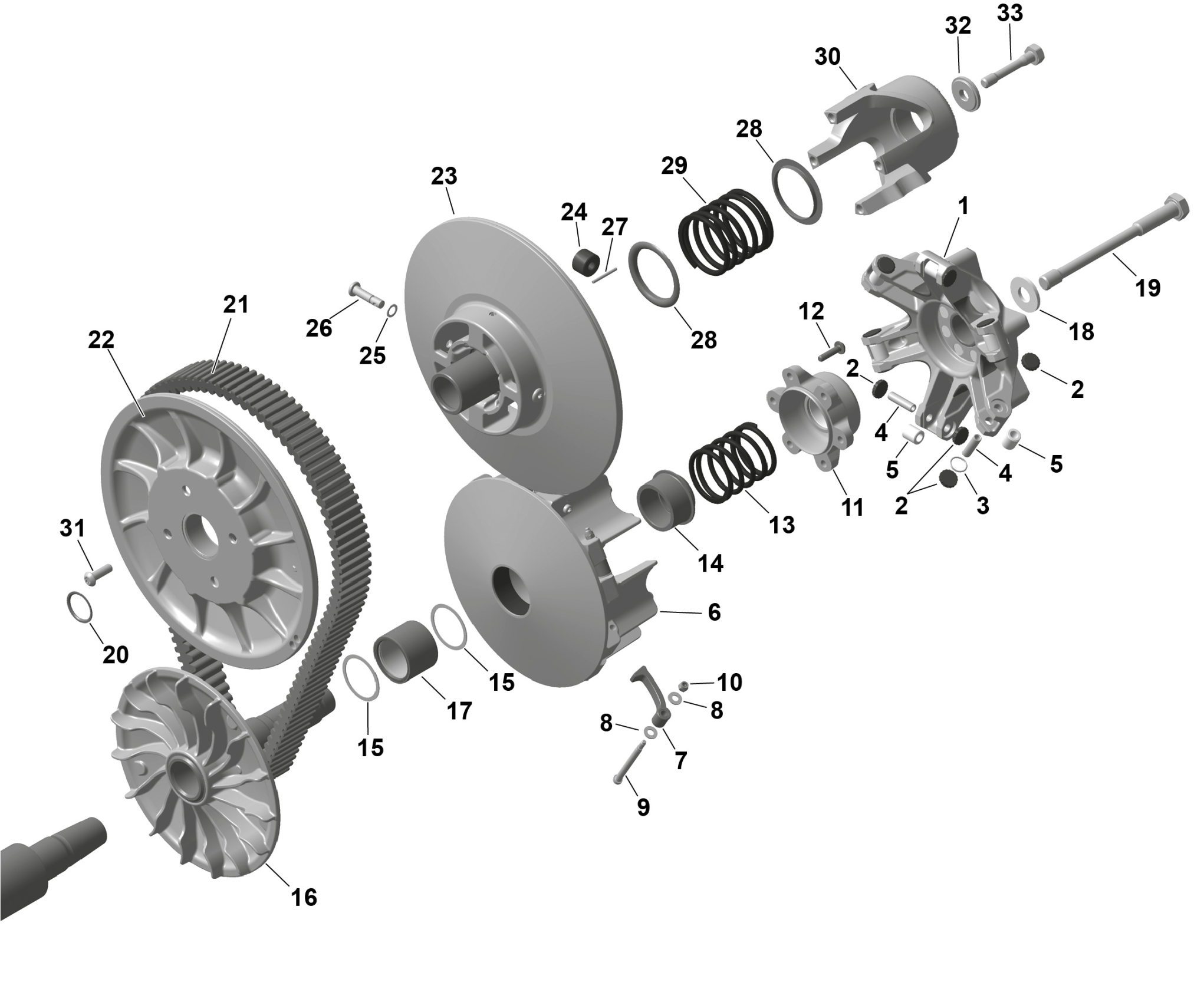

Can-Am RYKER - STD - 600 ACE - F1TA - Deep Black, 2026 ROTAX - CVT Diagram

#

Description
Price

1

Governor Cup Ass'y

420280729

$379.99

2

Slider Shoe Set 1 SET= 12PC

420281297

$73.99

3

O-Ring

420230456

$2.09

4

Roller Axle

417223257

$6.99

5

Roller Thrust

420229991

$19.99

6

Outer Half Ass'y

420280609

$379.99

7

Lever Set | North America

420248685

$158.99

8

Not Available As Spare Parts

XXX

Unavailable

9

Not Available As Spare Parts

XXX

Unavailable

10

Not Available As Spare Parts

XXX

Unavailable

11

Bearing Cover

420280616

$69.99

12

Torx Flange Screw M6 X 25

420841549

$2.00

13

Compression Spring

420638112

$29.49

14

Spring Retainer

420427211

$46.49

15

Washer

420427220

$4.86

16

Inner Half Ass'y

420280596

$339.99

17

Needle Roller Bearing With Sleeves

420832351

$49.99

18

Washer

420245690

$4.86

19

Hexagonal Screw M14X 165

420841161

$29.49

20

Distance Ring

420647263

$27.99

21

Drive Belt

422280656

$174.99

22

Inner Half Ass'y

420280635

$179.99

23

Outer Half Pulley Ass'y

420280692

$389.99

24

Pulley Roller

417127016

$24.49

24

QRS XD Roller Kit (2)

861805577

$82.99

25

Lock Washer 8 mm

250200009

$2.11

26

Not Available As Spare Parts

XXX

Unavailable

27

Dowel Pin

420629200

$2.51

28

Swivel Abutment

417127116

$9.39

29

Spring

420638164

$13.75

30

Cam 48-60

420280752

$153.49

31

Binding Head Screw M8X25

420441981

$17.04

32

Collar Washer

420427243

$16.40

33

Hexagonal Screw M10X 61

420441990

$19.49
