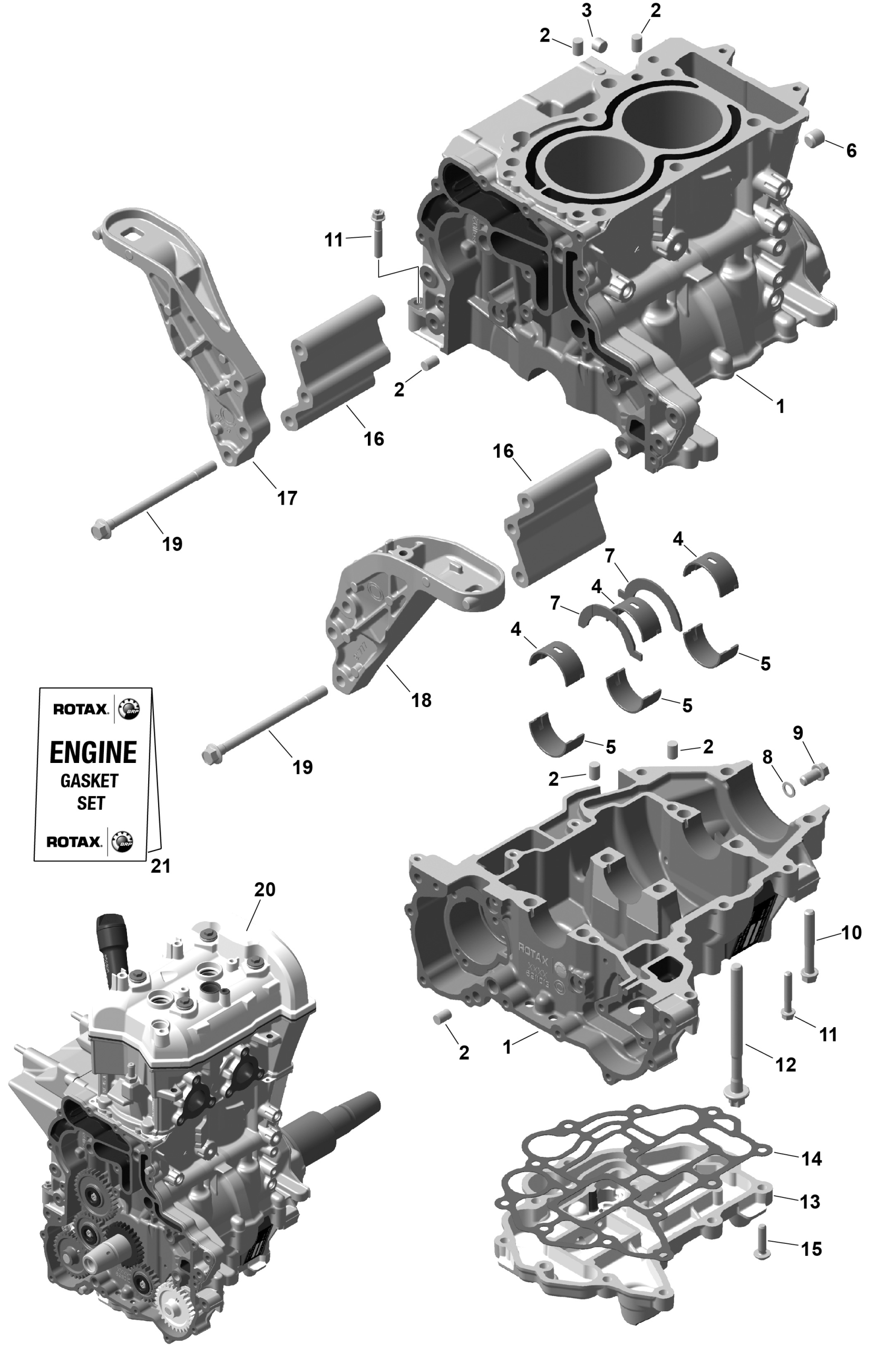

Can-Am RYKER - STD - 600 ACE - F1TA - Deep Black, 2026 ROTAX - Crankcase Diagram

Description

Price

Engine Block Ass'y

420892857

$2,031.49

Center Pin 8 X 12

420632010

$4.01

Plug Screw M10 X 1

420641323

$14.28

Cushion

420933180

$17.58

Cushion

420933185

$18.49

Threaded Pin

420840508

$18.49

Ring Half

420933140

$11.60

Sealing Ring

420950141

$2.00

Torx Flange Screw M8 X 16

420440852

$4.12

Torx Flange Screw M8 X 55

420641213

$7.41

Torx Flange Screw M6 X 35

420440274

$1.01

Torx Flange Screw M9 X 113

420940945

$13.70

Oil Sump

420911123

$86.99

Gasket | Included in gasket kit

420431631

$14.83

Torx Flange Screw M6 X 25

420841548

$5.40

Engine Shim

420911779

$20.99

Engine Bracket Front inl.

420911773

$22.49

Engine Bracket Front Exh.

420911777

$22.49

Collar Hex Screw M8 X 115

420941570

$1.79

Long Block 602

420060270

$3,887.99

Gasket Kit 602

420686247

Unavailable
