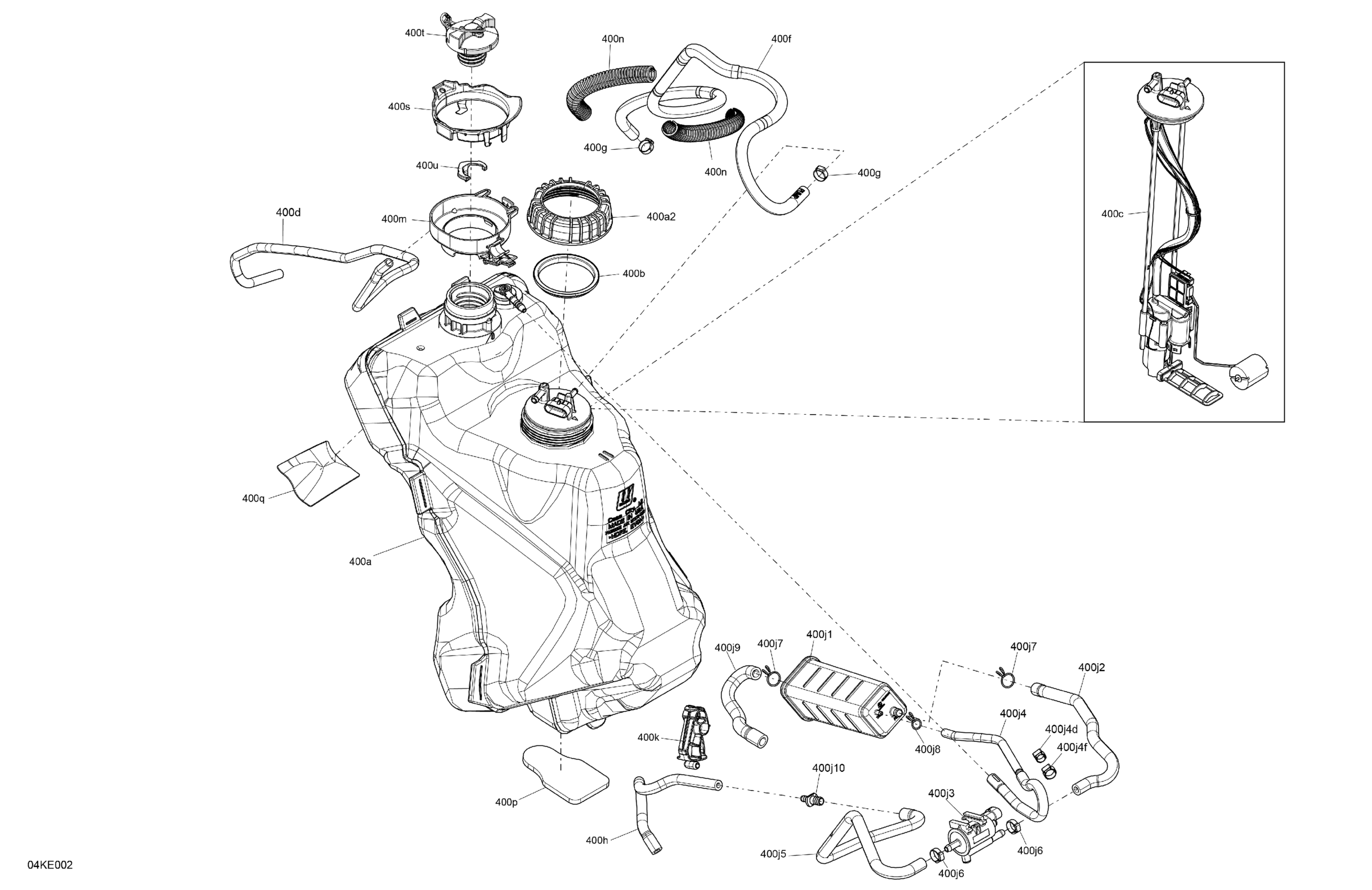

Can-Am RYKER - STD - 600 ACE - F1SC - CARB - Deep Black, 2025 Engine - Fuel Diagram

Description

Price

400a

Fuel Tank Ass'y | Includes 10 to 10b

709001436

$409.99

400a2

Fuel Pump Module Nut

709000328

$12.43

400b

Seal

709000208

$12.16

400c

Fuel Pump Module 2021-2026 | Includes 400c to 400c1

709001261

$340.99

400c1

Prefilter Fuel Pump Kit 125mm Long | Not shown

715900677

$73.85

400d

Polyurethane Hose 1000Mm Long

219704391

Unavailable

400f

Hose

709001579

$45.99

400g

Crimp Clamp, 15.3-706R

293650047

$2.64

400h

Hose

709001580

$33.99

400j1

Vapor Canister

709001217

$90.27

400j2

Charcoal Canister Hose

709001582

$33.99

400j3

Bleed Selenoid Valve

709000991

Unavailable

400j4

Charcoal Canister Hose Ass'y | Includes 400j4 to 400j4f

709001584

$40.99

400j4d

Oetiker Clamp | Europe

293650044

$4.07

400j4f

Oetiker Gear Clamp

293650025

$2.46

400j5

Charcoal Canister Hose

709001583

$35.99

400j6

Crimp Clamp, 15.3-706R

293650047

$2.64

400j7

Hose Clamp 15.5mm-17.5mm (Spring Type)

293650294

$11.28

400j8

Hose Clamp 9.8mm-11.5mm (Spring Type)

293650295

$11.28

400j9

Hose Fuel Vapor

709000959

$15.99

400j10

Flow Reducer

709000705

$6.09

400k

Hose Support

709001408

$13.49

400m

Anchorage Support

709001275

$15.49

400n

Tubing 16 Mm 1000Mm Long

219704408

$6.23

400p

Rubber Pad

709001087

$14.23

400q

Tank Protector

709001115

$4.39

400s

Trim

709001202

$15.49

400t

Fuel Tank Cap

709001460

$27.49

400u

Deflector

709001263

$15.99
