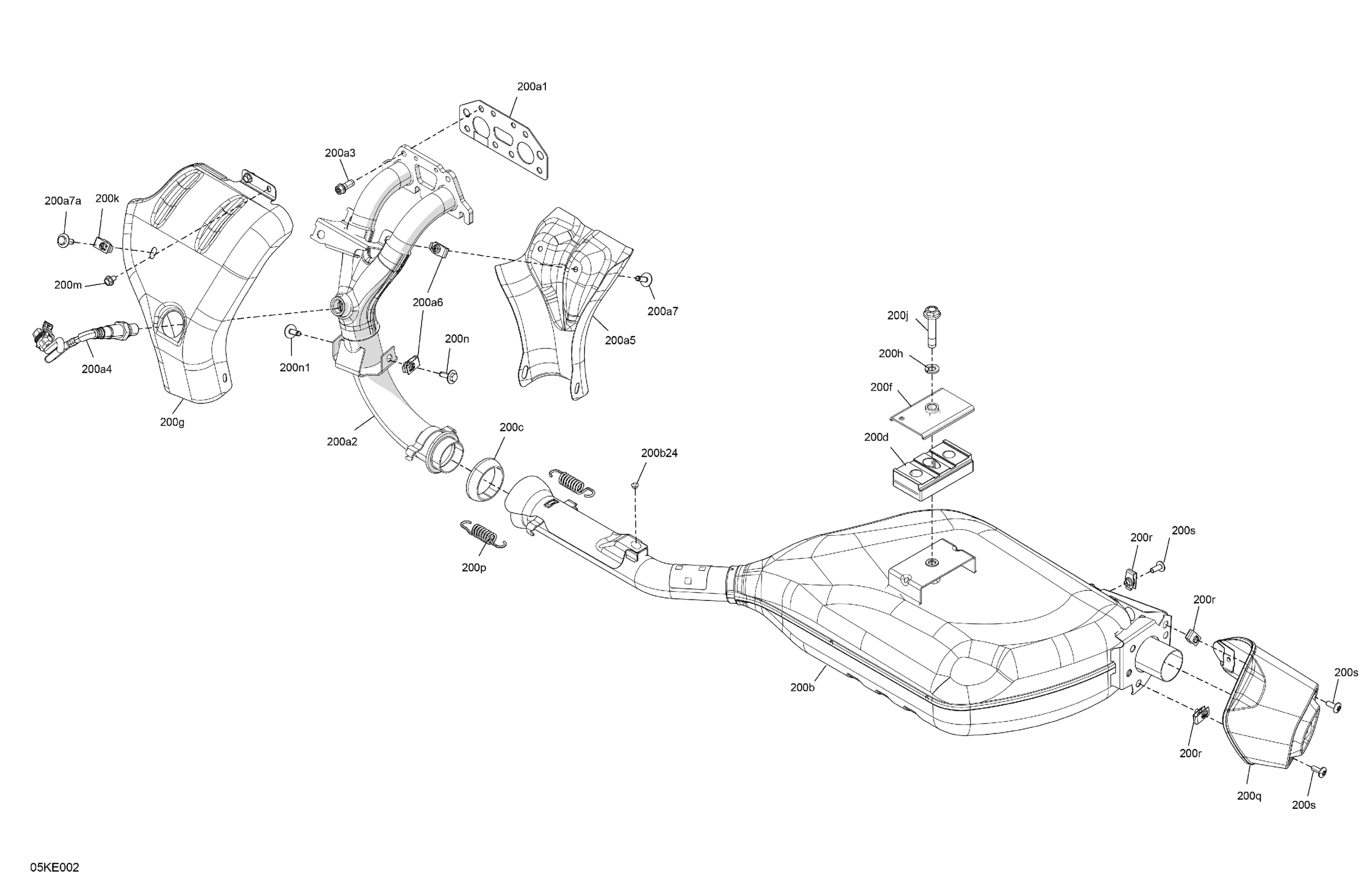

Can-Am On-Road North America - RYKER - STD - 600 ACE - F1SC - CARB - Deep Black, 2025 02- Engine - Exhaust Diagram

Description

Price

200a1

Exhaust Manifold Gasket

707601939

$7.94

200a2

Exhaust Manifold

707601938

$154.99

200a3

Hex. Flange Screw M8 X 20

250001089

$0.76

200a4

Oxygen Sensor

707600872

$144.99

200a5

Deflector

707602311

$40.99

200a6

Panel Nut M6 X 1.0

250100198

$2.11

200a7

Hex Screw M6 X 20

250000965

$2.11

200a7a

Hex Screw M6 X 20

250000965

$2.11

200b

Exhaust Muffler

707603345

$1,070.49

200b24

Rivet Ornit 6,5 X 10.5

293150264

$2.40

200b28

Steel Wire S6 .9mm HI-DEP | Not Shown

75011200

Unavailable

200c

Exhaust Gasket

707601033

$13.77

200d

Vibration Damper

707603448

$15.28

200f

Rear Upper Exhaust Support

707603884

$17.59

200g

Deflector

707602313

$40.99

200h

Helicoidal Lock Washer M10 | XT Models

234101601

$1.15

200j

Hex. Flange Screw M10 X 50

250001079

$2.19

200k

Panel Nut M6 X 1.0

250100198

$2.11

200m

Hex. Forming Screw M6 X 10

210261050

$1.69

200n

Hex Screw M6 X 20

250000965

$2.11

200n1

Hex Screw M6 X 20

250000965

$2.11

200p

Spring

514055198

$6.35

200q

Carbon Black, Muffler End Piece

707602404

$23.99

200r

Panel Nut M6 X 1.0

250100198

$2.11

200s

Torx Truss Screw M6 X 16

250000348

$2.11
