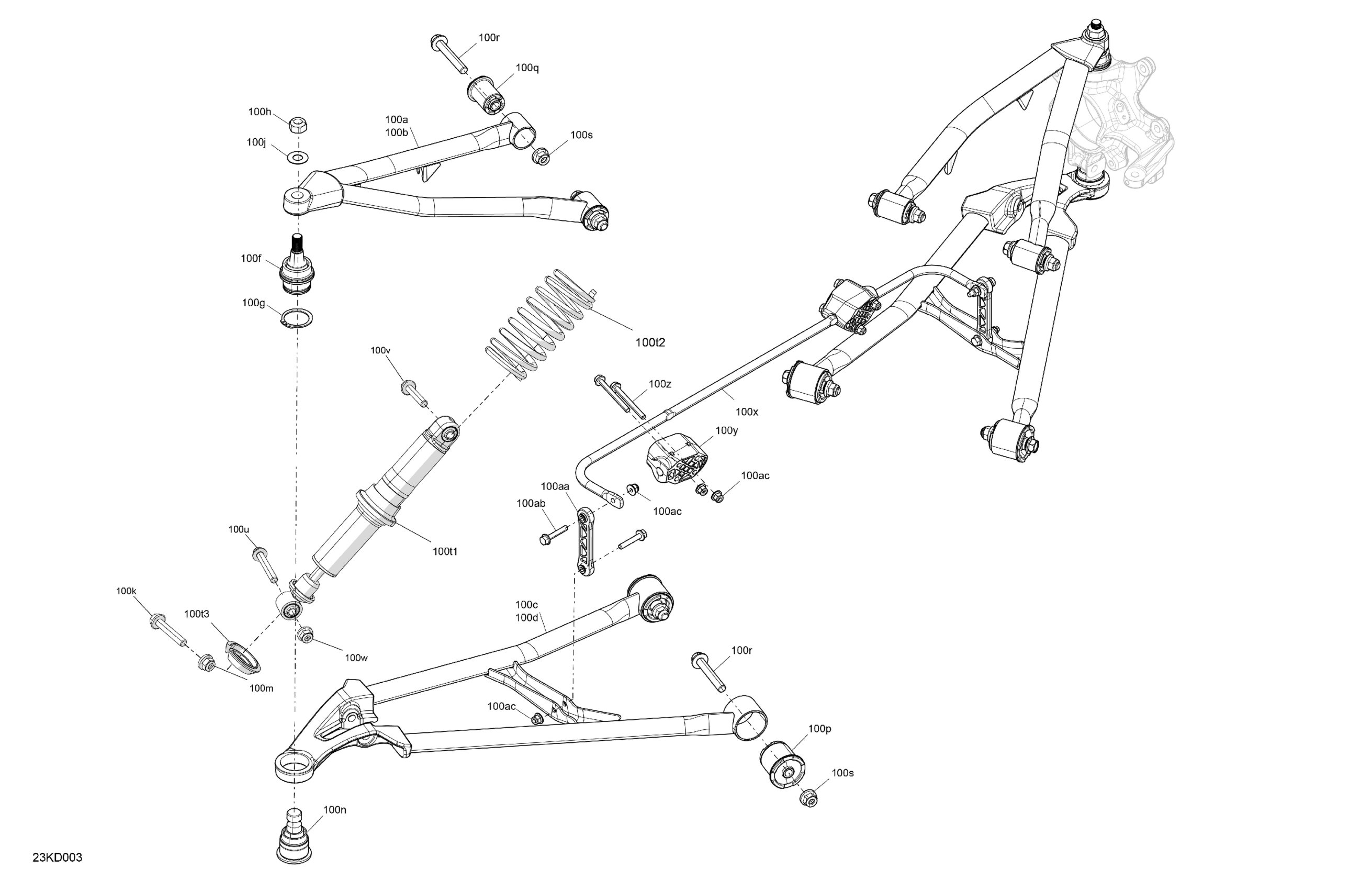

Can-Am RYKER SPORT 900 ACE - F5RA - SPORT - Deep Black, 2024 Suspension - Front Diagram

Description

Price

100a

LH Upper Arm

706202644

$158.99

100b

RH Upper Arm

706202645

$158.99

100c

LH Lower Suspension Arm

706204700

$158.99

100d

RH Lower Suspension Arm

706204701

$158.99

100f

Ball Joint

706203147

$53.99

100g

Circlip

293370035

$2.64

100h

Hex Elastic Nut M12 X 1.25

232521464

$2.11

100j

Hardened Washer

706200281

$2.85

100k

Hex. Flange Screw M10 X 55

207605554

$7.62

100m

Flange Elastic Nut M10

233201466

$3.17

100n

Ball Joint

706202508

$42.49

100p

Lower Suspension Arm Bushing

706203143

$13.76

100q

Upper Suspension Arm Bushing

706202549

$13.76

100r

Hex. Flange Screw M10 X 65

207606556

$3.91

100s

Flange Elastic Nut M10

233201466

$3.17

100t1

Front Shock

706002891

$444.99

100t2

Front Compression Spring

706204736

$64.49

100t3

Spring Stopper

503195241

$24.49

100u

Hex. Flange Screw M10 X 70

207607056

$4.29

100v

Hex. Flange Screw M10 X 55

207605554

$7.62

100w

Flange Elastic Nut M10

233201466

$3.17

100x

Sway Bar

706202710

$28.49

100y

Bushing

706204465

$9.21

100z

Hex. Flange Screw M6 X 60

207666044

$1.47

100aa

Sway Bar Double Joint Link

505072204

$21.99

100ab

Hex. Flange Screw M6 X 35

207663554

$2.11

100ac

Hex. Flange Elastic Nut M6

233261494

$1.58
