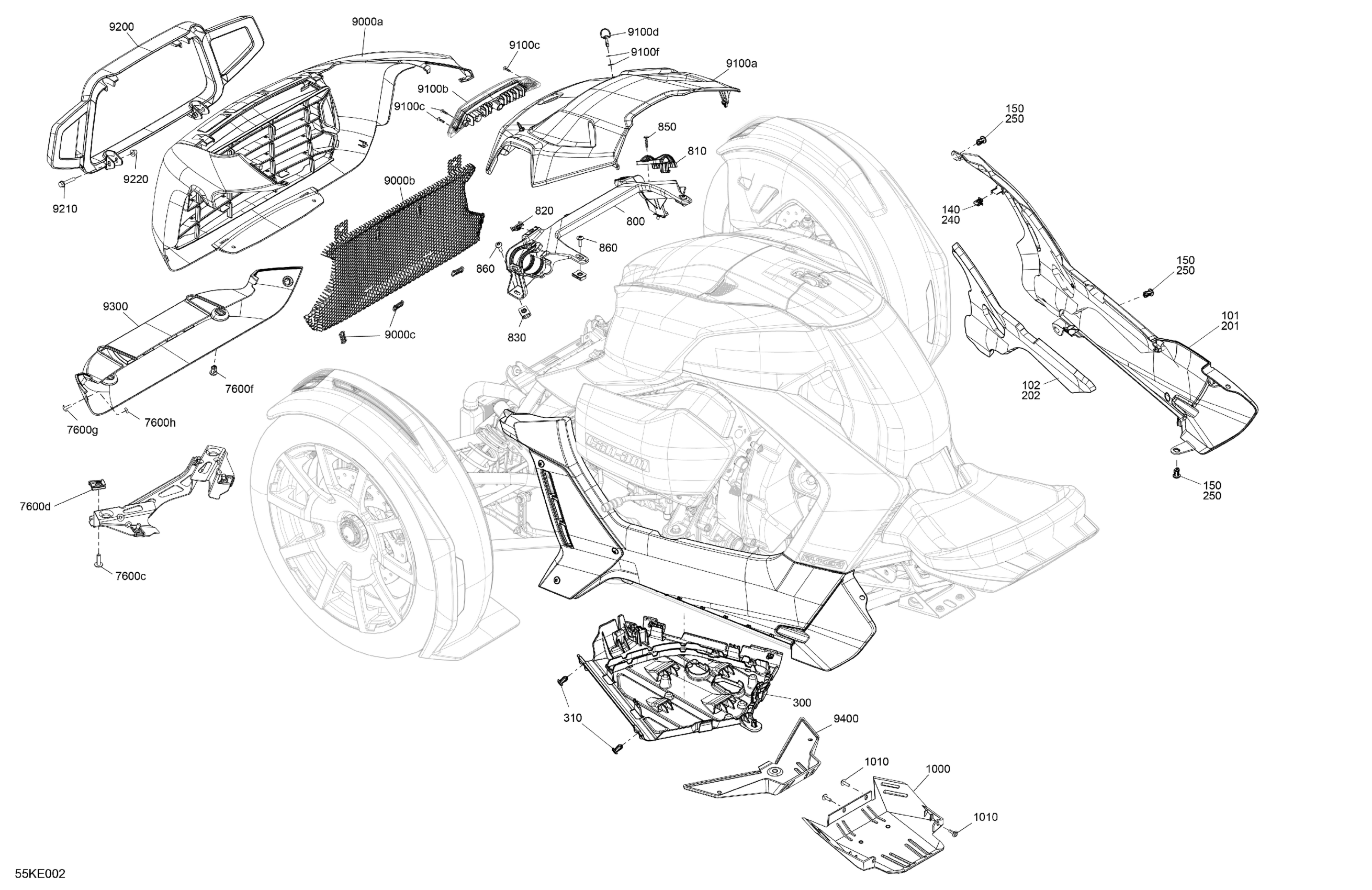

Can-Am RYKER - RALLY - 900 ACE - F3SA - Deep Black, 2025 Body - Lower Section Diagram

Description

Price

7600c

Torx Screw M6 X 20

250000722

$1.34

7600d

Panel Nut M6 X 1.0

250100208

$1.07

7600f

Tuflok Plastic Rivet

293150230

$1.21

7600g

Torx Truss Head Screw W Nylon M5X14

250001059

$2.06

7600h

Square Nut M5 X 0.8

232852411

$1.00

101

LH Rocker Panel Kit

219800524

$74.00

102

Acoustic Foam, LH rocker

705013940

$19.00

140

Edge Clip

517302785

$0.70

150

Tuflok Plastic Rivet

293150230

$1.21

201

RH Rocker Panel Kit

219800525

$72.00

202

Acoustic Foam

705013941

$19.00

240

Edge Clip

517302785

$0.70

250

Tuflok Plastic Rivet

293150230

$1.21

300

Skid Plate

705012364

$52.00

310

Tuflok Plastic Rivet

293150230

$1.21

800

Front Tank Support Shock Absorber

705016204

$34.00

810

Ext Tank Support Shock Absorber

706004531

$4.00

820

Specialized Nut

705016560

$5.00

830

Panel Nut M6 X 1.0

250100208

$1.07

850

Torx Screw Truss Head K50X20 T20

250000760

$1.74

860

Torx Screw M6 X 20

250000722

$1.34

1000

Rear Molded Skid Plate

705212406

$30.00

1010

Hex. Plastic Screw M4.8 X 16

243141630

$1.74

9000a

Deep Black, Front Fascia

705013345

$99.00

9000b

Protective Grille

705018411

$59.00

9000c

Flat Clip

705004838

$8.00

9100a

Hood

705016171

$81.00

9100b

Front Lower LED Light Ass'y

219400991

$330.00

9100c

Hex. Flange Screw K40 X 16

250001123

$2.06

9100d

Quarter Turn Fastener

705016561

$19.00

9100f

Washer

705016562

$1.00

9200

Central Bumper Trim

705016169

$160.00

9210

Hex. Flange Screw M6 X 35

207663554

$1.74

9220

Hex. Flange Elastic Nut M6

233261466

$1.66

9300

Lower Bumper Trim

705016170

$24.00

9400

Front Molded Skid Plate

705212405

$30.00
