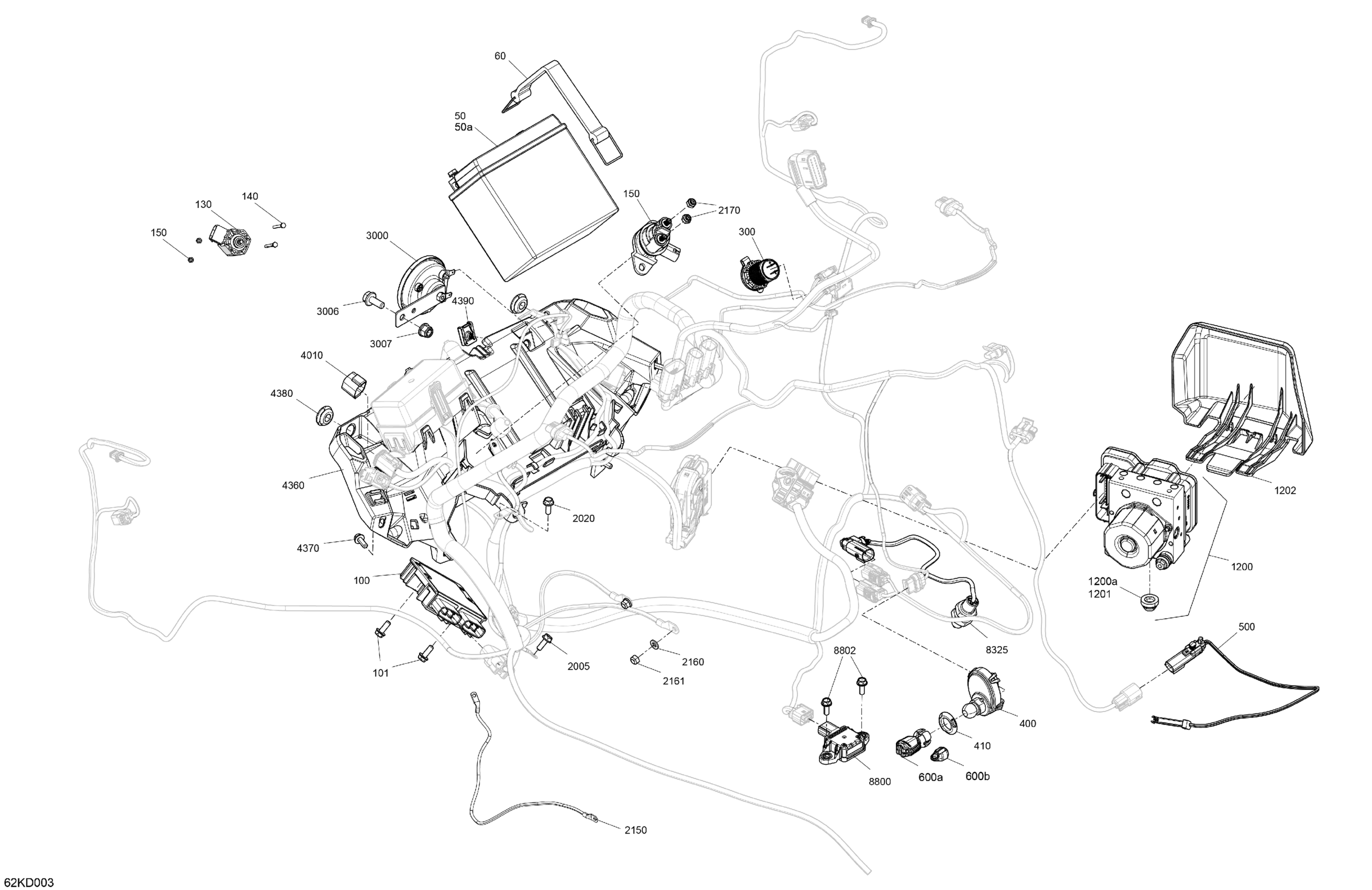

Can-Am RYKER RALLY 900 ACE - F3RA - RALLY - Deep Black, 2024 Electric - System Diagram

Description

Price

300

USB Outlet

219400510

$42.99

400

Terminal Dess One-Wire

515179240

$83.49

410

Specialized Nut

278004274

$3.28

500

Passenger Footpeg Position Sensor

705601717

$29.99

600a

Grey, Can-Am DESS Key

710009109

$63.49

600b

Receptacle

705013894

$7.87

Battery 12 Amperes | Includes 50 to 50a

219800472

$144.99

50a

Battery Bolt Kit

219800541

$7.62

Holding Strap

293850112

$18.49

100

Voltage Regulator

710006002

$174.99

101

Hex. Flange Screw M6 X 16

210261650

$1.67

150

Starter Relay

278003012

$42.49

1200

VCM Wet Prog & Grommet Module Kit | Includes 8h to 8h2

219800502

$1,209.99

1200a

Shock Damper

710003279

$10.49

1201

Shock Damper

710003279

$10.49

1202

VCM Module Protector

710005542

$8.49

2005

Hex. Flange Screw M6 X 16

210261640

$2.11

2020

Hex. Flange Screw M6 X 16

210261640

$2.11

2150

Starter Cable

710007463

$8.19

2160

Stainless Flat Washer M6

234061600

$0.33

2161

Elastic Stop Nut M6

232561434

$1.99

2170

Hex. Elastic Stop Nut M6

232561600

$1.15

3000

Horn

710006157

$35.99

3006

Hex. Flange Screw M8 X 20

207682046

$1.90

3007

Hex. Elastic Flange Nut M8

233281416

$1.48

4010

Connector Plug

710004904

$8.79

4360

Front Electronic Component Support

710007891

$22.49

4370

Hex. Flange Screw M6 X 16

210261650

$1.67

4380

Grommet

705003264

$4.09

4390

Panel Nut M6 X 1.0

250100208

$1.46

8325

Brake Switch

710008326

$49.99

8800

Yaw Rate Sensor

710005658

$179.99

8802

Hex. Flange Screw M6 X 16

210261650

$1.67

130

Steering Position Sensor

219800354

$269.99

140

Hex. Cap Screw

207144044

$1.01

150

Elastic Stop Nut M4

232541484

$0.74
