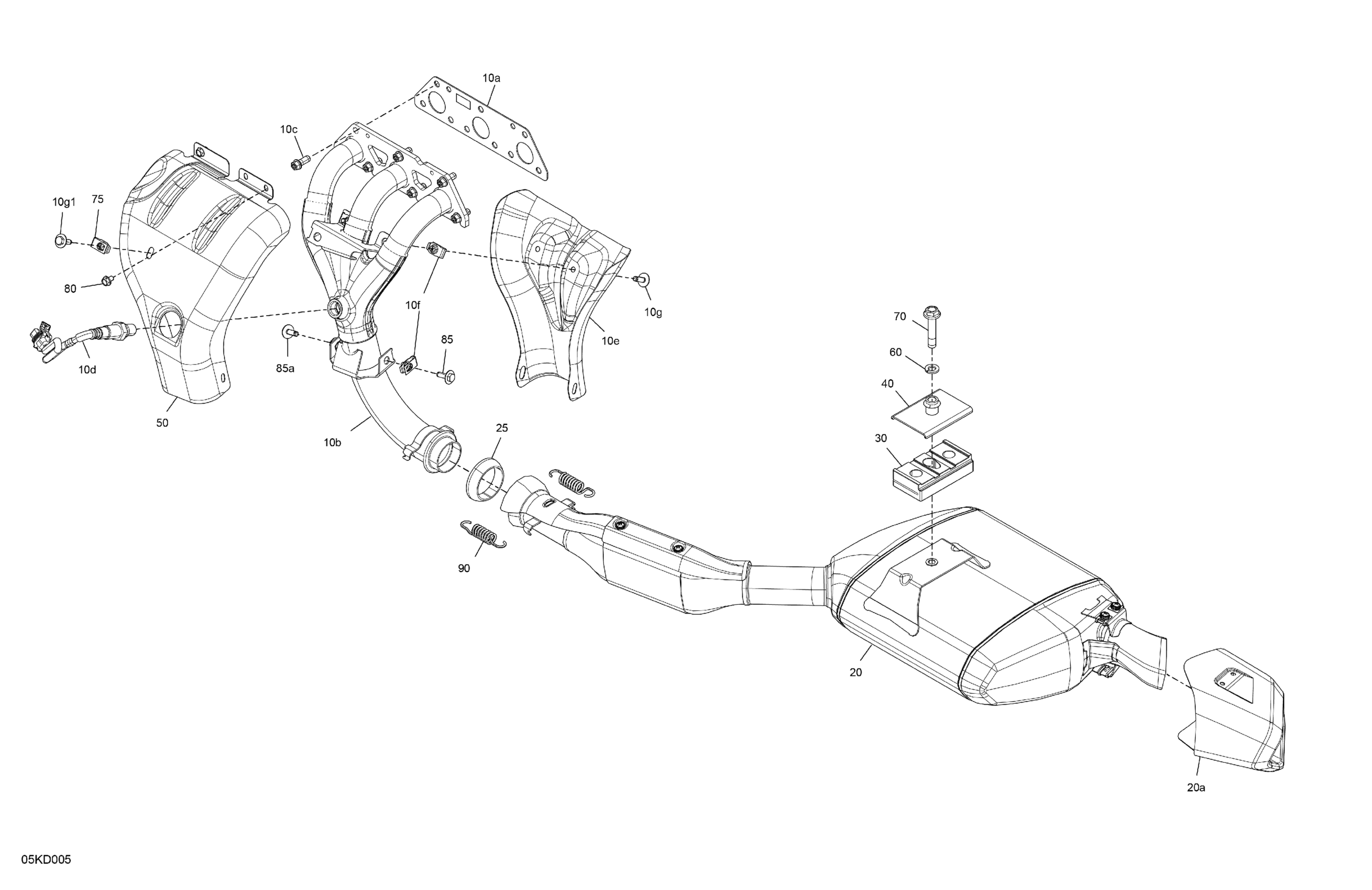

Can-Am RYKER RALLY 900 ACE - F3RA - RALLY - Deep Black, 2024 Engine - Exhaust Diagram

Description

Price

10a

Exhaust Manifold Gasket

707602002

$18.11

10b

Exhaust Manifold

707602001

$154.99

10c

Hex. Flange Screw M8 X 20

250001089

$0.76

10d

Oxygen Sensor

707600872

$144.99

10e

Deflector

707602267

$51.99

10f

Panel Nut M6 X 1.0

250100198

$2.11

10g

Hex Screw M6 X 20

250000965

$2.11

10g1

Hex Screw M6 X 20

250000965

$2.11

Exhaust Muffle Ass'y | Included 200b to 200b2

707603267

$1,786.49

20a

Exhaust Muffler Pipe

707603273

$656.99

Exhaust Gasket

707601033

$13.77

Vibration Damper

707603448

$15.28

Plate Fastener

707602413

$17.59

Deflector

707602312

$38.99

Helicoidal Lock Washer M10 | XT Models

234101601

$1.15

Hex. Flange Screw M10 X 50

250001079

$2.19

Panel Nut M6 X 1.0

250100198

$2.11

Hex. Forming Screw M6 X 10

210261050

$1.69

Hex Screw M6 X 20

250000965

$2.11

85a

Hex Screw M6 X 20

250000965

$2.11

Spring

514055198

$6.35
