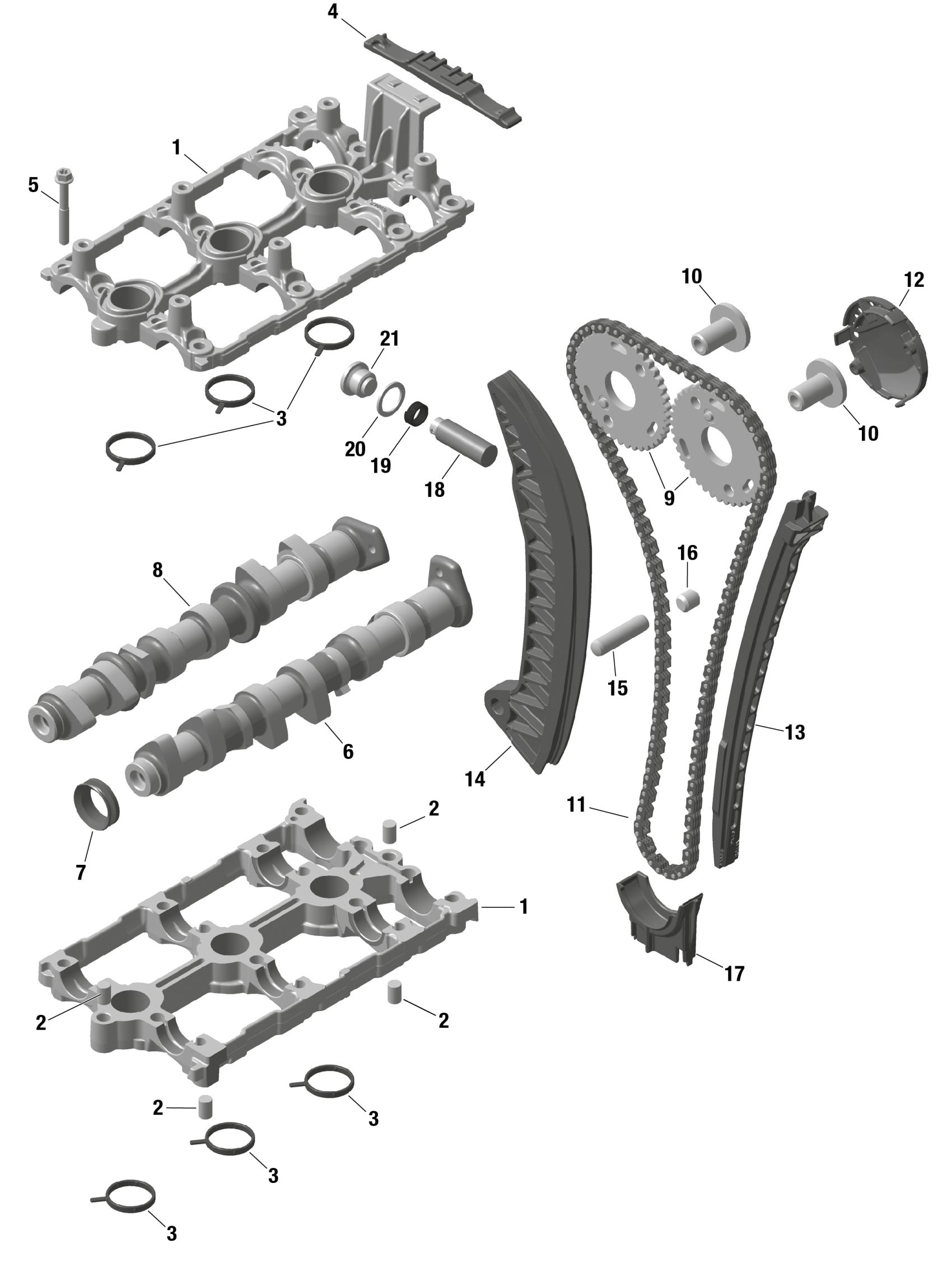

Can-Am RYKER 900 ACE - F2RA - STD - Deep Black, 2024 ROTAX - Valve Train Diagram

#

Description
Price

1

Camshaft Housing Ass'y

420911475

$217.49

2

Center Pin 8 X 12

420632010

$4.01

3

Camshaft Housing Gasket

420431760

$3.17

4

Chain Guide, Upper

420936500

$4.44

5

Torx Flange Screw M6 X 45

420440324

$0.98

6

Camshaft Exhaust

420820217

$179.99

7

V-Ring

420630127

$7.65

8

Camshaft Intake

420820200

$179.99

9

Camshaft Sprocket, 40 Teeth

420855120

$20.99

10

Flat Head Screw M14 X 1.5

420441360

$22.49

11

Camshaft Chain

420297086

$74.99

12

Cover

420460920

$5.39

13

Chain Guide

420936010

$11.60

14

Chain Tension Guide

420936020

$14.22

15

Needle Pin

420929937

$7.65

16

Threaded Pin

420840508

$18.49

17

Chain Guide

420936510

$7.65

18

Chain Tensioner

420236395

$47.49

19

Compression Spring

420238732

$5.89

20

Gasket Ring

420430624

$1.89

21

Plug Screw M16 X 1.5

420840594

$34.99
